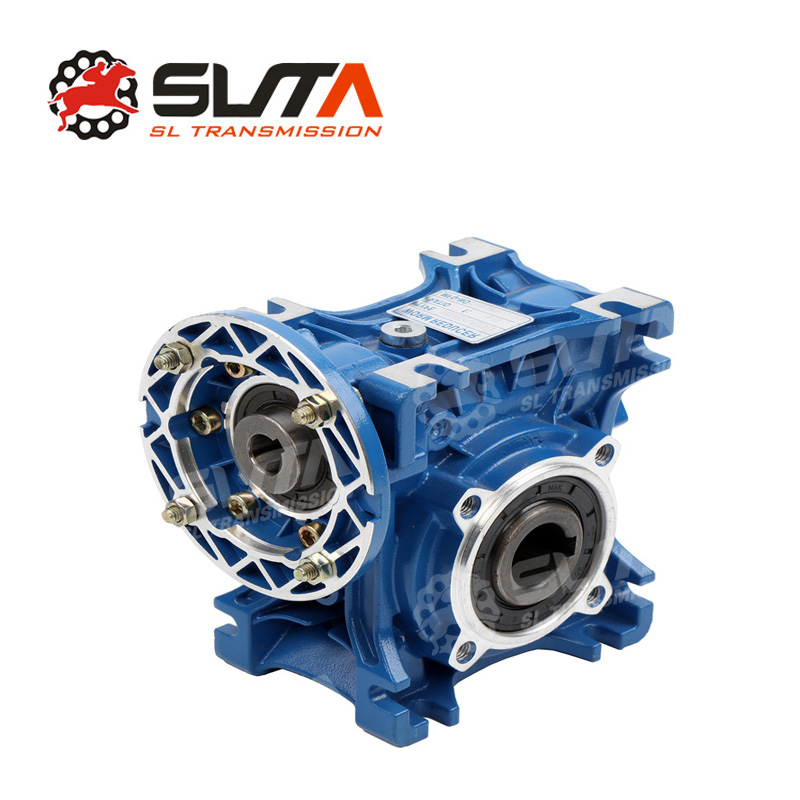

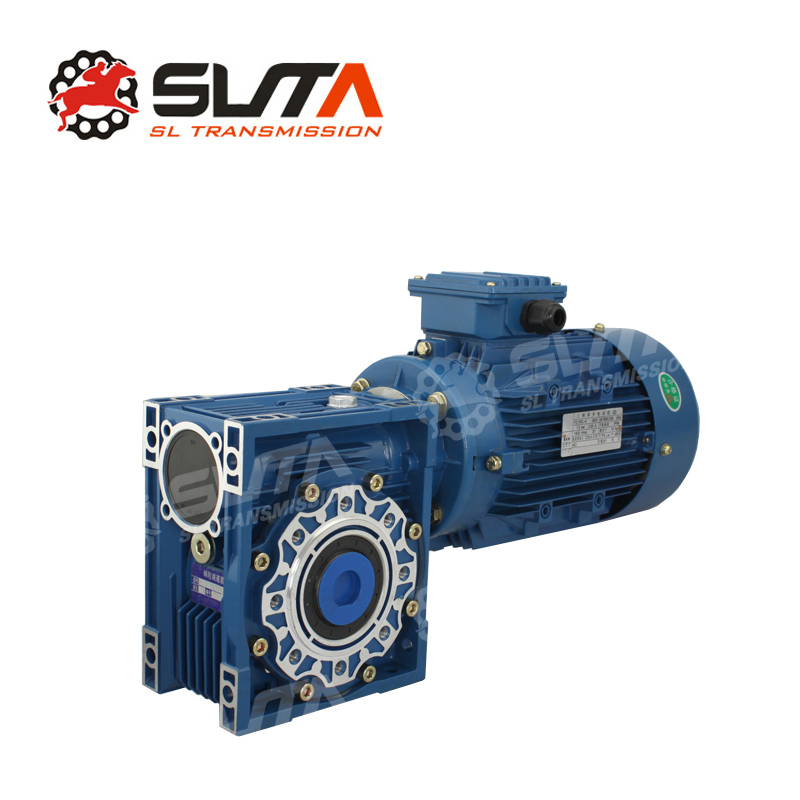

RV030 Aluminum Worm Gear Speed Reducer
This worm gear speed reducer features a durable aluminum housing for efficient heat dissipation. The RV030 model offers multiple output speeds, including 30rpm, 60rpm, and 80rpm.
Technical Specifications
Overview
RV030 Aluminum Worm Gear Reducer
The RV030 series is a precision-engineered worm gear speed reducer designed for versatile industrial applications. Featuring a lightweight yet durable aluminum alloy or cast iron housing, this unit ensures efficient heat dissipation, steady operation, and low noise levels. With a compact form factor, it provides high carrying capacity, making it an ideal choice for machinery in sectors such as chemical, food, beverage, and pharmaceutical production.
Performance Metrics
Key Performance Metrics
880 Nm
Max Output Torque
15 kW
Max Motor Power
68 dB
Max Noise Level
Technical Specifications
Technical Specifications
| Feature | Specification |
|---|---|
| Housing Material | ZL108 Al-alloy or HT200 cast iron |
| Worm Wheel Material | ZCuSn10Pb1 |
| Worm Gear Material | 40Cr |
| Efficiency | 50% - 65% |
| Backlash | ≤20 Arcmin |
| Vibration | ≤20μm |
Operational Limits
Temperature and Oil
- Max Temperature Rise: 50℃
- Max Oil Temperature Rise: 60℃
- Lubricant: GB Gn230-460 Synthetic or Mineral oil
Applications
- Industry Applications
- ChemicalPlatingCeramicLeatherPharmaceuticalFood processingBeverage
