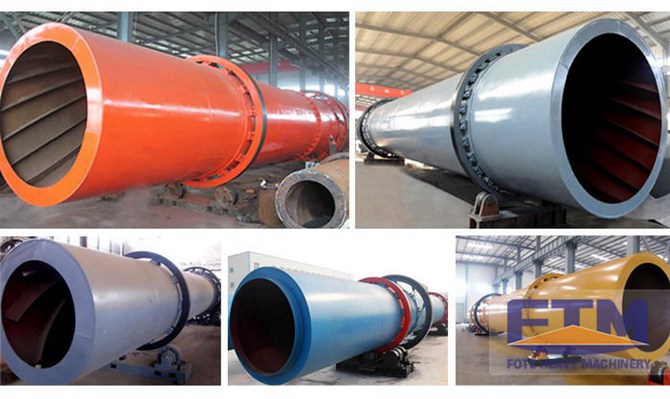

Rotary Scrap Metal Dryer
This rotary dryer efficiently processes scrap iron, iron oxide, and copper. The machine employs advanced drying technology with a three-sleeve structure for enhanced drying intensity and energy savings.
Technical Specifications
Product Overview
Rotary Scrap Metal Dryer
This industrial-grade rotary dryer is engineered for the efficient processing of scrap iron, iron oxide, copper scrap, and various bulk metal materials. By utilizing a three-sleeve structure and advanced heating technology, the unit achieves high-intensity drying while minimizing energy consumption. It is equipped with automated control systems and integrated safety devices to ensure consistent output quality and reliable operational safety.
Key Features
Advantages
- Highly automated operation with central electrical control
- Advanced three-sleeve structural design for better drying intensity
- Integrated fire and explosion-proof safety systems
- Low operating costs due to high-temperature rapid drying
- Produces dried material with minimal water content and no oxidation
Technical Specifications
Production Capacity
2.5 T/H
Min Capacity
36 T/H
Max Capacity
Detailed Models and Performance
| Model | Capacity (T/H) | Power (KW) | Weight (T) |
|---|---|---|---|
| Φ1.2×10m | 2.5 | 7.5 | 13.5 |
| Φ1.5×12m | 3.3-4.9 | 10 | 18.9 |
| Φ1.8×12m | 4-6 | 11 | 22.83 |
| Φ2.2×12m | 7-12 | 18.5 | 37.6 |
| Φ3×25m | 32-36 | 75 | 104.9 |
