Robotic Welding Workstation for Brackets and Pipes

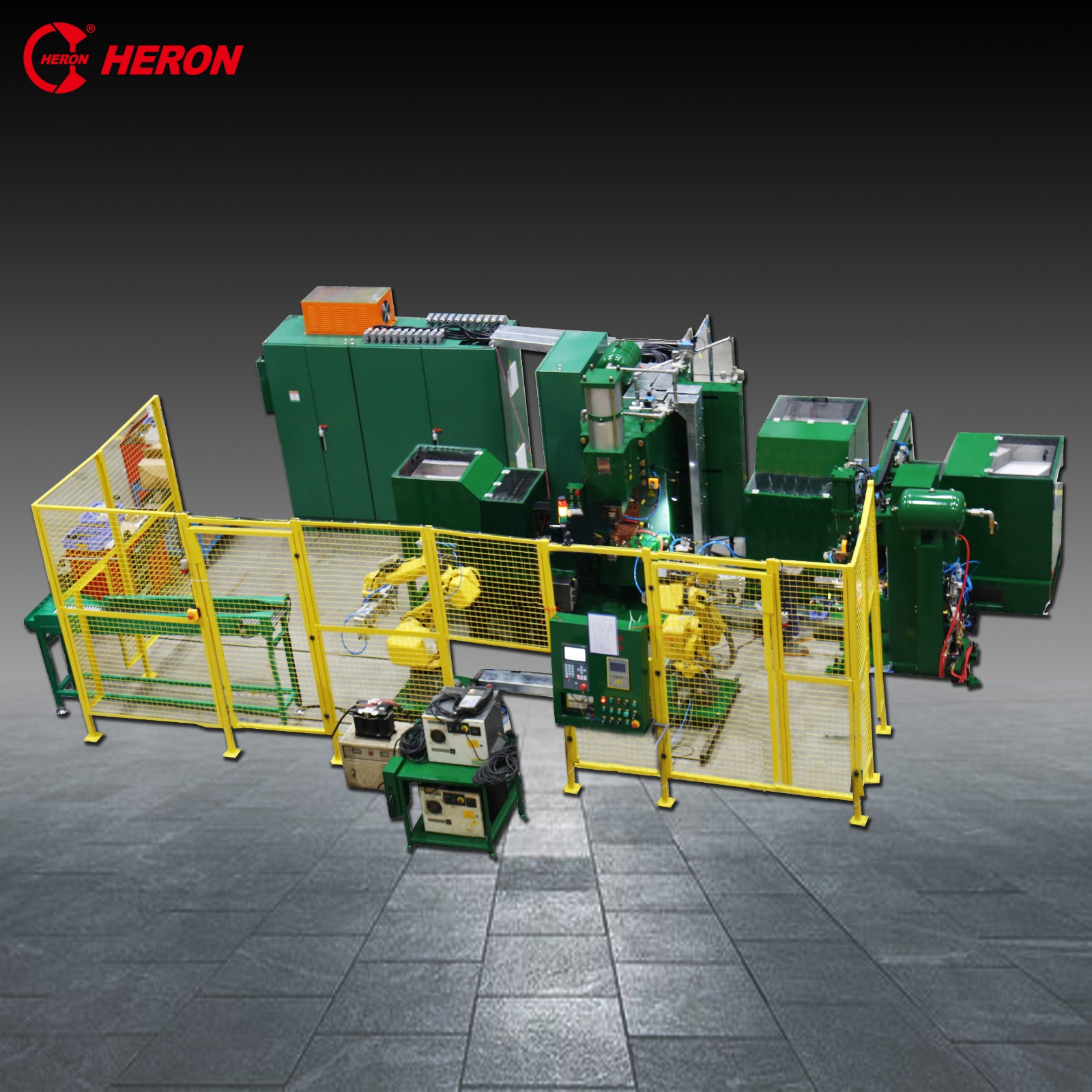

This automated press welding workstation is designed for manufacturing brackets and pipes. The robotic welding system integrates a press, welding equipment, and a robotic arm within a safety-enclosed work area.
Technical Specifications
Product Overview
Industrial Robotic Welding Workstation
This automated press welding workstation is specifically engineered for high-volume manufacturing of compressor components, including brackets and suck pipes. It integrates a robotic arm with precision welding equipment and material handling systems to ensure consistent, repeatable weld quality. The system is equipped with advanced PLC controls and comprehensive safety features such as light curtains to maintain high operational standards and operator protection.
Technical Specifications
Rated Capacity
165 KVA
Rated Capacity
35 KJ
Secondary Capacity
Electrical Requirements
- Power Supply: 380V/3Φ/50Hz
- Max. Primary Current: 100/150A
- Max. Short Circuit Current: 30/222KA
Operational Performance
24.5 KN
Max Working Pressure
Dimensions
- Physical Dimensions (LxWxH)
- 8589 x 3550 x 2922 mm
Features
- Key Capabilities
- Automated OperationPLC IntegratedLight Curtain SafetyInterlocked GuardingMaterial Handling System
