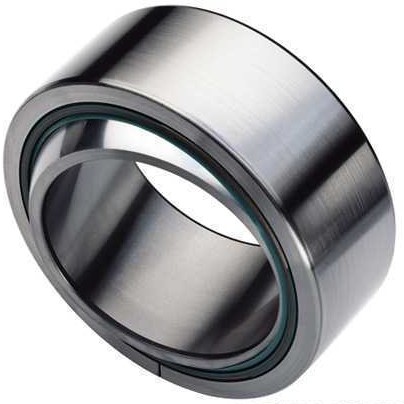

Radial Spherical Plain Bearing GEGZ 101 Es 114 Es 2RS
This radial spherical plain bearing is designed for applications requiring oscillating movements and heavy loads. The 2RS designation signifies seals on both sides for enhanced protection against contaminants.
Technical Specifications
Product Overview
Radial Spherical Plain Bearings
These radial spherical plain bearings, also known as oscillating bearings, feature a robust sliding structure designed to handle comparatively large loads. Engineered for applications requiring lower speeds of movement, they offer a reliable solution for machinery where misalignment is a factor. Constructed from heat-treated chrome steel, these bearings are built for durability and consistent performance in demanding industrial environments.
Technical Specifications
Material Composition
- Ball: Chrome Steel GCr15 (heat treated, phosphate-treated)
- Outer ring: Chrome Steel GCr15 (heat treated, phosphate-treated)
- Bearing Types
- Radial Spherical PlainSliding BearingRod End
Dimensional Data
Model Dimensions
| Model | Inner Diameter (mm) | Outside Diameter (mm) | Thickness (mm) | Weight (kg) |
|---|---|---|---|---|
| GEGZ101ES 2RS | 101.6 | 177.8 | 107.315 | 10.2 |
| GEGZ114ES 2RS | 114.3 | 196.85 | 119.126 | 13.6 |
Key Features
Performance Highlights
2 RS
Sealing
