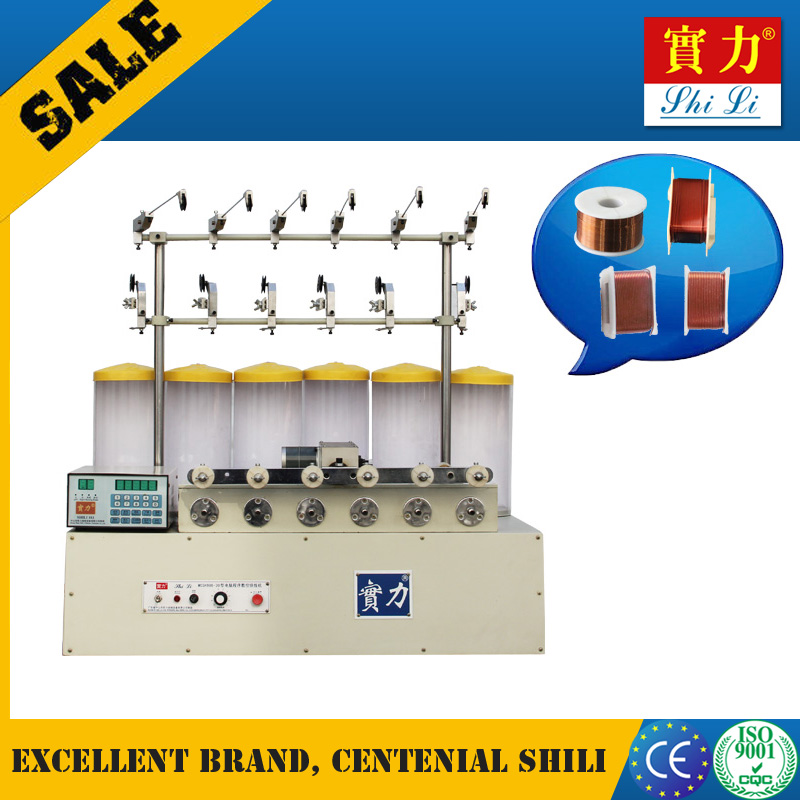

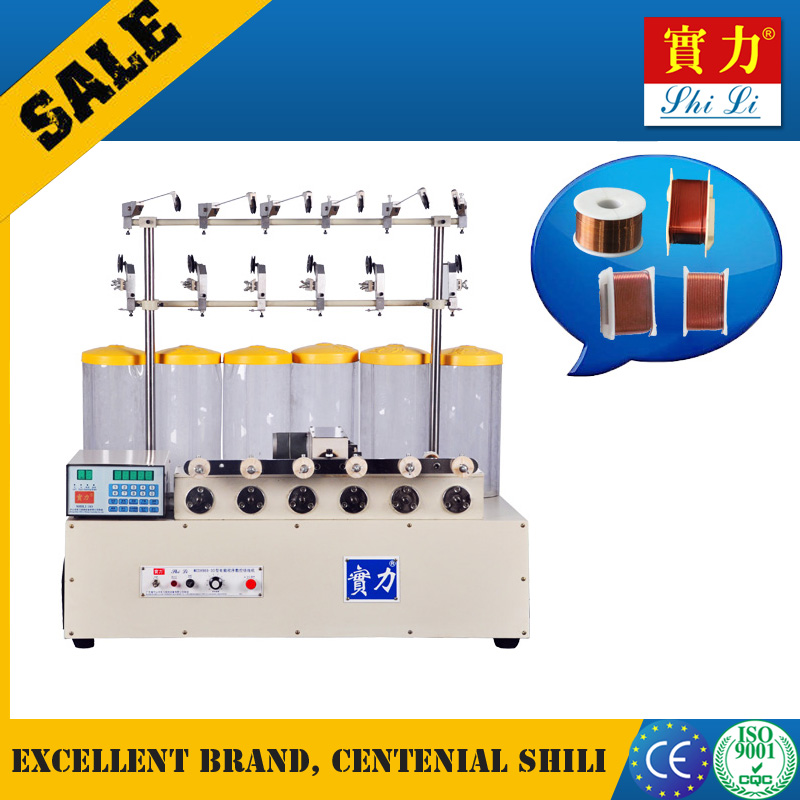

Precision Coil Winding Machine
This machine features automatic parking, fast braking and automatic winding functions. It selects high-quality steel and components for stable, reliable coil production.
Technical Specifications
Overview
Precision Coil Winding Solution
This precision coil winding machine is designed for high-efficiency production, utilizing an advanced 16-bit control chip for simple parameter setting and reliable operation. It features automatic parking, fast braking, and automatic winding functions, ensuring consistent quality for industrial applications. Built with high-quality steel and components, it offers a stable and durable solution for entry-level to mid-range manufacturing needs.
Key Features
Certifications & Standards
CEISO 9001CQC
- Primary Applications
- EE TransformerEI TransformerStepping MotorRelayAuto ABSSwitch Power Transformer
Performance Metrics
Performance Highlights
6
Spindle Count
4,300 RPM
Max Speed
370 W
Spindle Motor Power
Technical Specifications
Detailed Specifications
| Parameter | Value |
|---|---|
| Wire Size Range | 0.04-0.45 mm |
| Loop Diameter | 65 mm |
| Max Wire Spacing | 85 mm |
| Winder Width | 65 mm |
| Input Power | 220V 50HZ/60HZ |
Physical Dimensions
Machine Dimensions & Weight
- Machine Size: 930 x 510 x 40 mm
- Package Size: 430 x 1010 x 620 mm
- Net Weight: 60 kg
- Gross Weight: 84 kg
