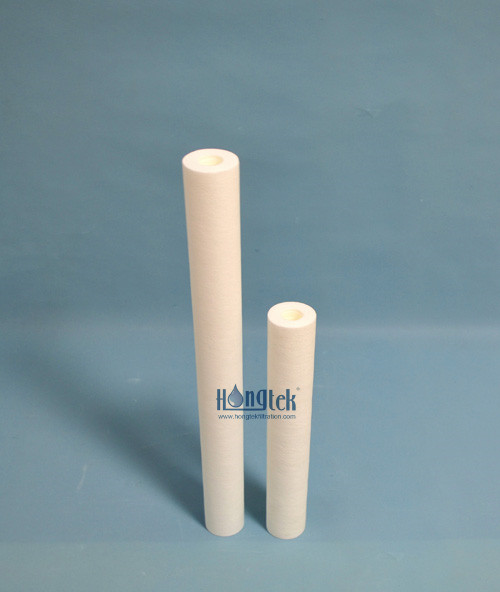

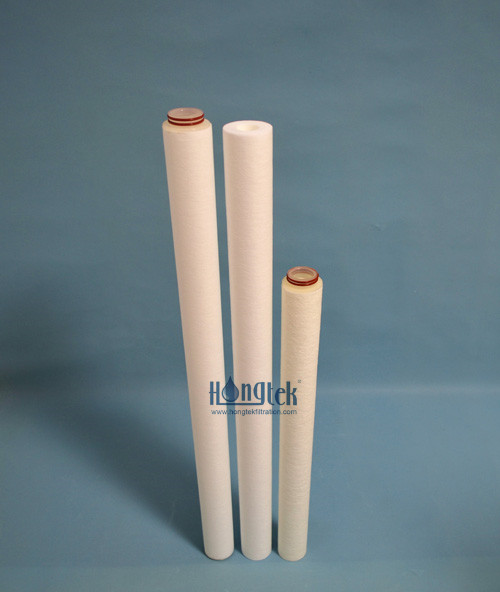

PP Melt Blown Filter Cartridge
PP melt blown filter cartridges offer high dirt holding capacity, low pressure drop, and good chemical resistance. These cartridges are widely used in liquid prefiltration industries for effectively filtering suspended particles, sediment, and other impurities.
Technical Specifications
Product Overview
High-Efficiency Melt Blown Filtration
These PP melt blown filter cartridges are designed for superior performance with high dirt holding capacity and low pressure drop. Constructed from 100% polypropylene, they feature a multi-layered, graded density structure that ensures consistent filtration and extended service life. Ideal for a wide range of industrial applications, these filters are free from fiber release and offer excellent chemical resistance.
Technical Specifications
Available Lengths
- 5"
- 9.75"
- 9.8"
- 10"
- 20"
- 30"
- 40"
- 50"
- 60"
- 70"
End Cap Options
DOE222/Flat (SOE)222/Fin (SOE)226/Flat (SOE)226/Fin (SOE)
- Filter Media
- Polypropylene
- Filtration Ratings
- 1µm5µm10µm20µm30µm50µm75µm100µm
- Gasket/O-ring Materials
- SiliconeEPDMVitonBuna
Dimensions
Size Specifications
| Dimension | Available Sizes |
|---|---|
| Inside Diameter | 28mm, 30mm |
| Outside Diameter | 60mm, 61mm, 63mm, 65mm |
Applications
Common Applications
- PCB industry
- Plating solution
- Food & Beverage
- Electronic Industry
- Petrochemical Process
- Chemicals and Solvents
- Pre RO/ID water filtration
- Industrial waste water treatment
