Portable CNC Plasma Cutting Machine
This portable CNC plasma cutting machine is designed for precision cutting of metal sheets. It features a CNC control system for automated operation and high accuracy.
Technical Specifications
Overview

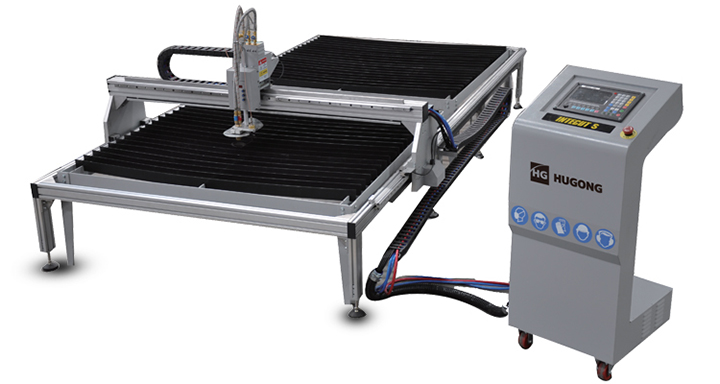

Precision Portable CNC Cutting
This portable CNC cutting machine is engineered for high-precision metal sheet fabrication. Featuring a robust frame and an intuitive control system, it supports both flame and plasma cutting processes to accommodate various industrial metalworking needs. Its compact, portable design ensures flexibility across different workshop environments while maintaining high cutting speeds and consistent accuracy.
Technical Specifications
- Power Supply
- 1PH, 220V, 50HZ (Custom voltage available)
- Input Capacity
- 180 W
- Positioning Speed
- 5000 mm/min
Cutting Capabilities
Cutting Modes
FlamePlasma
- Cutting Width
- 1500 mm
- Cutting Length Options
- 3000mm4000mmCustomizable
Flame Cutting Details
- Max Flame Cutting Thickness
- 80 mm
- Flame Cutting Speed
- 100-750 mm/min
- Supported Gases
- LPGPropaneAcetylene
- Max Oxygen Pressure
- 1.5 Mpa
Plasma Cutting Details
- Max Plasma Current
- 125 A
Control & Software

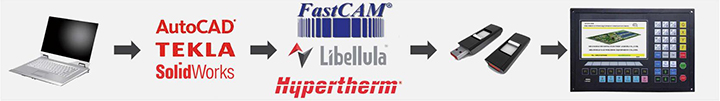

Compatible Nesting Software
- FastCAM
- Pronest

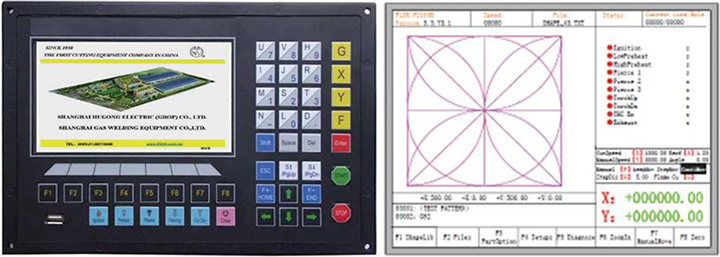

- Controller Display
- 7-inch LCD Colorful Display
