Portable 130A ARC Inverter Welder

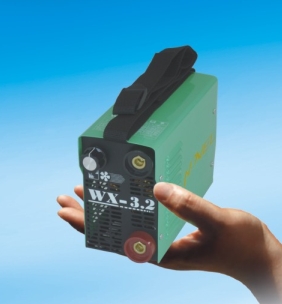

This portable ARC inverter welder features powerful IGBT technology. It is lightweight and easy to carry, with overload protection and a 100% rated duty cycle.
Technical Specifications
Product Overview
Compact Powerhouse for Precision Welding

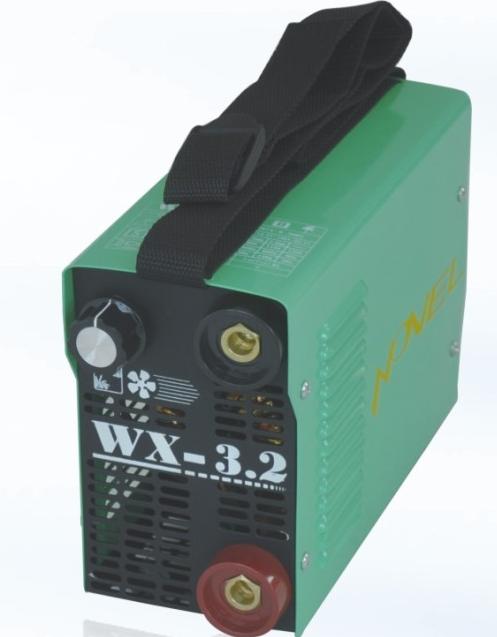

The WX-3.2 is an international patented portable inverter welder designed to be the smallest and lightest in its class. Featuring advanced IGBT switch technology, this unit ensures reliable, professional-grade performance for various welding applications. It is specifically optimized for 3.2mm electrodes and provides a high 100% duty cycle, making it a dependable choice for both professional users and DIY enthusiasts.
Performance Metrics
Key Performance Metrics
130 A
Max Welding Current
90 %
Efficiency
100 %
Duty Cycle
Technical Specifications
Electrical Parameters
| Parameter | Value |
|---|---|
| Input Voltage | 230V |
| Frequency | 50Hz |
| Rated Input Current | 15.3A |
| No-load Output Voltage | 100V |
| Output Voltage | 23.2V |
| Current Adjustment Range | 25-130A |
Physical Dimensions & Build
- Net Weight: 2.0kg
- Gross Weight: 3.2kg
- Overall Dimensions: 215 x 87 x 145mm
- Packing Dimensions: 280 x 170 x 200mm
- Insulation Class: H
Features
- Welding Capabilities
- 1.6-3.2mm ElectrodesIGBT TechnologyOver-current ProtectionOver-voltage Protection
