Plastic Modular Conveyor Belt
This plastic modular conveyor belt is suitable for various conveying applications. Its modular construction allows for easy assembly, disassembly, and maintenance.
Technical Specifications
Overview
High-Performance Modular Conveyor Belt
The HS-1000B is a versatile plastic modular conveyor belt engineered for demanding industrial environments, including food processing and non-food manufacturing. Its modular design facilitates easy assembly, maintenance, and cleaning, significantly reducing downtime. Built with food-grade materials and featuring an open grid structure for efficient drainage and airflow, it ensures hygiene and reliability in critical applications.
Physical Dimensions
- Pitch
- 19 mm
- Belt Thickness
- 8.5 mm
- Minimum Width
- 77 mm
- Rod Diameter
- 4.5 mm
- Open Area
- 27 %
Technical Specifications
Available Colors
WhiteBlueGrayNatureDark-brown
Maximum Load Capacity
1.2 tons/m²
Max Load
Key Features
- Flight available
- Easy to clean
- Maintenance free
- Floating in water

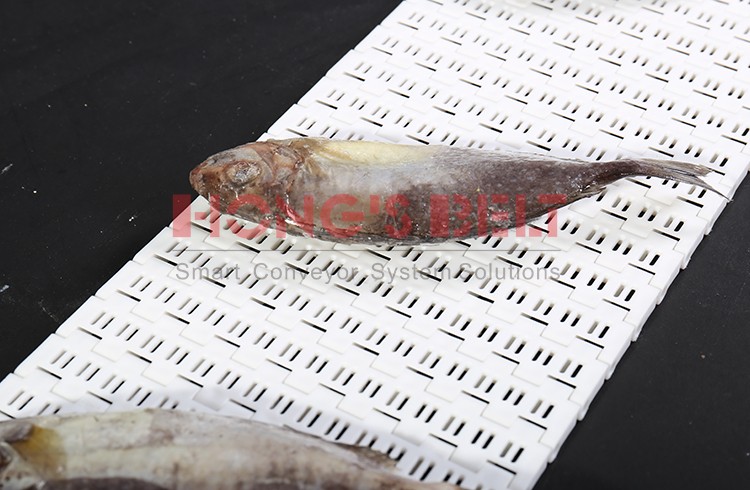

- Food defrosting capable

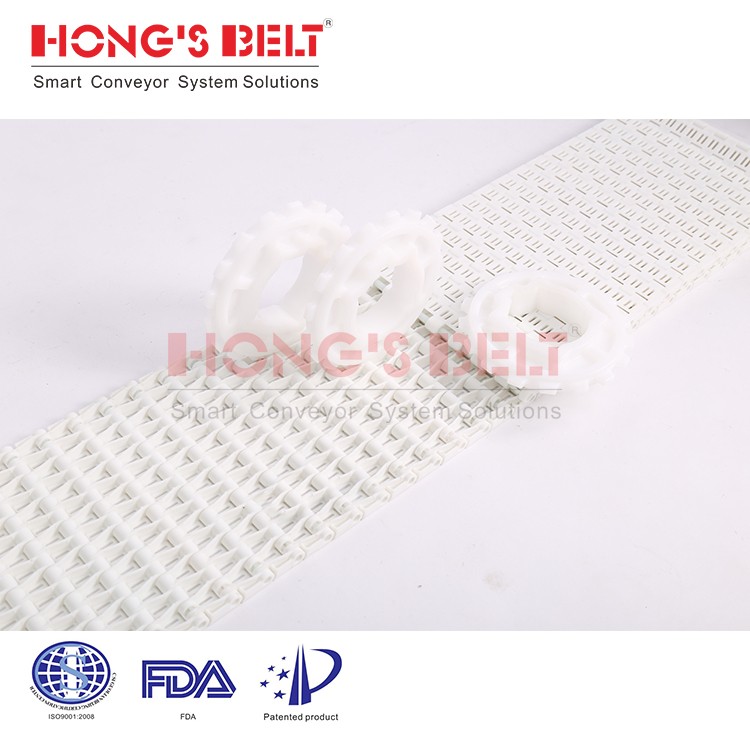

Sprocket Configuration
| Feature | Details |
|---|---|
| Sprocket Sizes | 7T, 10T, 17T, 24T |
| Bore Types | Square bore & Round bore |
- Available Materials
- PPPOMPEPA
- Working Temperature
- -40°C to 260°C
- Certifications
- FDAEU
Applications
Suitable Industries
- Food Industry (Meat, Poultry, Seafood, Bakery, Snacks, Produce)
- Automotive
- Tire Manufacturing
- Packaging
- Printing/Paper
- Postal
- Corrugated Cardboard
- Can Manufacturing
- PET Manufacturing
- Textile
