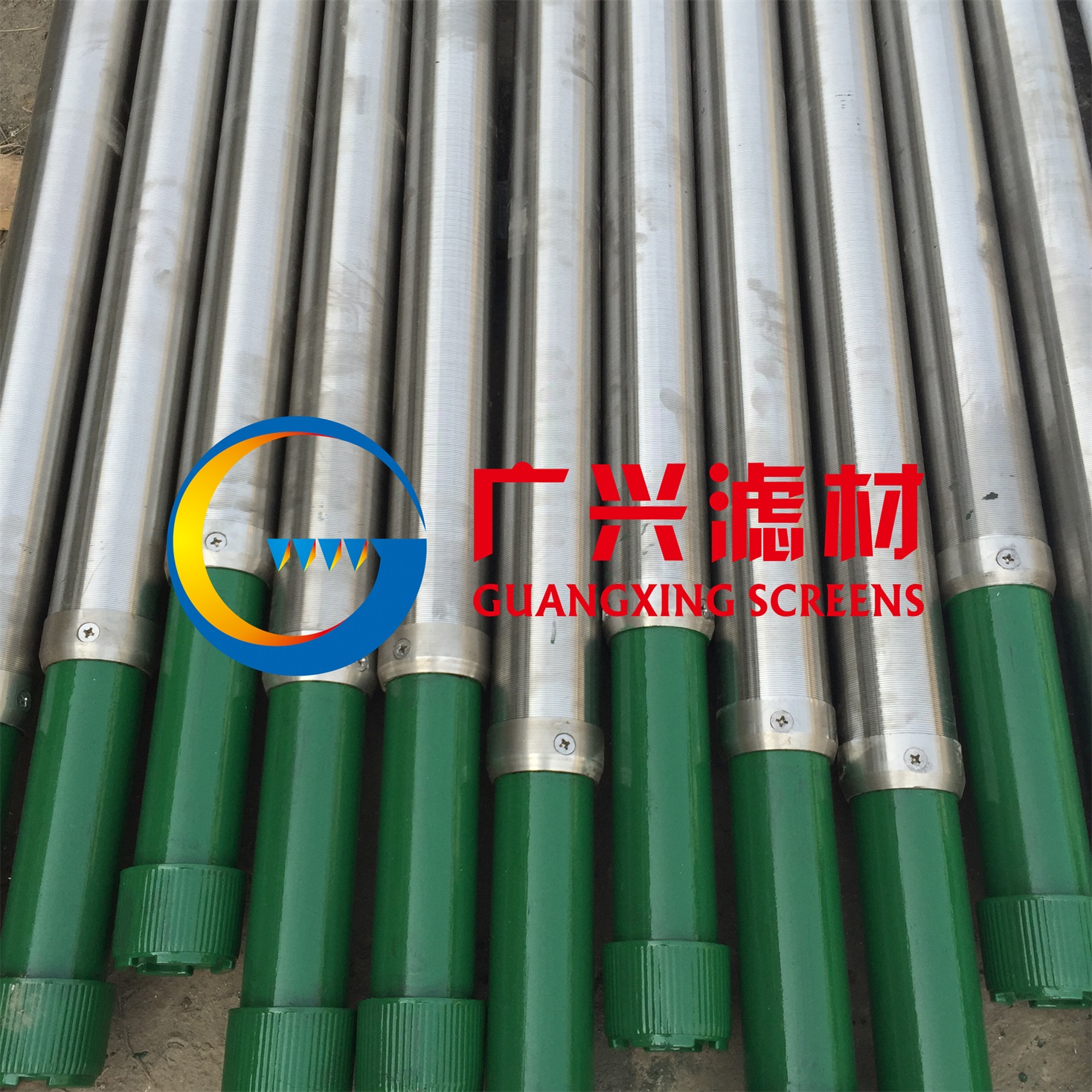

Pipe Based Well Screen
Pipe based well screens consist of a base pipe, an all-welded wedge wire screen, and a supporting rod. The base pipe is perforated or slotted API casing pipe made of stainless or carbon steel.
Technical Specifications
Product Overview
Pipe Based Well Screen Overview
Pipe based well screens are engineered for high-performance filtration in demanding well environments, consisting of a perforated or slotted API casing base pipe integrated with an all-welded wedge wire screen jacket. This construction provides exceptional structural integrity, allowing the screen to resist strata pressure while maintaining precise slot openings for effective sand control. Designed for versatility, these screens support customizable material options and offer high filtering accuracy to maximize oil, gas, and water production efficiency.
Technical Specifications
Components
- Perforated or slotted API casing base pipe
- All-welded wedge wire screen jacket
- Supporting rods
- Base Pipe Material
- Stainless SteelCarbon SteelAPI 5CT Casing
- Filtering Accuracy
- High precision via vee-opening wedge wire design
Performance Features
Strength Retention
Operational Advantages
- Superior sand control reliability
- Resistance to strata pressure
- Enhanced oil and gas production
- Deformation resistance
