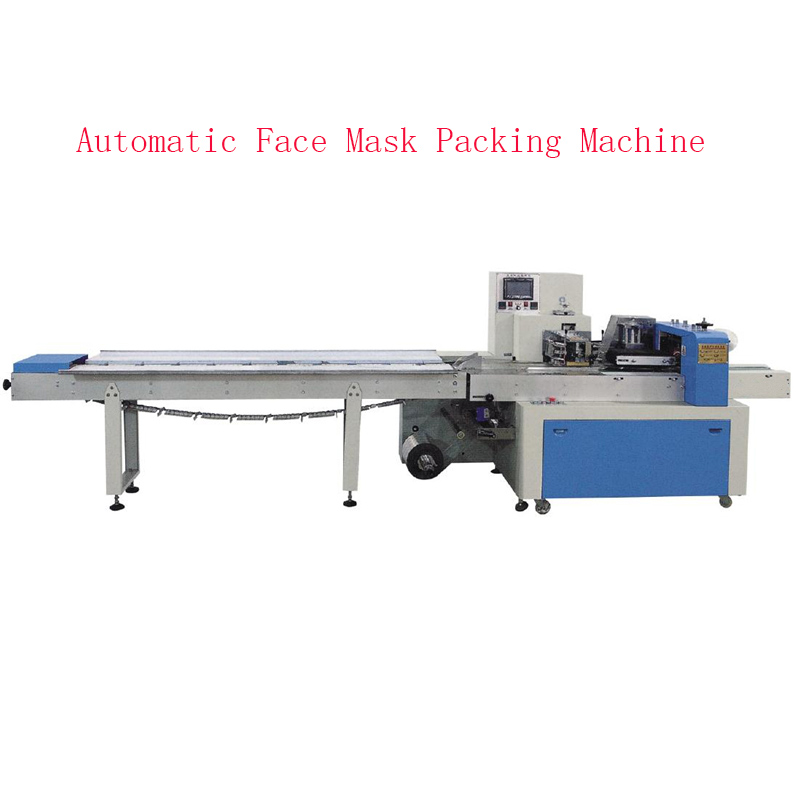

Pillow Pack Machine for Face Masks
This automatic machine is designed for high-speed pillow-type packaging of face masks. It features adjustable bag length, automatic film splicing, and a PLC touchscreen interface for easy operation.
Technical Specifications
Overview
High-Efficiency Pillow Packing Solution
This automatic pillow packing machine is specifically engineered for the efficient and hygienic packaging of face masks. It features automated control of the production process, ensuring consistent sealing quality and high throughput. With its robust construction and compliance with international standards, it is an ideal solution for high-volume manufacturing environments.
Performance Metrics
Packing Speed
220 pcs/min
Max Packing Speed
- Machine Dimensions
- 4600 x 850 x 1500 mm
- Machine Weight
- 650 kg
Packaging Capabilities
Max Finished Bag Dimensions
| Dimension | Value | Unit |
|---|---|---|
| Length | 330 | mm |
| Width | 150 | mm |
| Height | 50 | mm |
- Minimum Material Specifications
- Length 50mm, Width 10mm, Height 5mm
- Compatible Packaging Materials
- OPP Heat Sealing FilmCompound FilmCoated PaperAluminum Foil FilmAluminum-Plastic Composite Film
Technical Specifications
- Power Requirements
- AC220V, 2.7KW
- Compressed Air
- 0.5-0.7 Mpa (Consumption >0.36 m3/h)
- Motor Frequency Modulation
- 50 Hz
Compliance & Quality
Certifications & Standards
GMP StandardISO 9001:2000EU CE Certified
Warranty Terms
- One-year machine warranty
- Three-year warranty on major appliances
- Lifetime service (parts at cost)
