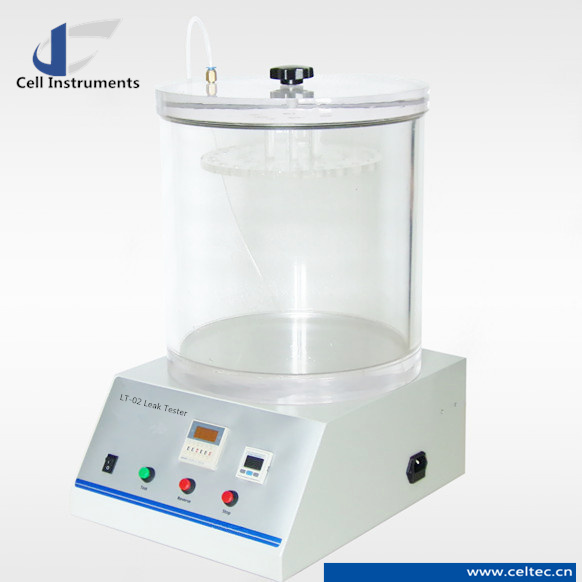

Package Leak Detector
This package leak detector identifies leaks in sealed packages using the bubble emission method. The detector is widely used in the food, beverage, pharmaceutical, and other industries.
Technical Specifications
Overview
Automated Package Integrity Testing
This advanced leak detector utilizes the bubble method to ensure the seal integrity of flexible packaging, containers, and pipes. By creating a controlled vacuum environment, it allows operators to quickly identify microscopic leaks in food, pharmaceutical, and electronic packaging. The system is fully automated with touch-screen controls, eliminating the need for external vacuum pumps and providing repeatable, reliable test results.
Technical Performance
Vacuum Range
-90 KPa
Max Vacuum
-13 PSI
Max Vacuum
- Operating Gas Pressure
- 0.7 MPa
- Gas Source
- Compressed air
Key Features
Core Capabilities
- Fully automatic leak test process

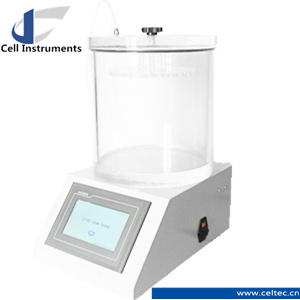

- Touch screen interface for easy operation
- Digital vacuum degree and test time input
- Automatic data saving and parameter storage
- Automatic vacuum maintenance and air back-flushing
- No external vacuum pump required
- Construction
- Extra-thick Perspex vacuum chamber
Physical Specifications
- Standard Chamber Dimensions
- Φ270 mm x 210 mm (H)
- Customization
- Yes
Compliance
- Standards Compliance
- ASTM D3078GB/T 15171
Applications
Suitable Industries
Food & BeveragePharmaceuticalDaily ChemicalElectricalElectronic
