Oxygen Transmission Rate Analyzer
This analyzer is designed for testing oxygen permeation of packaging film materials. It is calibrated using standard gas and NIST traceable films.
Technical Specifications
Overview
Precision Oxygen Permeation Analysis

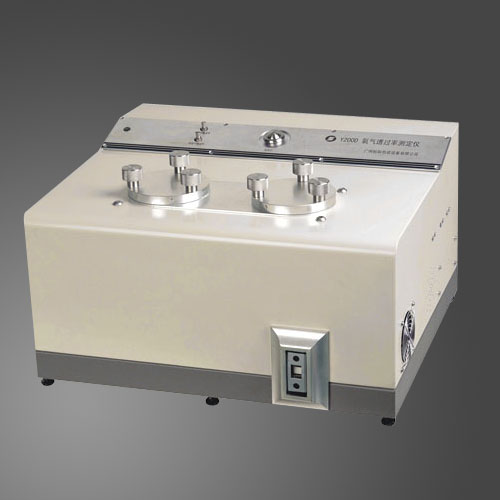

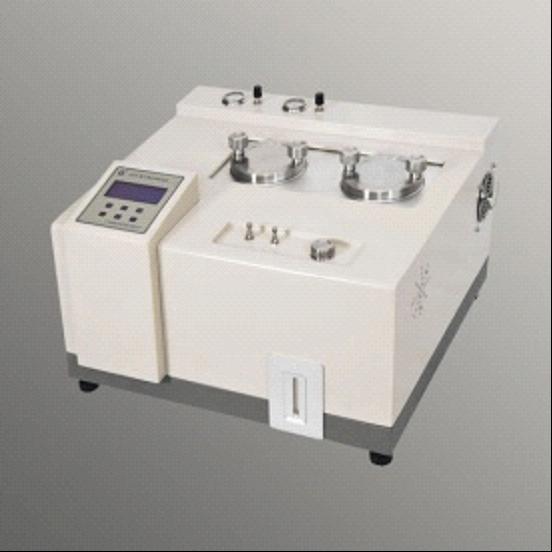

The Y200D Oxygen Transmission Rate Analyzer is a modular, high-precision instrument engineered for trace oxygen permeation testing of packaging barrier films. By simulating actual climatic conditions through computer-controlled temperature and humidity, it is ideal for both research and quality control of current and newly formulated packaging materials. The system ensures reliable analysis data through versatile calibration options, including standard gas and NIST-traceable films.
Performance
Key Performance Indicators
16,500 cm3/m2/day
Max OTR
0.001 cm3/m2/day
Precision
- Measurement Range
- 16500 cm3/m2/day
- Measurement Precision
- 0.001 cm3/m2/day
Environmental Control
- Temperature Control Range
- 5-50 °C
- Humidity Range
- Dry (0% RH) to 100% RH (Wet: 5-95% RH)
Technical Specifications
- Supply Pressure
- 25-45 PSI (Regulated Oxygen & Nitrogen)
- International Standards Compliance
- GB/T 19789ASTM D3985ASTM F1307ASTM F1927ISO 15105-2
