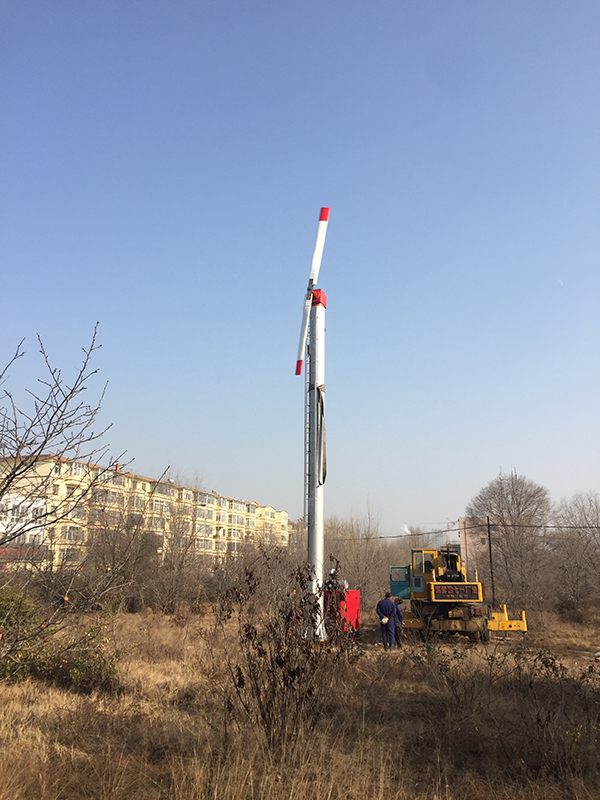

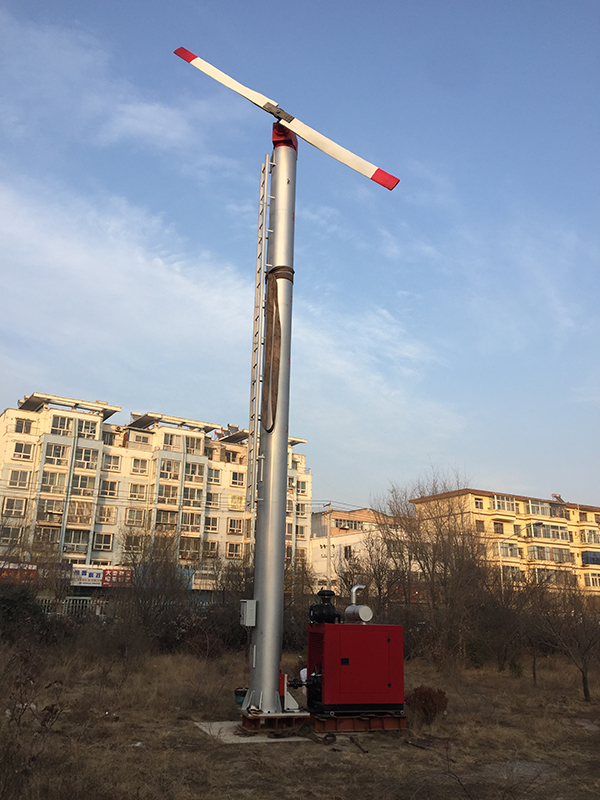

Orchard Wind Turbine for Frost Protection
This orchard wind turbine is designed to protect crops from frost. It circulates warmer air to prevent frost damage in orchards and vineyards.
Technical Specifications
Product Overview
Frost Protection Solution
The FSJ-85 Orchard Wind Turbine is a robust agricultural system designed to mitigate frost and low-temperature damage in orchards. By mixing warmer air from higher altitudes with cooler surface air, it effectively raises ground-level temperatures to prevent crop damage during early spring and late autumn. This diesel-powered unit is engineered for durability and is suitable for flat lands, slopes, and terraced terrain.
Performance Metrics
Engine Power
85 kW
Engine Power
Effective Coverage
4 Hectare
Area
40,000 m2
Area
Technical Specifications
- Model
- FSJ-85
- Power Source
- Diesel engine
- Min. Diesel Consumption
- 20 litre/h
Fan and Gearbox Specs
Fan Blade Details
| Parameter | Value |
|---|---|
| Quantity of fan blades | 2 pcs |
| Covering diameter of blade | 5800±5.0 mm |
| Rated turning speed of fan blade | 200～530 r/min |
- Top Gear Box Speed
- 0.16 r/min
Operational Dimensions
- Center Height
- 10906 mm
- Covering Distance
- 95～100 m
Logistics
Container Packing Capacity
- 4 sets fans packed in 1x40' standard container
- 4 sets diesel engines packed in 1x20' standard container
