Nylon Roller with Steel Bolt Assembly
This nylon roller is constructed with a steel 1045 bolt and is available with single or double bearings. It features V, O, Y, and U-groove options and is treated with zinc, color zinc, or galvanization, supporting a loading capacity of 450 kgs.
Technical Specifications
Product Overview
Nylon Roller with Steel Bolt Assembly
This durable nylon roller assembly is engineered for smooth, quiet operation in sliding gate and door applications. Constructed from high-quality nylon, it offers excellent wear resistance and low friction performance. The assembly includes a robust steel bolt, washers, and nut, providing secure mounting and reliable load-bearing capabilities for industrial hardware needs.

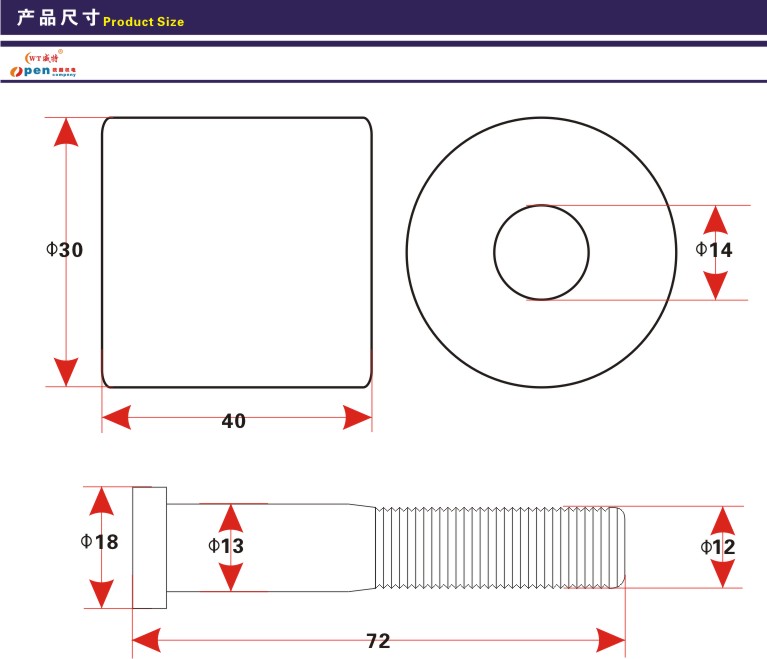

Technical Dimensions
Roller Dimensions
40 mm
Width
30 mm
Height
- Bolt Overall Length
- 72 mm
- Bolt Thread Diameter
- 12 mm
- Bolt Head Diameter
- 18 mm
- Washer Outer Diameter
- 14 mm
Logistics & Packaging
- Product Code
- 2116026
- Quantity per Box
- 20 pcs
- Country of Origin
- China
Application & Features
Primary Applications
- Sliding gate systems
- Sliding door systems
- Industrial hardware
- Key Features
- Quiet OperationLow FrictionWear ResistantDurable Nylon
