Neon Lighting Transformer Power Supply
This neon lighting transformer provides the necessary power to operate neon lights. It is designed for an input of 220V at 50/60Hz, supporting neon tubes within a 2 to 6 meter range.
Technical Specifications
Overview
Professional Neon Power Solution

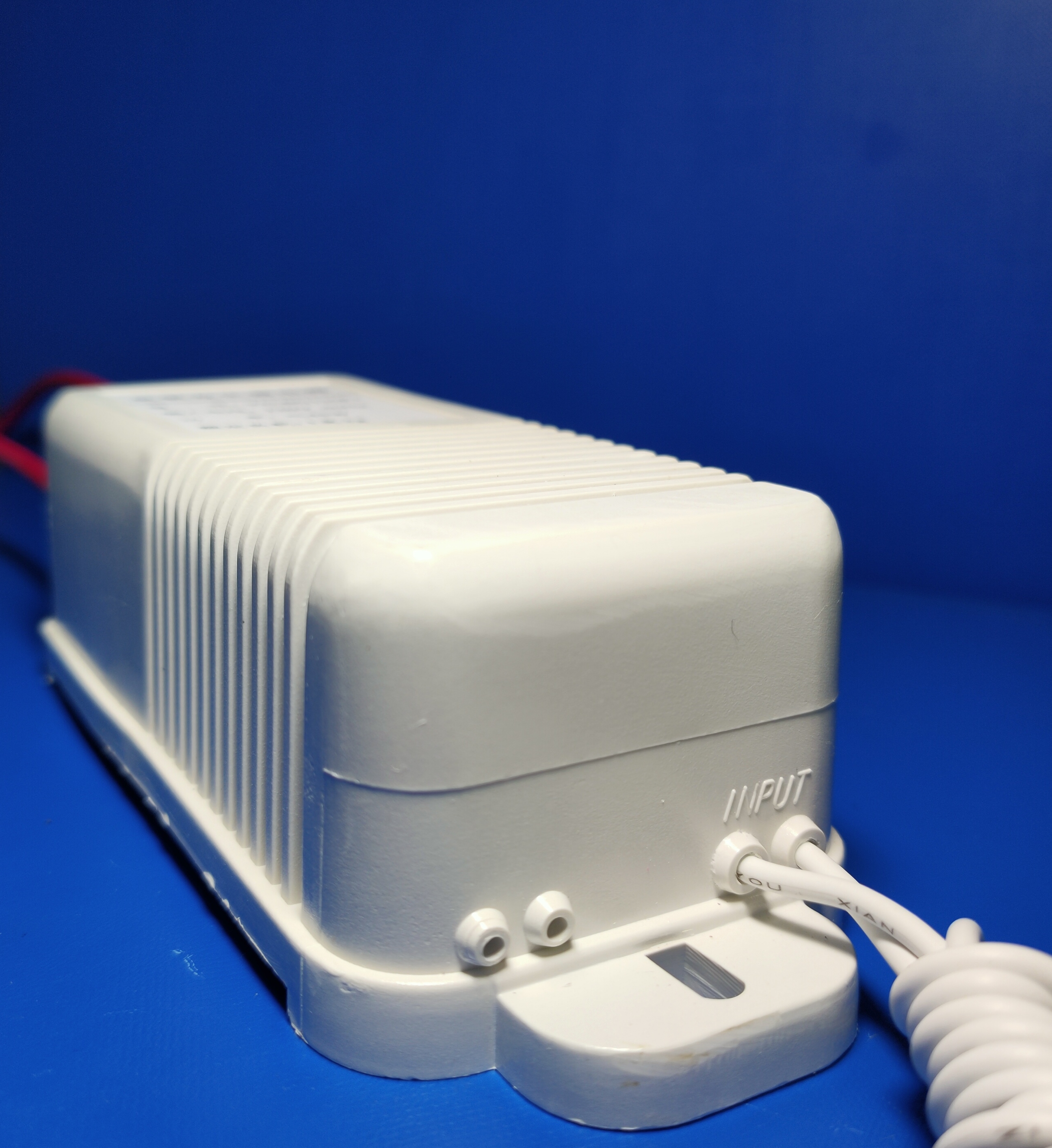

This high-performance neon transformer power supply is engineered to provide reliable voltage conversion for professional neon lighting installations. Featuring a compact, enclosed design with integrated ribbed housing, it ensures efficient heat dissipation for stable, long-term operation. It is an ideal choice for powering neon tubes in various commercial and creative lighting applications.
Technical Specifications
- Input Voltage
- 220 V
- Frequency
- 50/60Hz
- Max Power Rating
- 60 W
- Load Range
- 2 to 6 meters (φ1.2 neon tubes)
Physical Dimensions
Unit Dimensions
153 mm
Length
58 mm
Width
43 mm
Height
Wiring Specifications
| Connection | Length | Diameter |
|---|---|---|
| Input Wire | 300mm | 2.4mm |
| Output Wire | 200mm | 4mm |
Features
- Design Features
- Compact DesignEnclosed HousingRibbed Heat DissipationEasy Connection
