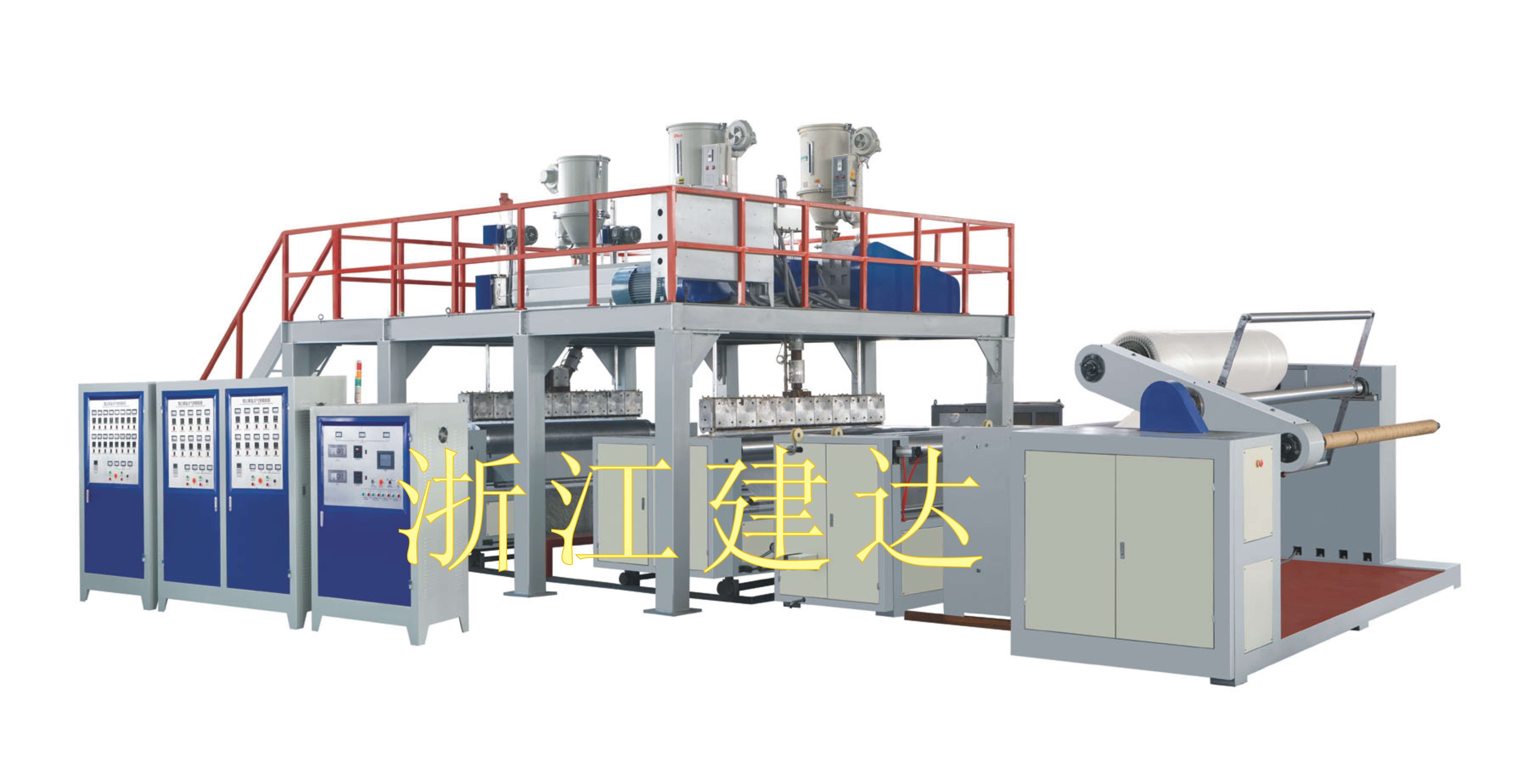

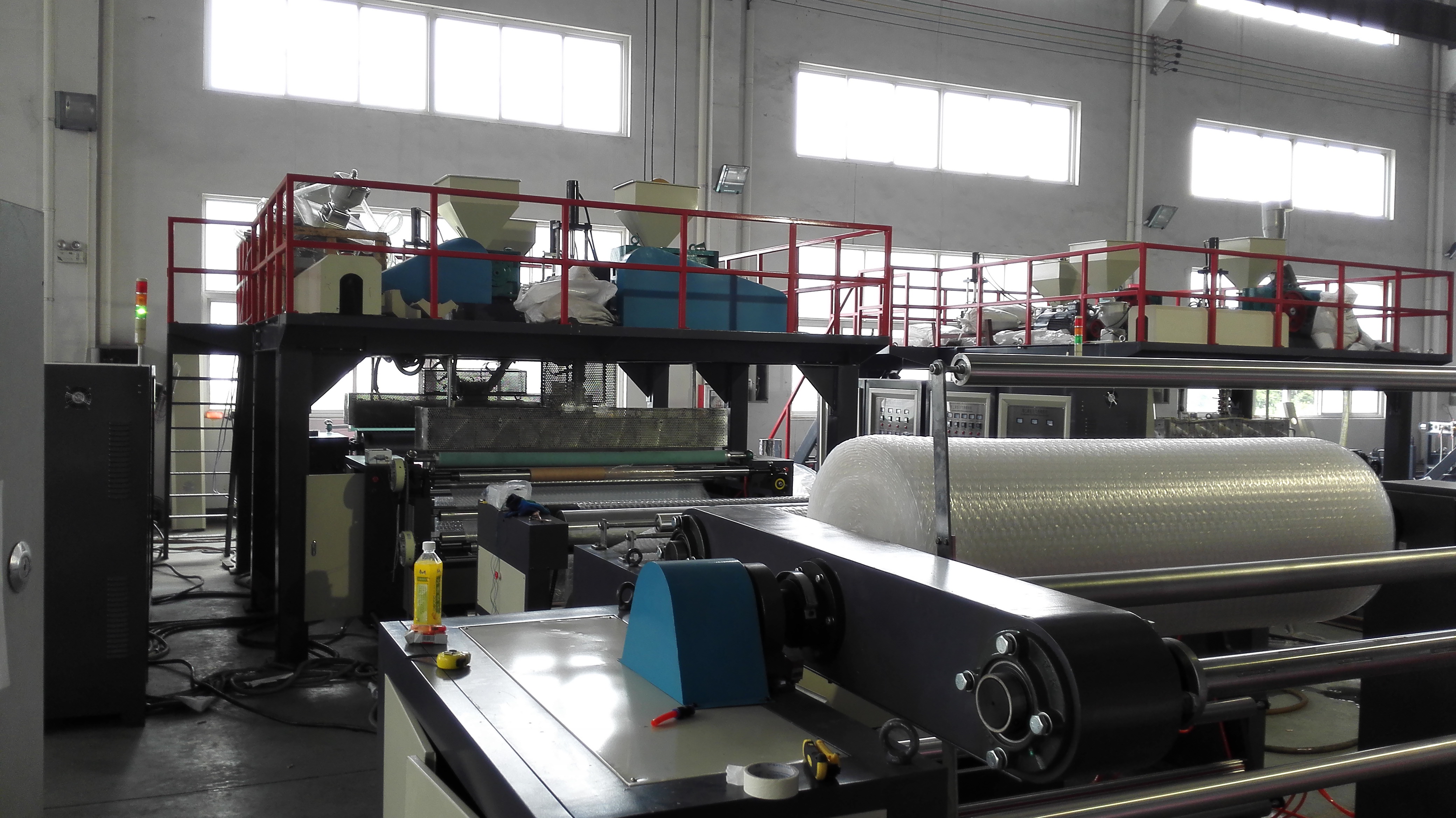

Multi-Layer Air Bubble Film Production Machine
This machine is designed for the efficient production of multi-layer air bubble film, ideal for protective packaging. It utilizes a multi-layer co-extrusion system to ensure consistent film quality and superior cushioning properties.
Technical Specifications
Overview
High-Efficiency Bubble Film Production
This multi-layer air bubble film production machine is engineered for the versatile manufacturing of polyethylene air bubble sheets. Capable of producing 2, 3, 4, and even 5-layer films through an online lamination system, it offers exceptional flexibility for various packaging needs. The system integrates seven key components, including main and minor extruders, precision T-dies, and advanced winding units, ensuring consistent quality for applications ranging from household and instrument packaging to industrial heat insulation.
Technical Specifications
Model Specifications
| Parameter | JDFPE-1600 | JDFPE-2000 | JDFPE-2500 |
|---|---|---|---|
| Screw Diameter (mm) | Φ70/Φ60/Φ60 | Φ80/Φ70/Φ70 | Φ80/Φ70/Φ70 |
| Finished Film Width (mm) | 1600 | 2000 | 2500 |
| Output (kg/h) | 150 | 180 | 180 |
| Main Motor Power (kw) | 18.5/15/15 | 22/18.5/18.5 | 22/18.5/18.5 |
| Total Power (kw) | 150 | 220 | 250 |
| Machine Weight (kg) | 15000 | 17000 | 19000 |
| Machine Size (m) | 17x5.5x4.1 | 17x6.0x4.1 | 17x6.5x4.1 |
- Power Supply
- 380V / 3Ph / 50Hz
Capabilities
Common Applications
- Household wares packing
- Post parcel packing
- Precise instruments packing
- Bicycle packing
- Furniture packing
- Heat insulation
System Components
- Main extruder
- Minor extruder
- Filter unit
- T-die unit
- Air bubble film forming roller
- Traction unit
- Winding unit
- Layer Configurations
- 2-Layer3-Layer4-Layer5-Layer
