Multi-Function MIG/MAG/MMA Welding Machine
This multi-function welding machine utilizes IGBT inverter technology for robust welding performance. It is suitable for MIG/MAG welding with gas, flux-cored welding without gas, and MMA welding of various metals.
Technical Specifications
Product Overview
Professional Multi-Function Welding Solution
This advanced welding machine utilizes inverter IGBT technology to deliver robust performance and high efficiency for demanding welding tasks. Designed for versatility, it supports MIG/MAG (gas and gasless) and MMA welding processes, making it suitable for low carbon steel, low alloy steel, stainless steel, and aluminum. The unit features fan-cooled operation with built-in thermostatic protection for reliable, long-term use.
Technical Specifications
Electrical Features
- Inverter IGBT Technology
- DC Current Output
- Fan-Cooled System
- Thermostatic Protection
- Supported Processes
- MIGMAGMMAGasless Flux
- Compatible Materials
- Low Carbon SteelLow Alloy SteelStainless SteelAluminumAluminum Alloy
Model Comparison

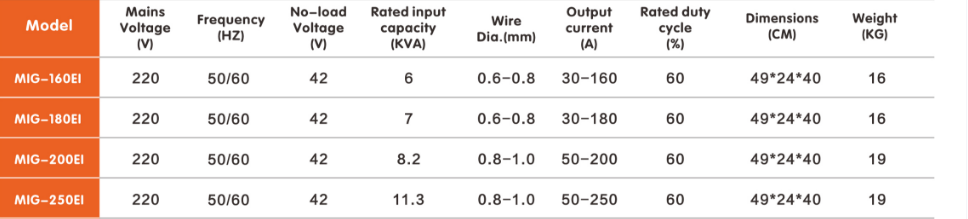

Model Specifications
| Model | Rated Input (KVA) | Output Current (A) | Wire Dia. (mm) | Weight (KG) |
|---|---|---|---|---|
| MIG-160EI | 6 | 30-160 | 0.6-0.8 | 16 |
| MIG-180EI | 7 | 30-180 | 0.6-0.8 | 16 |
| MIG-200EI | 8.2 | 50-200 | 0.8-1.0 | 19 |
| MIG-250EI | 11.3 | 50-250 | 0.8-1.0 | 19 |
General Metrics
Common Specifications
220 V
Mains Voltage
50 Hz
Frequency
42 V
No-load Voltage
60 %
Rated Duty Cycle
