Motor Core High Speed Press
This high-speed press is designed for efficient motor core manufacturing. It features a robust frame and an advanced control system for high-speed operation.
Technical Specifications
Overview
High-Speed Motor Core Press GD200
The GD200 is a high-speed precision stamping press engineered specifically for the efficient production of motor core components. Featuring a robust double-drive system and a specialized top-cylinder slide structure, it ensures high rigidity and reduced eccentric load during operation. This machine is ideal for manufacturing components for new energy vehicles, industrial motors, and compressors, offering a flexible control system for precise material handling and consistent, high-quality output.
Key Features
Key Features
- Lifting slide cylinder for convenient die testing
- Double power drive system for energy efficiency
- Crank slider structure for increased rigidity
- Integrated oil circulation lubrication system
- Flexible, user-friendly electric control system
Technical Specifications
Performance Metrics
2,000 kN
Capacity
37 kW
Total Power
350 spm
Max Pressing Speed
Technical Data Table
| Parameter | Value |
|---|---|
| Force Points | 2 |
| Rated Tonnage Point | 3 mm |
| Slide Stroke | 30 mm |
| Pressing Times | 160~350 spm |
| Die Height Range | 380~480 mm |
| Main Motor Power | 2x15 kW |
Applications
- Applicable Areas

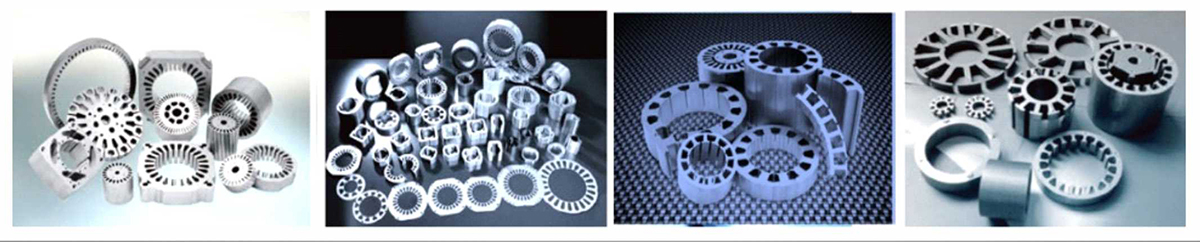

- New Energy Automobile MotorsCompressor MotorsHigh-Efficiency Industrial Motors
