Monocrystalline Half-Cut Cell Solar Panel 325-345W
This monocrystalline solar panel utilizes half-cut cell technology to minimize internal power loss and improve overall power. Its excellent heat dissipation avoids hot spot production.
Technical Specifications
Product Overview
Advanced Half-Cut Technology
This monocrystalline solar panel series utilizes advanced half-cut cell technology to significantly reduce internal power loss and enhance overall module efficiency, reaching up to 20.4%. Designed for optimal performance, the panels feature excellent heat dissipation to prevent hot spots and are suitable for diverse environments, including North American and European markets. With a 10-year product warranty and a 25-year power output warranty, these modules provide a reliable and long-term energy solution.
Key Features
Performance Advantages
- Higher power output
- Greater effective generating area
- Large size technology suitable for various cell types
- Compatible with double-glass, slicing, MBB, and imbricate technologies
- Reduces power station system costs by approximately 0.8%
- Market Compliance
- IEC CompliantNorth America ReadyEurope Ready

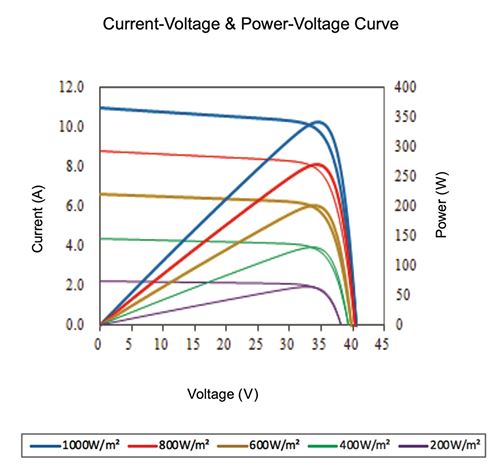

Electrical Characteristics (STC)
Standard Test Conditions Performance
| Parameter | 325W | 335W | 345W |
|---|---|---|---|
| Voc (V) | 40.3 | 40.5 | 40.7 |
| Isc (A) | 10.61 | 10.87 | 11.14 |
| Vmp (V) | 33.9 | 34.3 | 34.7 |
| Imp (A) | 9.6 | 9.78 | 9.96 |
- Power Tolerance
- 0 ~ +5W
- Max System Voltage
- 1000V / 1500V DC (IEC)
Operating Environment
- Operating Temperature
- -40°C to +85°C
- NOCT
- 45 °C
Warranty
- Product Warranty
- 10 Years

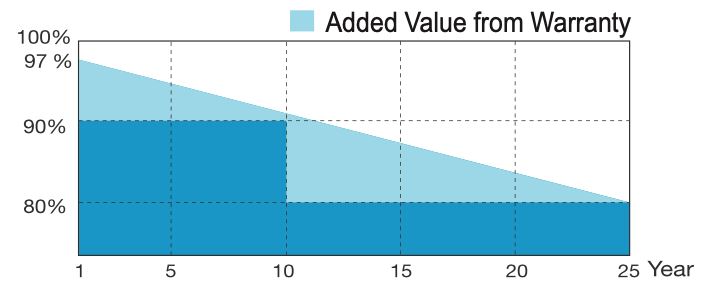

- Power Output Warranty
- 25 Years
