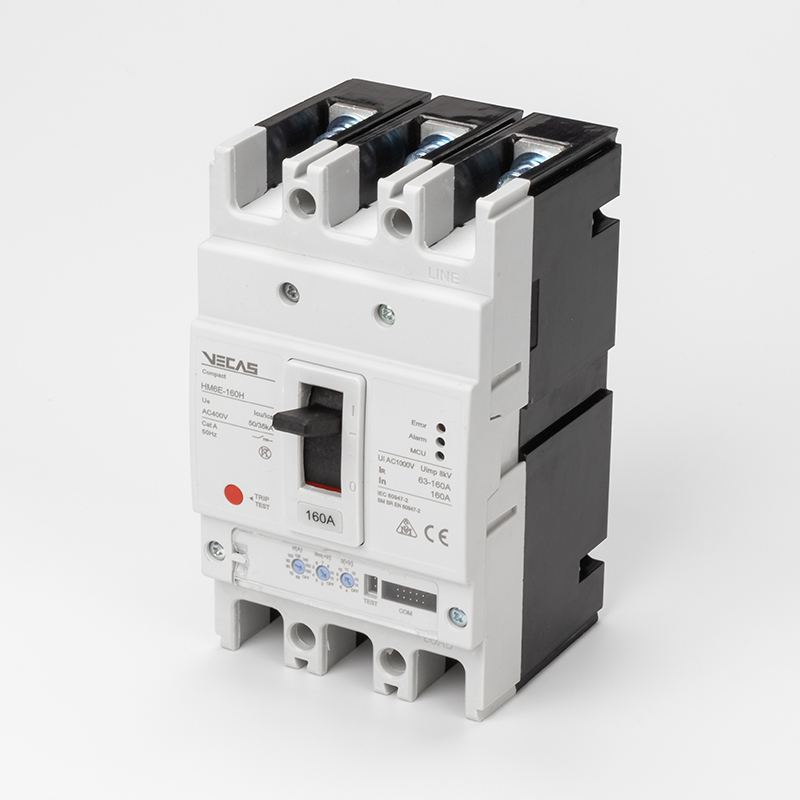

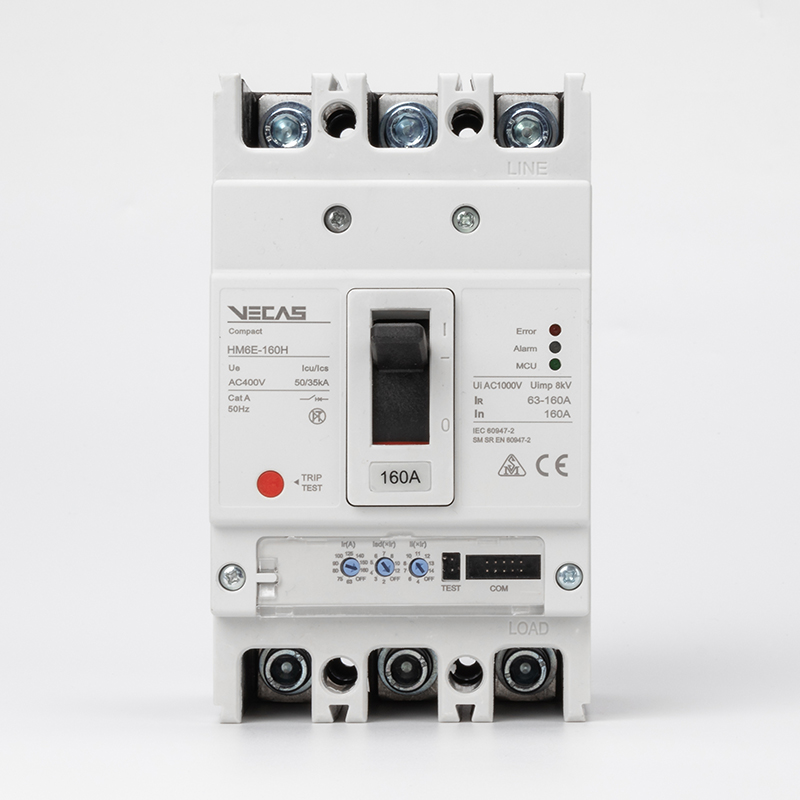

HM6E Series Molded Case Circuit Breaker
The HM6E series is a versatile molded case circuit breaker designed for reliable protection in AC circuits up to 690V. With a wide range of rated currents reaching 1250A, it is suitable for both standard circuit protection and motor protection applications. This series is engineered to operate efficiently under demanding conditions, complying with international standards for safety and performance.
Technical Specifications
Breaking Capacity Options
- 18/15kA
- 25/18kA
- 36/25kA
- 50/35kA
- 65/50kA
- Rated Operational Voltage
- Up to 690V AC
- Frequency
- 50/60Hz
- Rated Current Range
- 1250 A
- Available Poles
- 234
Environmental Conditions
- Operating Temperature
- -5°C to +40°C
- Max Altitude
- 2000 m
- Pollution Level
- 3
Compliance & Certification
Standards Compliance
IEC60947-2:2016
- Certifications
- CBCEROHS
Accessories
Available Internal Accessories
- Undervoltage release (UVT)
- Shunt release (SHT)
- Auxiliary contact (AX)
- Alarm contact (AL)
Model Variants
Model Numbers
| Series | Variants |
|---|---|
| HM6-125 | S, H |
| HM6-160 | S, H |
| HM6-250 | S, H |
| HM6-400 | S, H |
| HM6-630 | S, H |
| HM6-800 | H |
| HM6-1250 | H |
