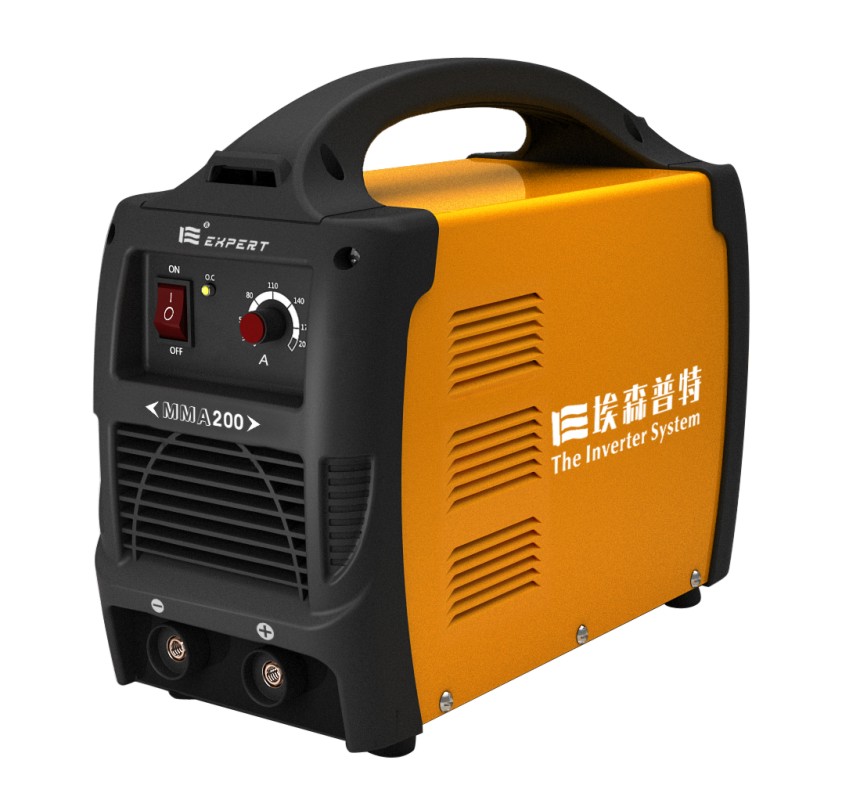

MMA Series Inverter DC Arc Welding Machine
The MMA series inverter DC arc welding machine is a portable and efficient welding solution. Designed for MMA welding, it features adjustable current settings and is suitable for various welding applications.
Technical Specifications
Overview
Professional MMA Inverter Welding Solution
The MMA Series Inverter DC Arc Welding Machine utilizes advanced 100KHz inverter technology to deliver a soft, stable welding arc with minimal splash. Designed for both durability and performance, this unit features high-speed dynamic response and robust resistance to electric-network fluctuations. It is a versatile tool suitable for welding carbon steel, stainless steel, and alloy steel, making it an ideal choice for construction, decoration, and hardware fabrication.
Technical Specifications
Model Comparison
| Specification | MMA-160 | MMA-200 |
|---|---|---|
| Input Current (A) | 32 | 43 |
| Output Current Range (A) | 24-160 | 30-200 |
| Rated Output (A/V) | 160/26.4 | 200/28 |
| No-load Voltage (V) | 56 | 61 |
| Max Rod Diameter (mm) | 3.2 | 4.0 |
Electrical Performance
Key Power Metrics
220 V
Input Voltage
80 %
Efficiency
40 %
Duty Cycle
Welding Capabilities
- Compatible Materials
- Carbon SteelStainless SteelAlloy SteelDecorationHardware
