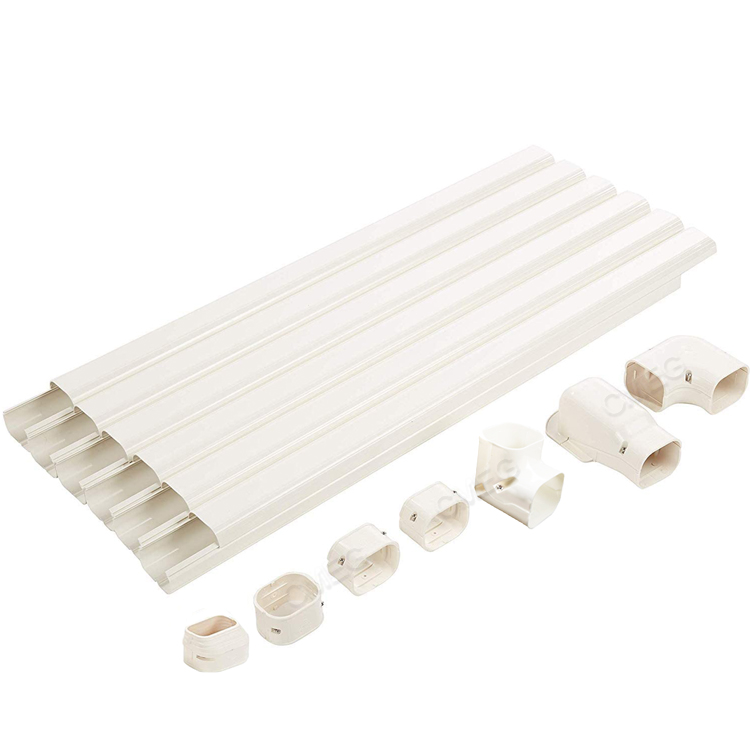

Mini Split Lineset Duct Kit
This mini split lineset duct kit provides a protective cover for air conditioner lines. Constructed from PVC, it offers a clean and professional way to conceal and protect refrigerant lines, drain lines, and electrical cables.
Technical Specifications
Overview
Professional Mini Split Line Set Protection
This high-quality PVC duct cover kit is designed to conceal and protect air conditioner refrigerant lines, electrical wiring, and drain hoses. It provides a clean, professional finish for both residential and commercial mini-split installations while safeguarding components from environmental damage. The modular design ensures quick installation and a seamless fit for various architectural configurations.
Key Features
Main Features
- Quick installation with components that separate in the middle
- Anti-aging PVC material for long-term pipe protection
- Weather-resistant and UV-stabilized for outdoor durability
- Paintable surface to match building exterior or interior decor
- Impact-resistant construction to prevent physical damage
Technical Specifications

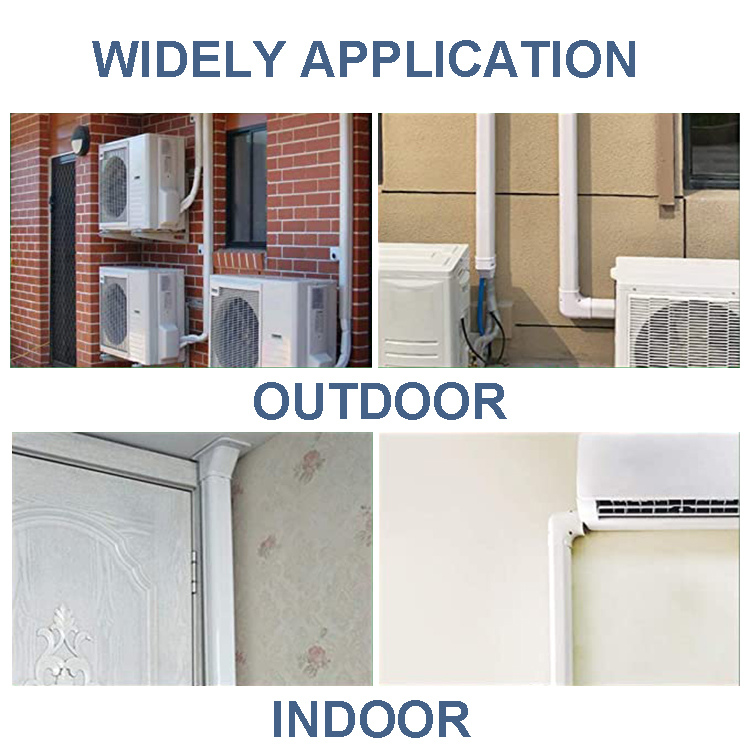

Application Environment
IndoorOutdoor
- Material Properties
- Anti-aging PVCUV-ResistantWeatherproofPaintableFire-RetardantImpact-Resistant
Model Variants
Model Specifications & Packaging
| Model | Sets per Carton | Weight (kg/carton) | Carton Dimensions (m) |
|---|---|---|---|
| QD-8-W | 8 | 10.6 | 2.01 x 0.18 x 0.1 |
| QW-8-W | 36 | 5.1 | 0.5 x 0.4 x 0.3 |
| QC-8-W | 72 | 6.3 | 0.5 x 0.4 x 0.3 |
| QP-8-W | 42 | 4.6 | 0.5 x 0.4 x 0.3 |
| QJ-8-W | 168 | 6.6 | 0.5 x 0.4 x 0.3 |
| QE-8-W | 264 | 8.2 | 0.5 x 0.4 x 0.3 |

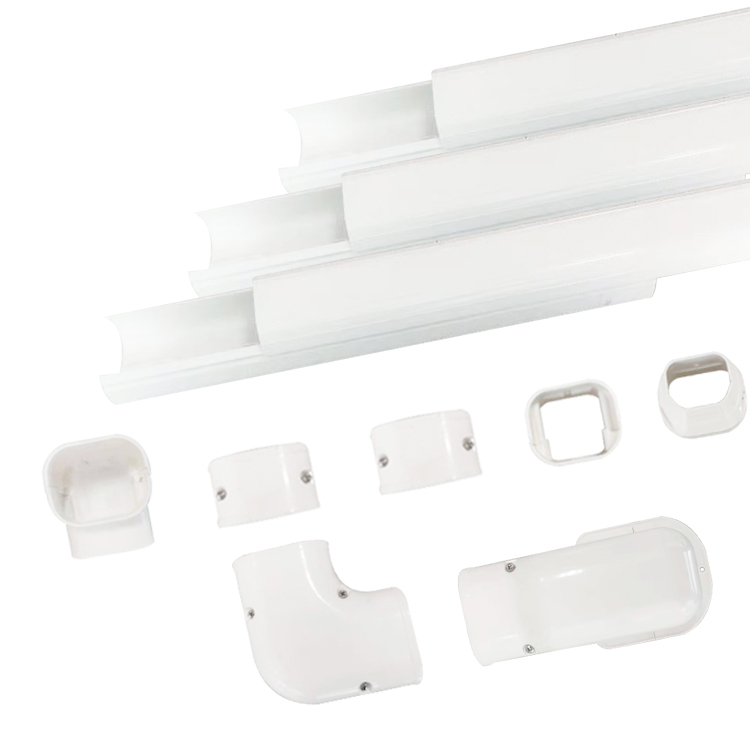

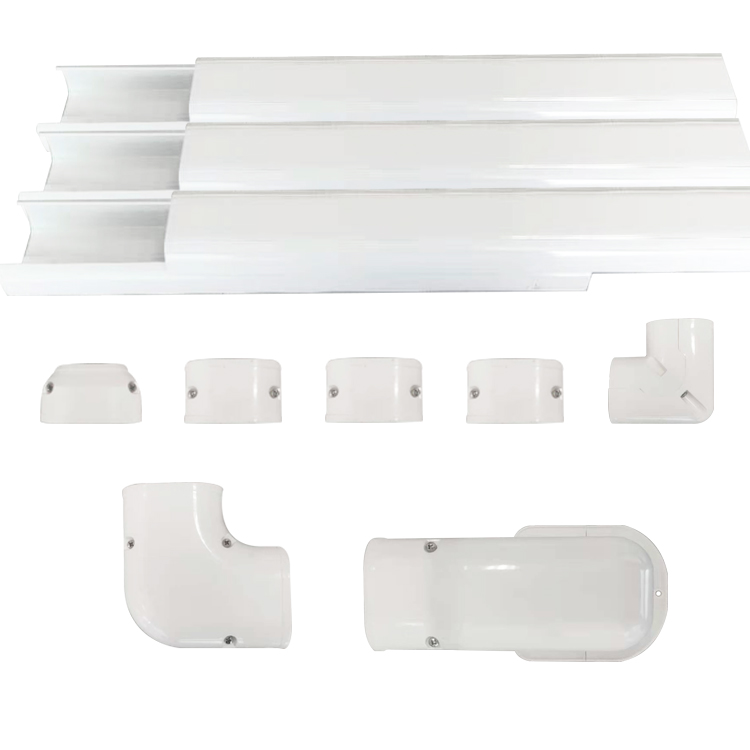

Components
System Components

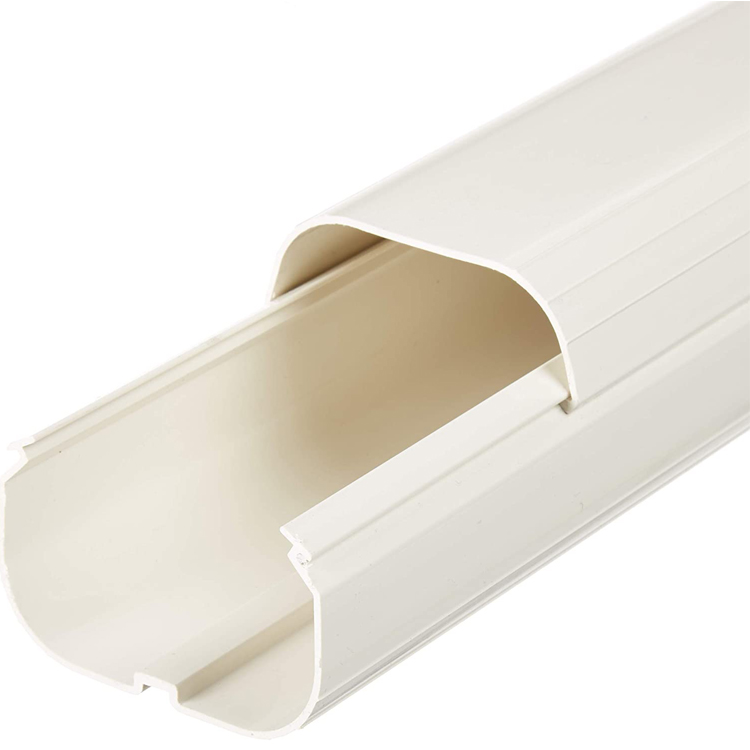

- Straight Ducts (QD-8-W)

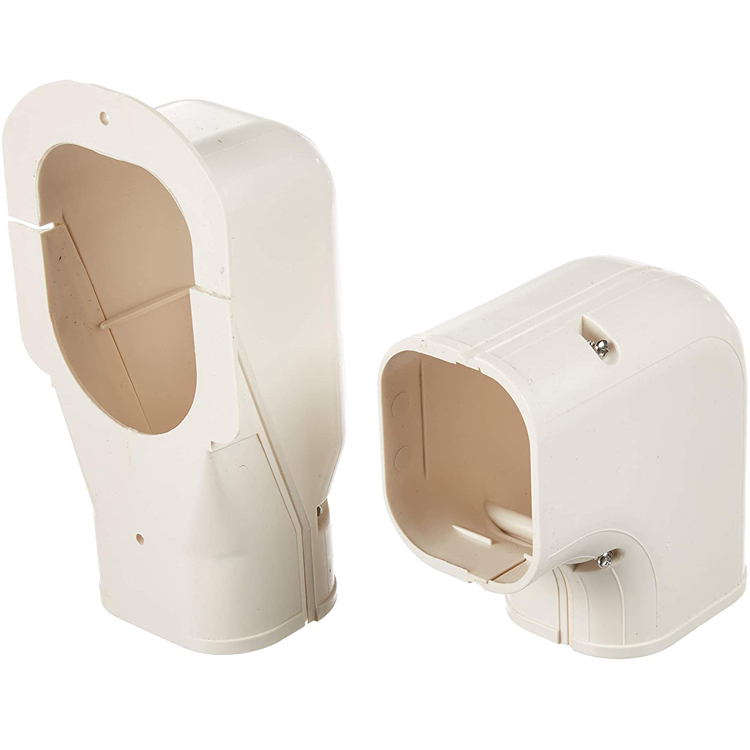

- Wall Entry Covers (QW-8-W)
- Couplings (QC-8-W)

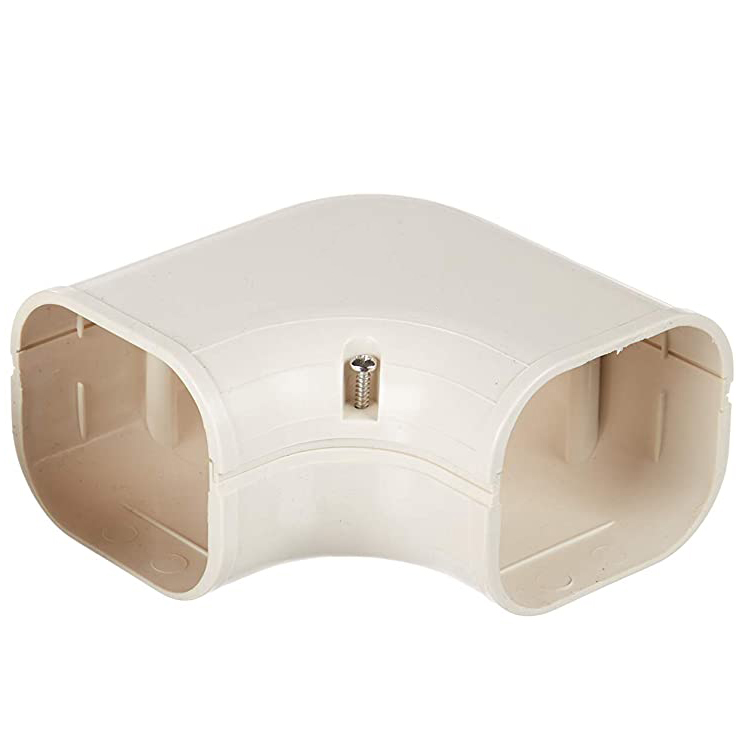

- 90° Plane Elbows (QP-8-W)
- End Caps (QE-8-W)
- 90° Wall Elbows (QJ-8-W)
