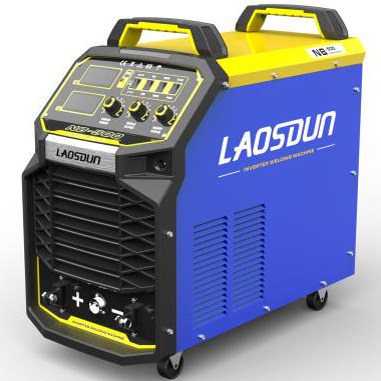

MIG-500 Inverter Welding Machine
This MIG-500 inverter welding machine utilizes IGBT technology for energy saving. It is suitable for welding mild steel and low alloy steel metal sheets.
Technical Specifications
Product Overview
Professional Performance
The MIG-500 is a high-performance inverter welding machine utilizing advanced IGBT technology for energy-efficient and stable operation. It features precise digital control for wire feeding, arc characteristics, and shielding gas flow, ensuring excellent weld quality and spatter control. Designed for industrial reliability, it includes comprehensive protection against thermal overload, over-voltage, and over-current, making it ideal for mild and low-alloy steel applications.
Technical Specifications
Rated Output Current
50 A
Min Output
500 A
Max Output
- Power Voltage
- AC380V±15% 50HZ
- Duty Cycle
- 60 %
- Efficiency
- 85 %
- Power Factor
- 0.93
Physical & Safety
Insulation Class
F
Protection Class
IP21S
- Dimensions
- 650 x 405 x 650 mm
- Weight
- 38 kg
Welding Capabilities
- Usable Wire Diameter
- 0.8 - 1.6 mm
- Suitable Materials
- Mild SteelLow Alloy Steel
Features
Key Functional Features
- IGBT Inverter Technology
- Digital Meter Display
- PWM Pulse Width Control
- Electronic Inductance Regulation
- Shielding Gas Post-Flow Control
- Over-current/Over-heat/Over-load Protection
