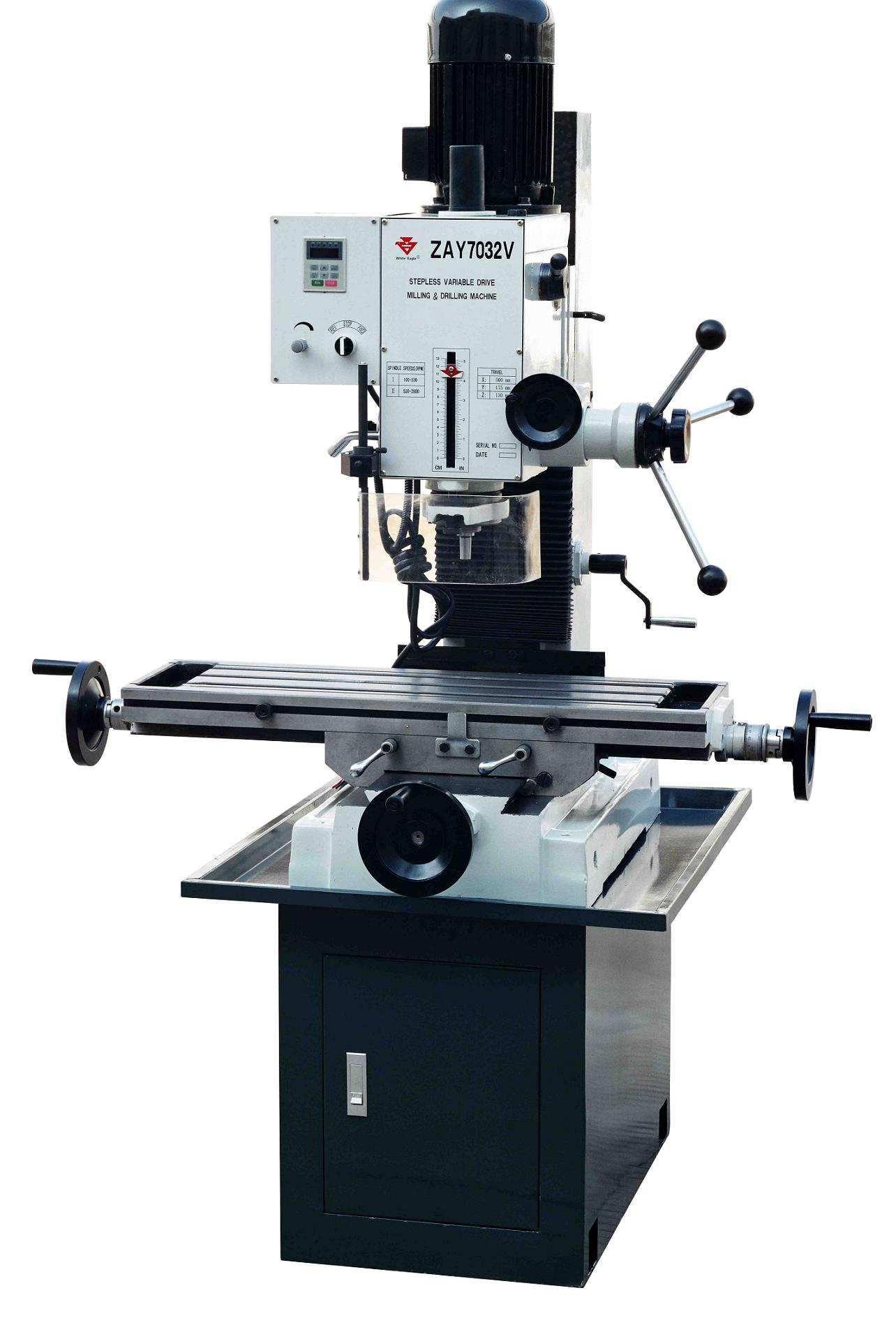

Metalworking Milling and Drilling Machine
This stepless variable drive milling and drilling machine is designed for precision metalworking. It features a robust construction, variable spindle speeds, and precise travel adjustments for X, Y, and Z axes.
Technical Specifications
Overview
Versatile Precision Metalworking Solution
This stepless variable drive milling and drilling machine is engineered for high-precision metalworking tasks including milling, drilling, boring, reaming, and tapping. Featuring a robust construction with strong rigidity, it offers powerful cutting capabilities and precise positioning for professional workshops. The head swivels 90 degrees vertically, providing the flexibility needed for complex machining operations across various materials.
Performance
Spindle Performance
100 RPM
Min Spindle Speed
2,800 RPM
Max Spindle Speed
Technical Capabilities
Key Features
- Stepless variable drive system
- 90° vertical head swivel
- Micro feed precision adjustment
- Adjustable gibs on table
- Digital display for speed control
- Integrated coolant system
- Supported Operations
- MillingDrillingBoringReamingTapping
Construction
Build & Stability
- Strong rigidity for heavy cutting
- Precision milling table with T-slots
- Sturdy base for vibration dampening
- Handwheels for X and Y axes adjustment
Technical Specifications
Machine Specifications
| Parameter | Value |
|---|---|
| Model | ZAY7032V |
| Spindle Speed Range | 100 - 2800 RPM |
| Z-Axis Travel | 130 mm |
| Head Swivel | 90° Vertical |
