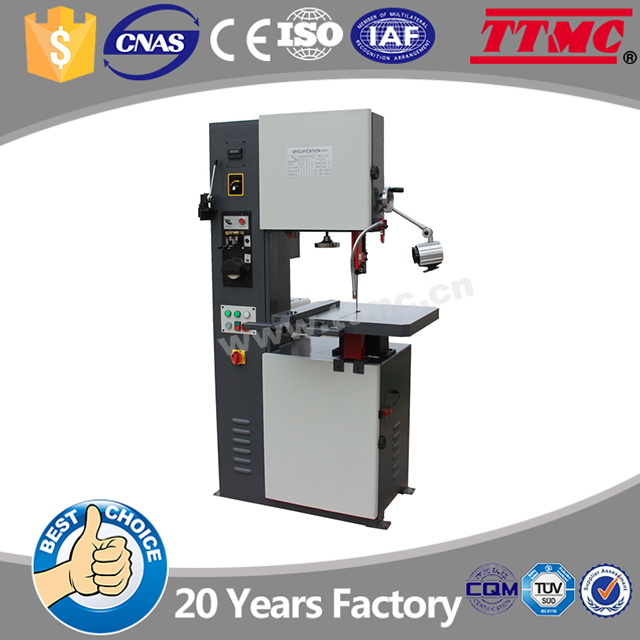

Metal Cutting Band Saw
This metal cutting band saw is designed for precise and efficient cutting of metal materials. It features robust construction, variable speed control, and a coolant system for optimal cutting performance and extended blade life.
Technical Specifications
Overview
Precision Metal Cutting Band Saw
This industrial-grade vertical band saw is engineered for versatile material processing, including metal, plastic, wood, and rubber. Featuring a programmable inverter for variable blade speeds and a tilting worktable, it enables complex operations such as beveling, shaping, contouring, and slicing. Its robust design is built for workshop efficiency, offering adjustable blade guard heights and integrated welding capabilities.
Performance Metrics
Cutting Capacity
336 mm
Max Height
585 mm
Max Width
Blade Specifications
| Parameter | Value |
|---|---|
| Speed Range | 0-1400 rpm |
| Blade Length | 4430-4520 mm |
| Blade Width | 6-19 mm |
Technical Specifications
Motor Power
1.5 kW
Main Motor
0.09 kW
Grinder Motor
2.4 KVA
Electric Welder
- Table Specifications
- 660x700 mm (26"x27.6"), Tilting: R-30°, L-15°
- Physical Dimensions & Weight
- Packing: 147x95x230 cm | Net Weight: 555 kg | Gross Weight: 640 kg
Features & Accessories
Key Features
- Table gauge included
- Table tilts up to 45°
- Adjustable blade guard height
- Standard working light
- Variable blade speed via programmable inverter
- Accessories
- Standard: BladeStandard: Working lightOptional: Servo motor
