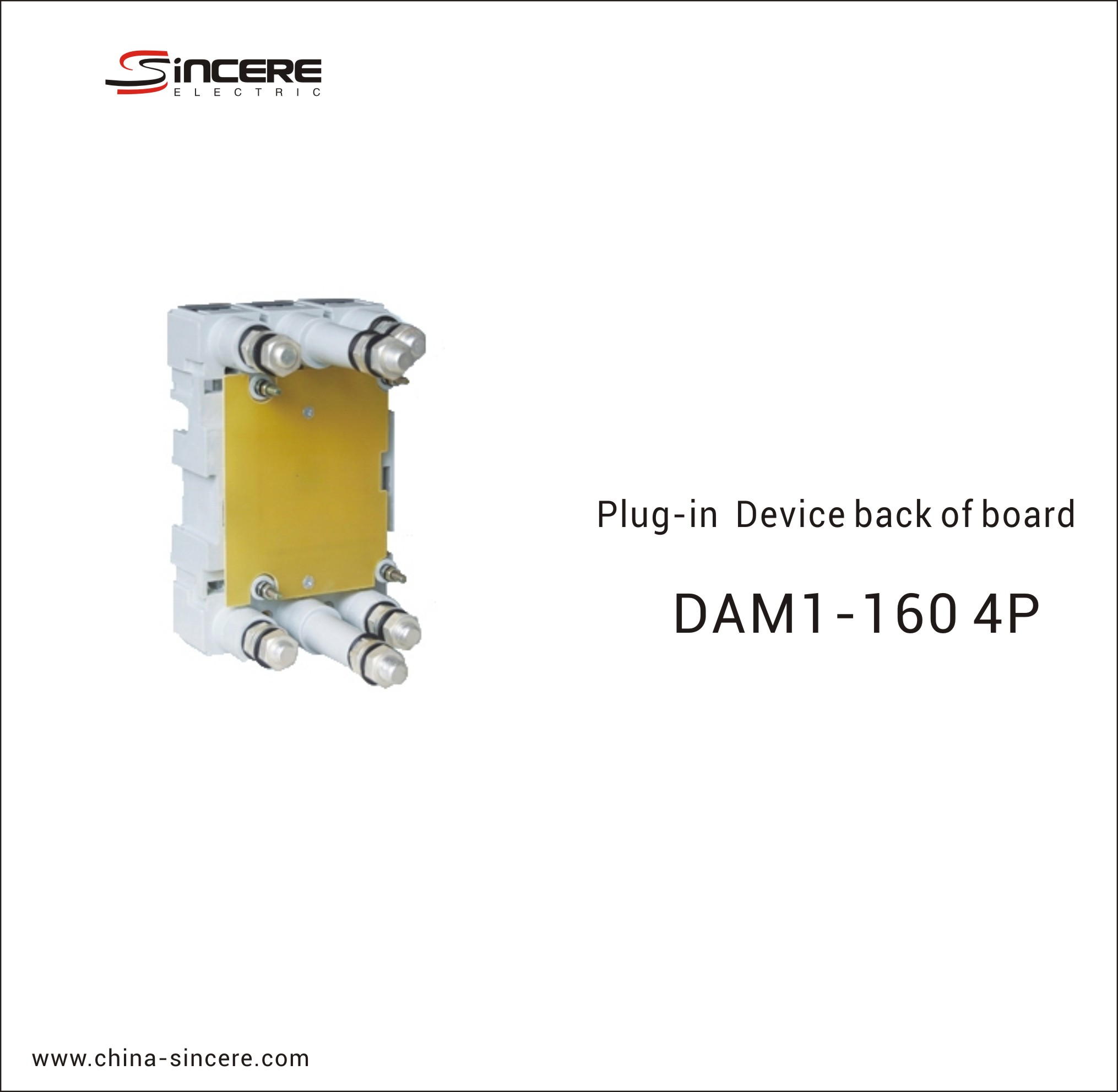

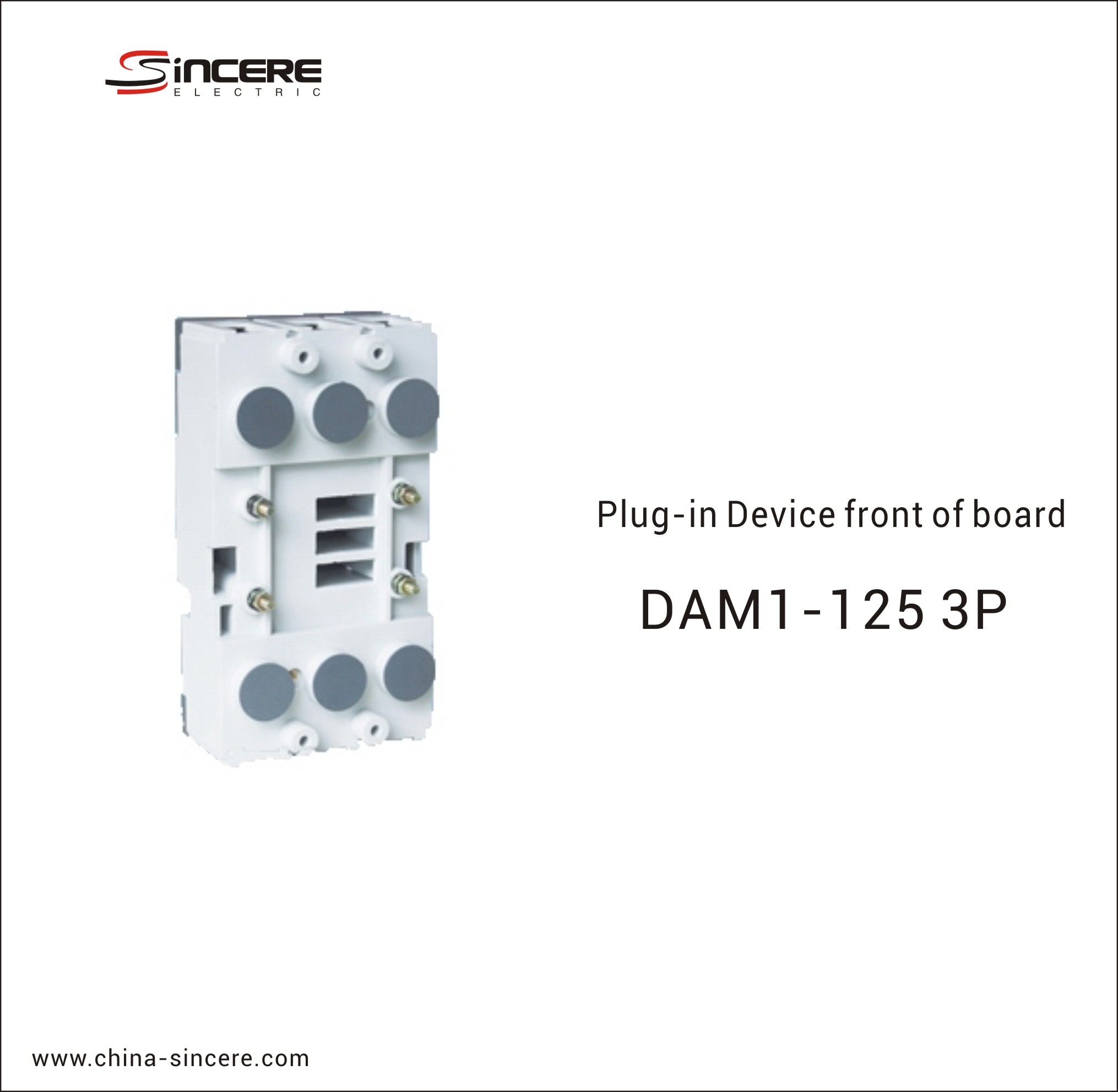

MCCB Plug-In and Draw-Out Device
This device allows for easy installation and removal of MCCBs from electrical panels. It is designed for secure mounting and alignment, minimizing risk during operation.
Technical Specifications
Product Overview
MCCB Plug-In and Draw-Out Accessory
This MCCB plug-in and draw-out device is an essential accessory designed to facilitate the efficient installation and removal of molded case circuit breakers from electrical panels. By allowing for quick insertion and extraction, this system minimizes downtime during maintenance, testing, or equipment upgrades. The robust construction ensures secure mechanical mounting and reliable electrical connectivity, making it suitable for demanding industrial and commercial power distribution environments.
Compatibility
Available Types
- 63 Type
- 100 Type
- 225 Type
- 400 Type
- 630 Type
- Compatible Series
- CM1NM1CDM1TM30
Technical Details
Installation Components
| Type | Contact Pins | Arc-isolation Plates |
|---|---|---|
| 63 Type | 6 | 4 |
| 100 Type | 6 | 4 |
| 225 Type | 6 | 4 |
| 400 Type | 6 | 4 |
