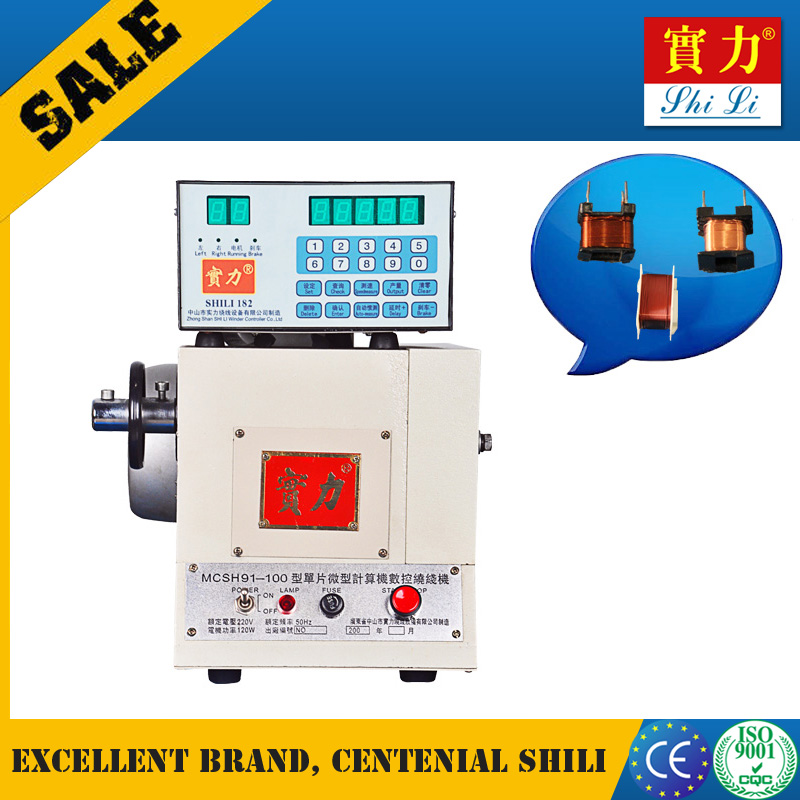

Manual Coil Winding Machine
The machine features a 16 control chip and simple parameter settings. Its high-quality steel desktop design makes operation more convenient, and coil parameters can be set by section with manual winding.
Technical Specifications
Product Overview
Precision Manual Coil Winding
This single-chip microcomputer numerical control winding machine is designed for high-precision coil winding applications. It features a robust steel desktop design with a user-friendly digital interface, allowing for precise control over winding parameters like speed, turns, and pitch. Ideal for both small-scale and industrial environments, it ensures accurate and consistent production results.
Technical Specifications
- Rated Voltage
- 220 V
- Rated Frequency
- 50 Hz
- Motor Power
- 120 W
Features & Control
Performance Metrics
120 W
Motor Power
220 V
Voltage
- Control System
- 16-bit single-chip microcomputer
- Safety Features
- Emergency StopFuse Protection
Applications
Application Range
- Small transformers
- Relays
- Power converters
- Communications coil meter coils
- Stator coils for fans
Certifications
Compliance & Standards
CEISO 9001CQC
