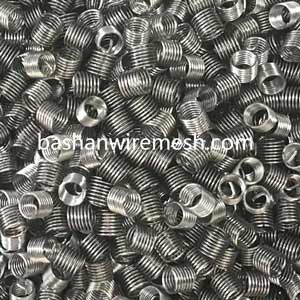

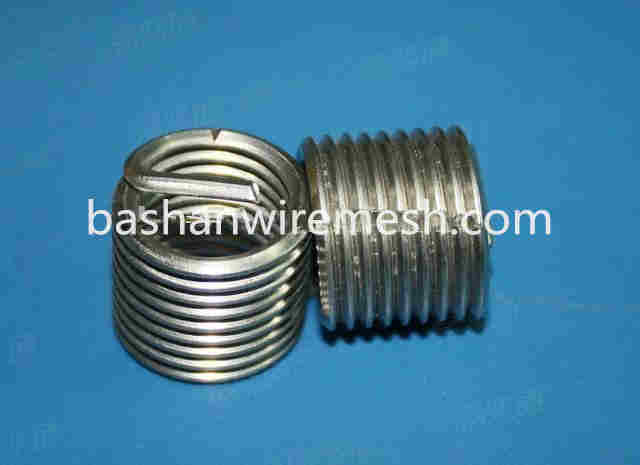

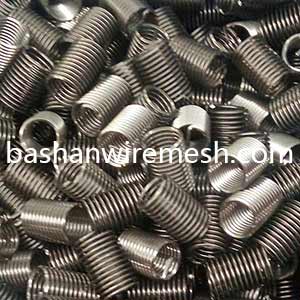

M3X0.5 Stainless Steel Wire Thread Insert
M3X0.5 stainless steel wire thread inserts are designed for military applications. These inserts provide superior thread strength and durability, ensuring reliable performance in demanding environments.
Technical Specifications
Product Overview
High-Performance Wire Thread Inserts
These stainless steel wire thread inserts are engineered for military-grade applications, providing superior durability and reliable thread reinforcement. Designed to offer exceptional resistance to wear, corrosion, and extreme temperatures, they are an ideal solution for repairing damaged threads or strengthening existing connections in critical systems. Compatible with various standards, these inserts ensure secure fastening and longevity in demanding industrial environments.
Technical Specifications
Available Colors
OriginalRedBlack
Coating Options
- Titanium plating
- Cadmium plating
- Galvanization
- Material
- Stainless steel 304
- Standards
- MetricUNCUNF
Installation Data
Tooling Sizes
3 M3*0.5
Install Tool
3 M3*0.5
Break Tool
3 M3*0.5
Unload Tool
- Required Drill Diameter
- 3.1 mm
Dimensions and Weight
Length Variants
- 1D (3mm)
- 1.5D (4.5mm)
- 2D (6mm)
- 2.5D (7.5mm)
- 3D (9mm)
Weight Options
- 0.07kg
- 0.1kg
- 0.14kg
- 0.17kg
- 0.21kg
- Size Range
- M2 - M60
