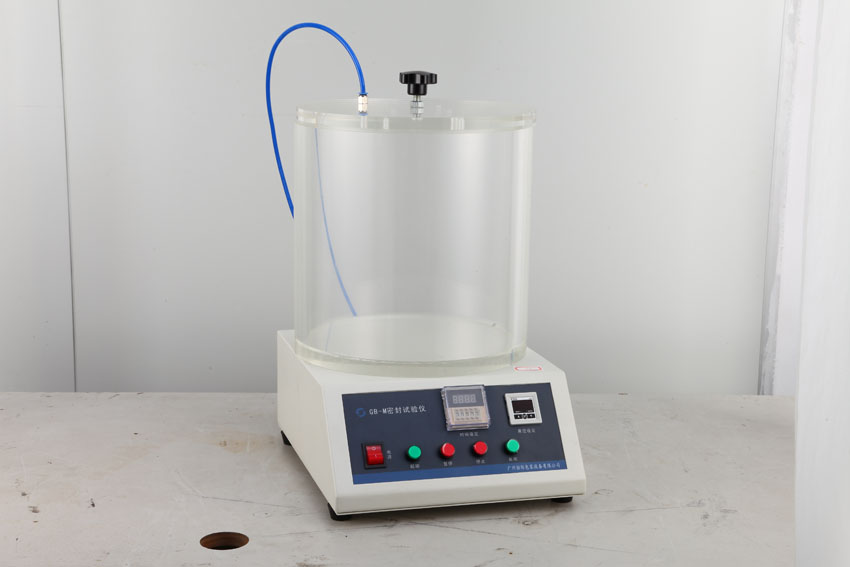

Leakage Tester for Flexible Packaging
This leakage tester checks flexible packaging, plastic bottles, and containers for leaks. It helps evaluate the sealing performance of flexible packaging in the food, pharmaceutical, and commodity sectors.
Technical Specifications
Overview
Precision Leakage Testing for Packaging Integrity
This leakage tester is a professional-grade instrument designed to evaluate the sealing performance of flexible packaging, plastic bottles, bags, and pots. It is an essential tool for quality control in the food, beverage, and pharmaceutical industries, ensuring product shelf life and safety. By adhering to international standards like ASTM D 3078-94, it provides reliable and repeatable test results for various packaging types.
Technical Specifications
- Vacuum Degree
- -90 kPa
- Vacuum Precision
- ±1% (indication error)
- Vacuum Holding Time
- 0.1 - 60 min
- Intake Pressure
- 0.25 - 0.6 MPa (2.5 - 6 kgf/cm²)
- Vacuum Chamber Dimensions
- Ф300 × 350 mm
- Overall Dimensions
- 430(L) × 300(W) × 500(H) mm
Compliance & Application
Target Industries
FoodPharmacyBeverageCommodity
Compatible Packaging
- Flexible packaging cases
- Plastic bottles
- Bags
- Pots
- Testing Standards
- GB/T 15171-1994ASTM D 3078-94
