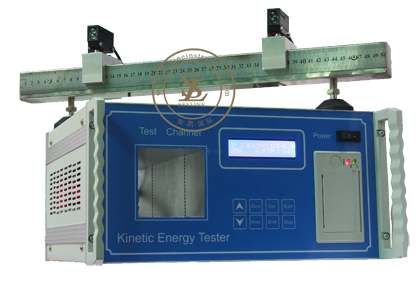

Kinetic Energy Tester for Impact Resistance Measurement
This kinetic energy tester assesses the potential risk of accidents caused by the ejection of non-exclusive materials. It is designed for precise measurement of kinetic energy, featuring a digital display and options for external and internal sensors.
Technical Specifications
Overview
Precision Impact Testing
The Kinetic Energy Tester is a specialized instrument designed for measuring the kinetic energy of projectiles or moving objects, making it essential for safety testing in toy manufacturing and material science. By evaluating impact resistance and energy absorption properties, this device helps manufacturers identify potential risks associated with ejected materials. It provides precise velocity and energy data to ensure products meet rigorous international safety standards.
Technical Specifications
Power Supply
220 V
Voltage
50 Hz
Frequency
Performance Ranges
| Parameter | Range |
|---|---|
| Time Display | 0.000001 - 15.000000 s |
| Speed Display | 0.007 - 10000.000 m/s |
- Compliance Standards
- ASTM F963-03EN-71-03ISO8124
Sensor & Interface
- Input Channels
- Internal and optional external channels
- Sensor Distance
- 152 mm
- External Sensor Adjustment Range
- 30 - 480 mm
