Industrial Material Drying Machine
Industrial drying machines are used in dressing, metallurgy, construction, and roadwork applications. These machines offer reduced coal and power consumption, with increased productivity compared to standard industrial dryers.
Technical Specifications
Overview

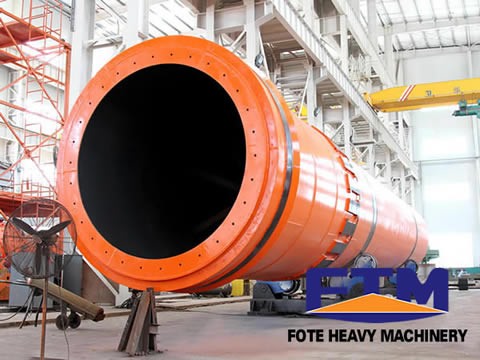

Industrial Material Drying Machine
This industrial drying machine is a robust solution designed for high-efficiency moisture removal in sectors such as metallurgy, construction, chemical engineering, and mineral processing. Utilizing advanced rotary drum technology with multi-modular lifting devices, the system achieves superior thermal efficiency and lower coal consumption compared to standard dryers. Its centralized control system allows for precise monitoring, ensuring reliable performance and consistent material quality across diverse industrial applications.
Performance & Capacity
Performance Metrics
Applications & Material Compatibility
- Compatible Materials
- SlagClayLimestoneArdealiteDry-mixed mortarGrain slagCoal slime
Technical Specifications
Technical Data Table
| Model | Capacity (T/H) | Motor Power (KW) | Weight (T) |
|---|---|---|---|
| Φ1.2×10m | 2.5 | 7.5 | 13.5 |
| Φ1.5×12m | 3.3-4.9 | 10 | 18.9 |
| Φ1.5×15m | 4-6 | 18.5 | 21 |
| Φ1.8×12m | 4-6 | 11 | 22.83 |
| Φ2.2×12m | 7-12 | 18.5 | 37.6 |
| Φ2.2×14m | 7-12 | 18.5 | 40 |
| Φ2.2×16m | 12 | 30 | 45 |
| Φ2.4×14m | 12 | 30 | 51 |
| Φ2.4×18m | 10-13 | 37 | 54 |
| Φ2.4×20m | 10-14 | 37 | 54.14 |
| Φ3×20m | 25 | 55 | 78 |
| Φ3×25m | 32-36 | 75 | 104.9 |
Features
Key Features
- Multi-modular lifting devices for high thermal efficiency
- Compatible with various furnace types including high-temperature boiling and coal stoves
- Changeable pin column gear transmission for reduced maintenance costs
- Centralized micro-computer monitoring system
- Optimized material curtain distribution for full heat utilization
