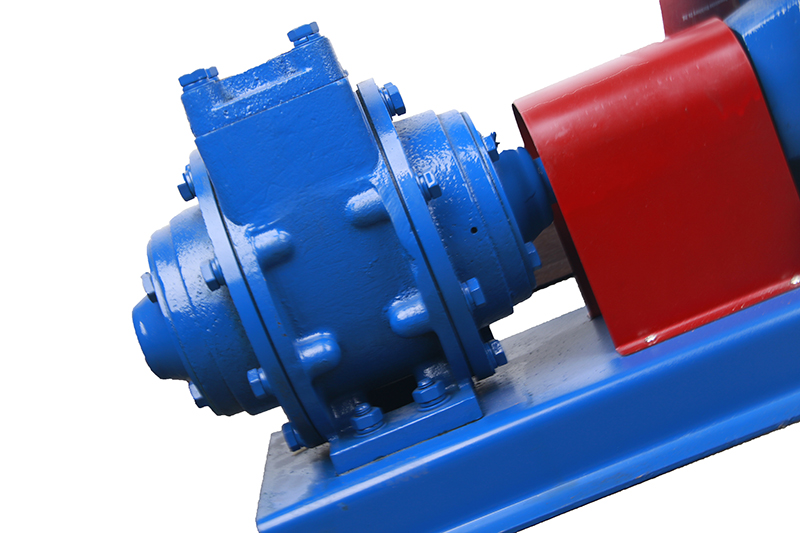

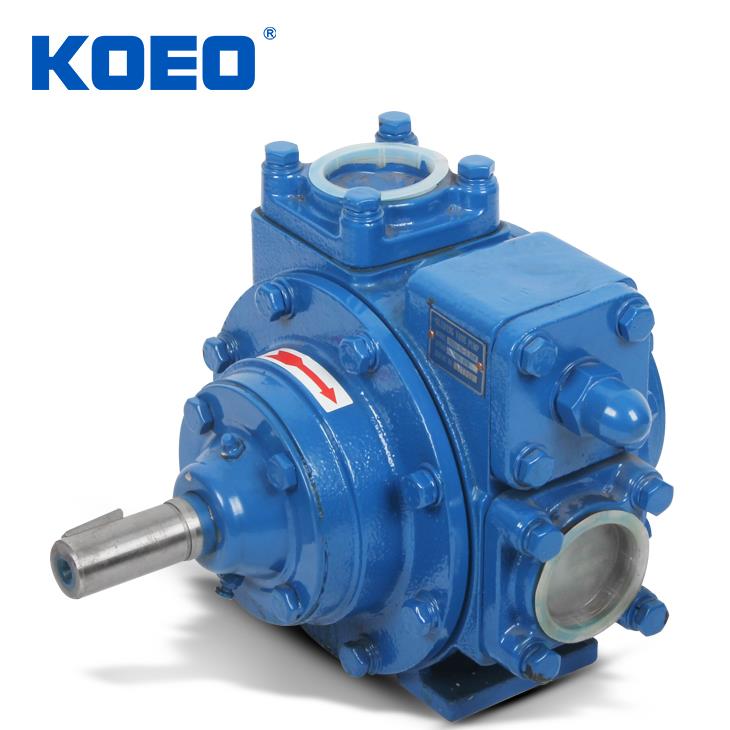

High-Efficiency Rotary Vane Pump
The YB Series is a high-performance rotary vane pump featuring a built-in by-pass valve for efficient liquid transfer. Constructed from robust nodular cast iron with self-lubricating vanes, it is engineered to handle a variety of viscous and volatile fluids including diesel, gasoline, and lubricating oils. Its design ensures excellent self-priming capabilities and dry-run tolerance, making it an ideal choice for heavy-duty industrial fluid management.
Technical Specifications
Model Performance Data
| Model | Size | Flowrate (L/min) | Speed (RPM) | Power (KW) |
|---|---|---|---|---|
| YB-50 | 2" | 329 | 780 | 2.2 |
| YB-65 | 2.5" | 594 | 780 | 4 |
| YB-80 | 3" | 1,022 | 640 | 7.5 |
| YB-100 | 4" | 1,900 | 500 | 18.5 |
- Body Material
- Nodular cast iron
- Maintenance
- Easy MaintenanceSelf-lubricating Vanes
Key Features
Operational Advantages
- Excellent self-priming and dry-run capabilities
- Versatile application for diesel, gasoline, lubricating oil, and heavy oil
- Replaceable vanes without moving the entire pump assembly
- Low-revolution, high-flow rate transmission design
- Integrated by-pass valve
