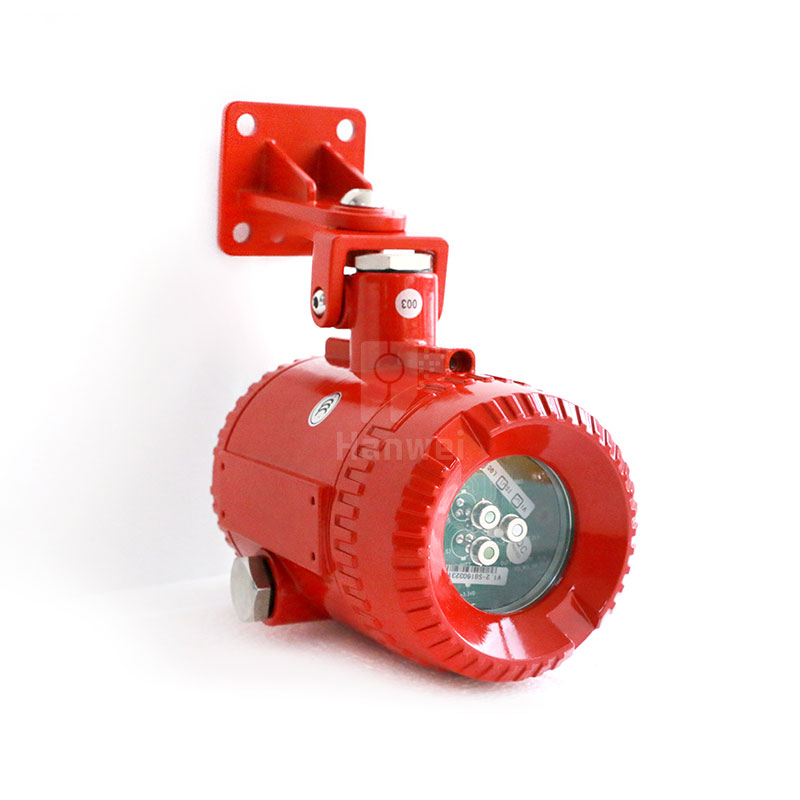

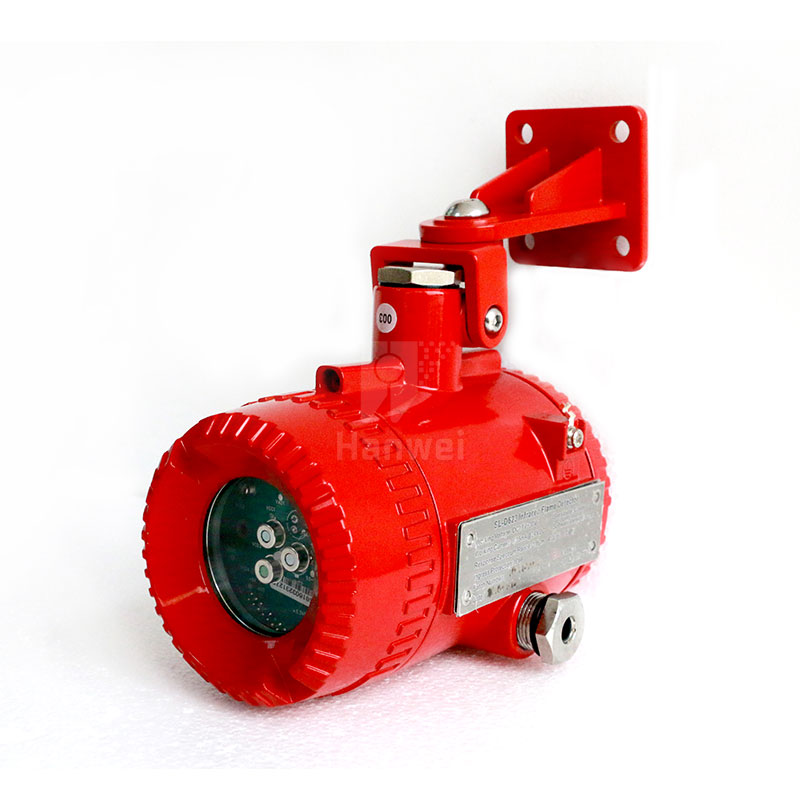

Industrial Flame Detector
This flame detector is designed for detecting flames in industrial and hazardous environments. It utilizes advanced sensor technology to quickly identify flames while minimizing false alarms.
Technical Specifications
Overview
Advanced Flame Detection Technology
The Industrial Flame Detector utilizes advanced multi-infrared sensing technology (MIR) to provide reliable flame detection with high selectivity. Designed for hazardous industrial environments, it effectively detects fire hazards to prevent explosions and damage in critical facilities. Its robust, explosion-proof construction ensures continuous monitoring and rapid response times in demanding conditions.
Technical Specifications
Signal Outputs
- Relay passive contact
- 0-20mA output
- Modbus output
- Operating Voltage
- 24 V
- Operating Current
- 35 mA
- Response Time
- 3-10s
- View of Angle
- 90 °
- Max Detection Distance
- 42 m
Environmental & Physical
Ingress Protection
IP66
Physical Dimensions & Weight
33 cm
Dimensions
2 kg
Weight
- Operating Temperature
- -40°C to +70°C
- Working Humidity
- ≤95% RH (no condensation)
- Explosion-proof Rating
- Ex d IIC T6
Applications
- Suitable Industries
- AerospaceChemicalPharmaceuticalPower StationsOil & GasWarehousing
