IGBT Inverter Arc Welding Machine
This IGBT inverter arc welding machine provides strong welding power in a compact size. Its design ensures a high duty cycle and efficient power utilization, suitable for MMA welding of low carbon and low alloy steels.
Technical Specifications
Product Overview
Professional Arc Welding Performance
The IGBT Inverter Arc Welding Machine series provides a robust and efficient solution for professional industrial welding. Utilizing advanced inverter technology, these machines achieve high power utilization rates and consistent arc stability. Designed for portability and longevity, they are suitable for MMA welding of low carbon and low alloy steels across diverse work environments.
Key Features
- Core Technologies
- IGBT InverterMMA WeldingHigh Duty CycleLow Open Circuit Loss
Technical Specifications
Performance Overview
60 %
Duty Cycle
56 V
No-load Voltage
220 V
Mains Voltage

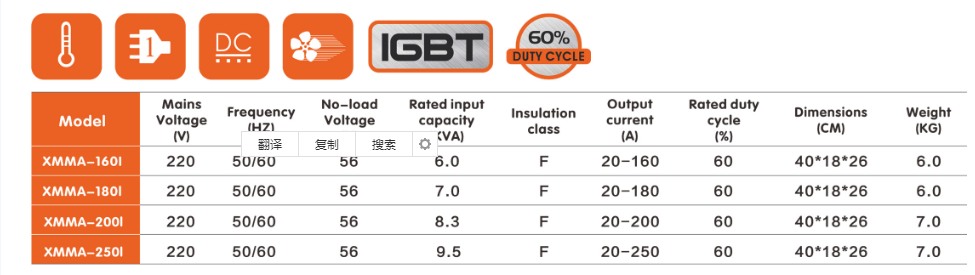

Model Specifications
| Model | Output Current (A) | Input Capacity (VA) | Weight (kg) |
|---|---|---|---|
| XMMA-160I | 20-160 | 6 | 6 |
| XMMA-180I | 20-180 | 7 | 6 |
| XMMA-200I | 20-200 | 8.3 | 7 |
| XMMA-250I | 20-250 | 9.5 | 7 |
Mechanical Details
Dimensions & Build
- Dimensions: 40 x 18 x 26 cm
- Insulation Class: F
- Frequency: 50/60 Hz
