IGBT Inverter ARC Welding Machine
This ARC welding machine utilizes IGBT inverter technology for increased strength and a compact size. It is suitable for MMA welding of low carbon steel and low alloy steel with various welding rods.

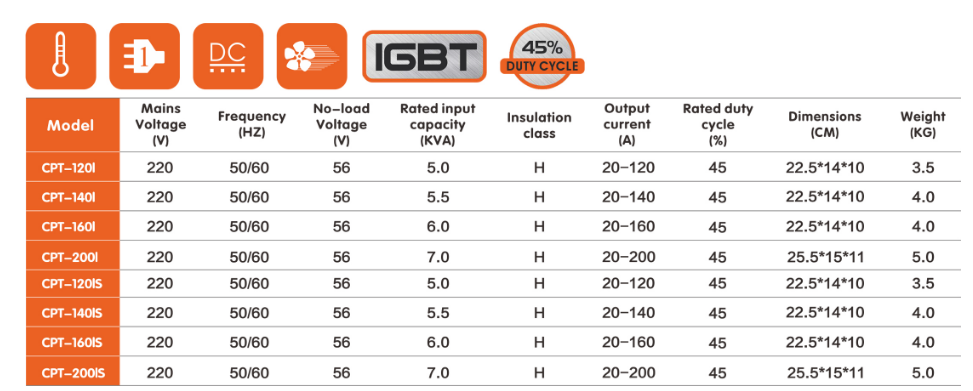

Technical Specifications
Product Overview
Professional IGBT Inverter Welding
This advanced IGBT inverter welding machine delivers superior performance with a compact and lightweight design. It provides high power utilization rates, minimizing open circuit losses while ensuring high-quality welding results. The unit is ideally suited for MMA welding applications on low carbon and low alloy steels, accommodating a wide range of welding rods.
Technical Specifications
Performance Highlights
160 A
Max Output Current
45 %
Rated Duty Cycle
6 KVA
Rated Input Capacity
Power and Electrical
| Parameter | Value |
|---|---|
| Mains Voltage | 220V |
| Frequency | 50/60Hz |
| No-load Voltage | 56V |
| Insulation Class | H |
Physical Characteristics
Size and Portability
- Dimensions: 22.5 x 14 x 10 cm
- Weight: 4.0 kg
Key Features
- Technology and Compatibility
- IGBT TechnologyMMA WeldingLow Carbon Steel CompatibleCompact Design
