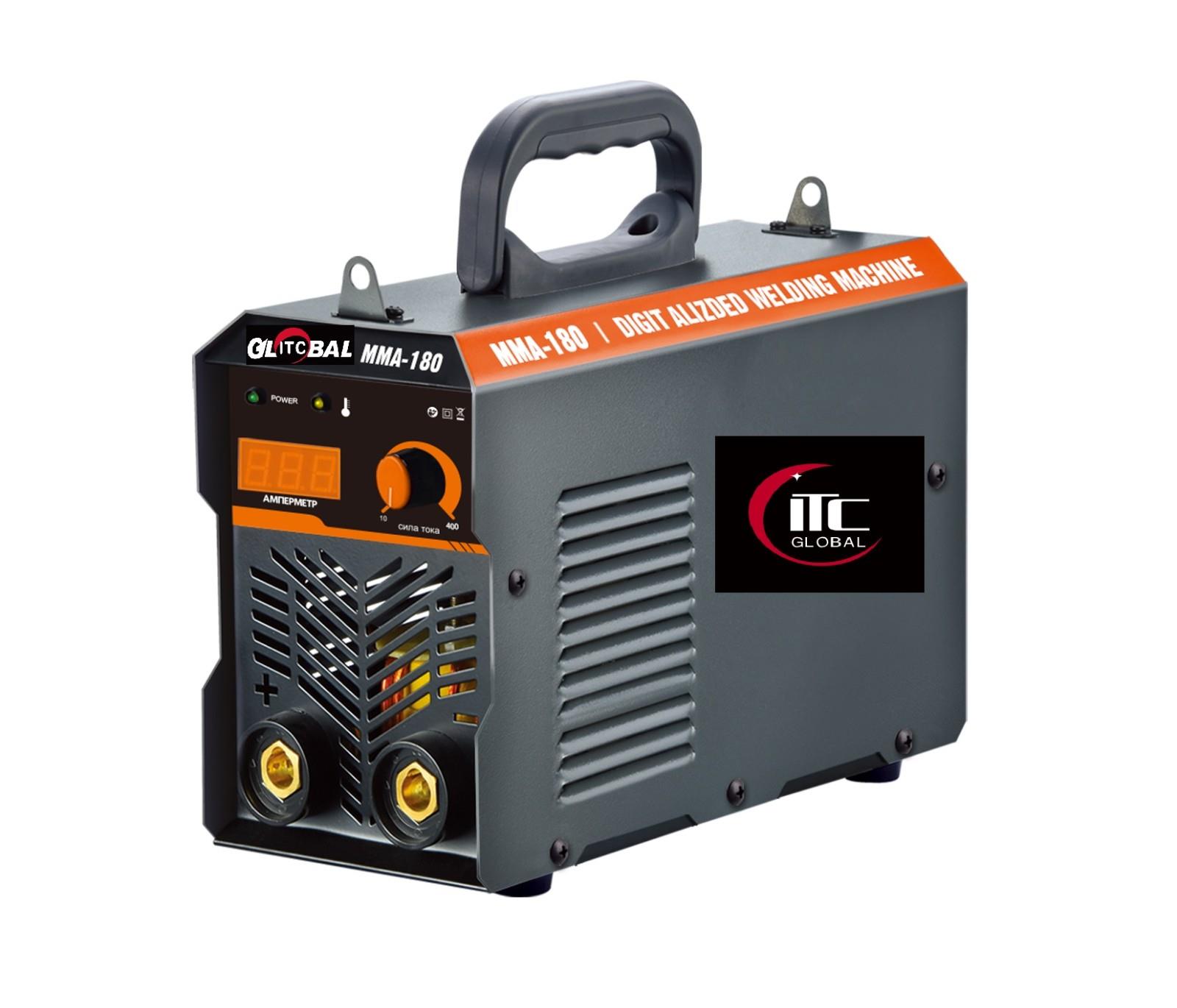

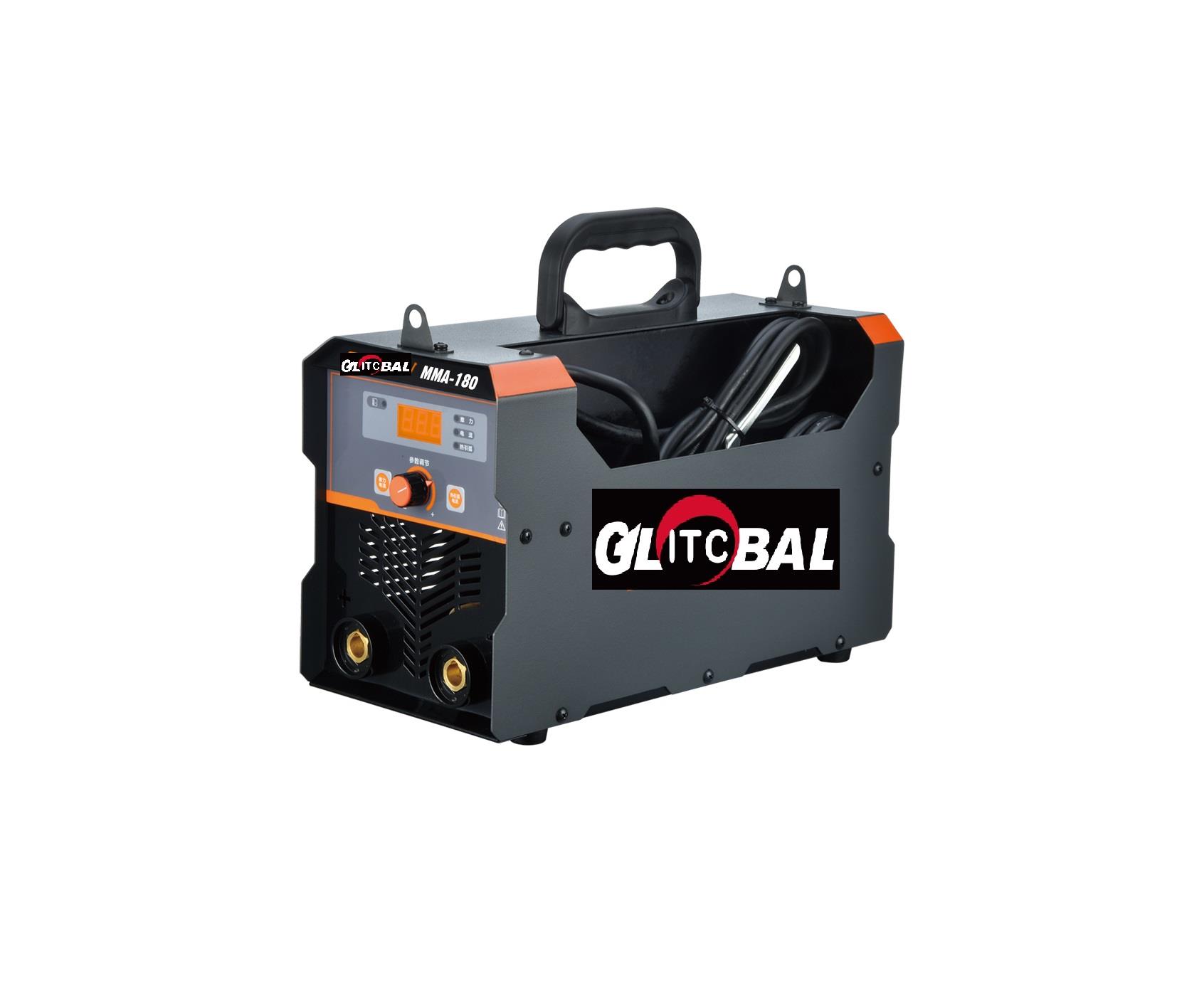

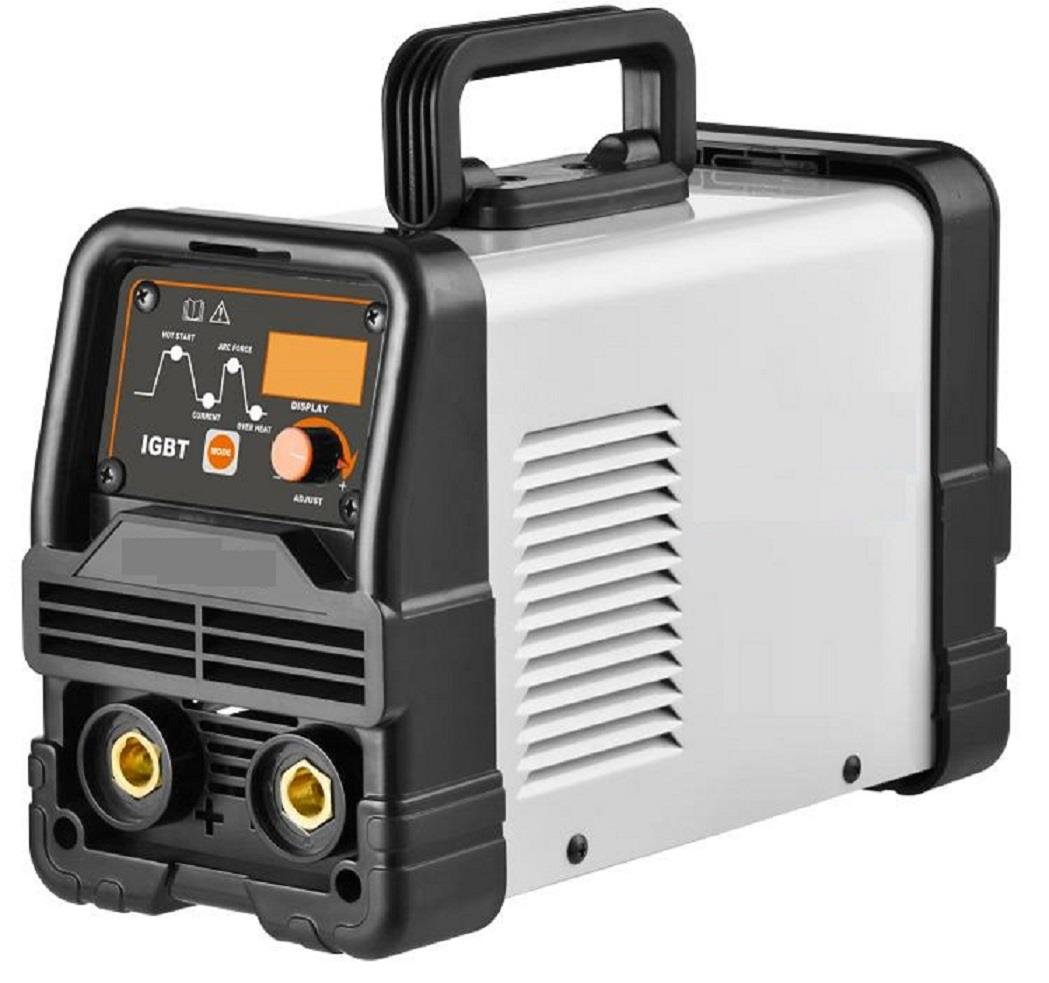

IGBT Digital Inverter Welding Machine
This electric welding machine features a multifunction control panel for easy operation. The output current can be set between 20A and 180A.
Technical Specifications
Overview
Professional IGBT Welding Solution
This professional-grade digital inverter welding machine utilizes advanced IGBT technology to provide stable arc performance and efficient power consumption. Designed for versatility, it is suitable for various welding tasks including flat iron, pipes, and angle iron joints. With built-in features like hot start, arc force, and anti-stick protection, it ensures a user-friendly experience for both professionals and new operators.
Technical Specifications
Welding Current Range
20 A
Minimum Current
180 A
Maximum Current
Technical Details
| Parameter | Value |
|---|---|
| Frequency | 50-60HZ |
| Power Factor | cosφ0.8 |
| Max No-load Voltage | 65+/-5V |
| Protection Degree | F |
| Insulation Class | IP21S |
- Input Voltage
- 1PH 220V-230V / 110V-120V
- Rated Duty Cycle
- 30 %
- Usable Electrode Diameter
- 1.6 - 5.0 mm
- Rated Input Power Capacity
- 5.7 KW
Features & Protection
Built-in Features
- Hot start
- Anti-stick
- Arc force
- Forced air cooling
- Auto Protection Systems
- Over-voltage protectionOver-heat protectionOver-current protectionOver-load protection
Certifications
Approvals
CEEMCROHSUL
