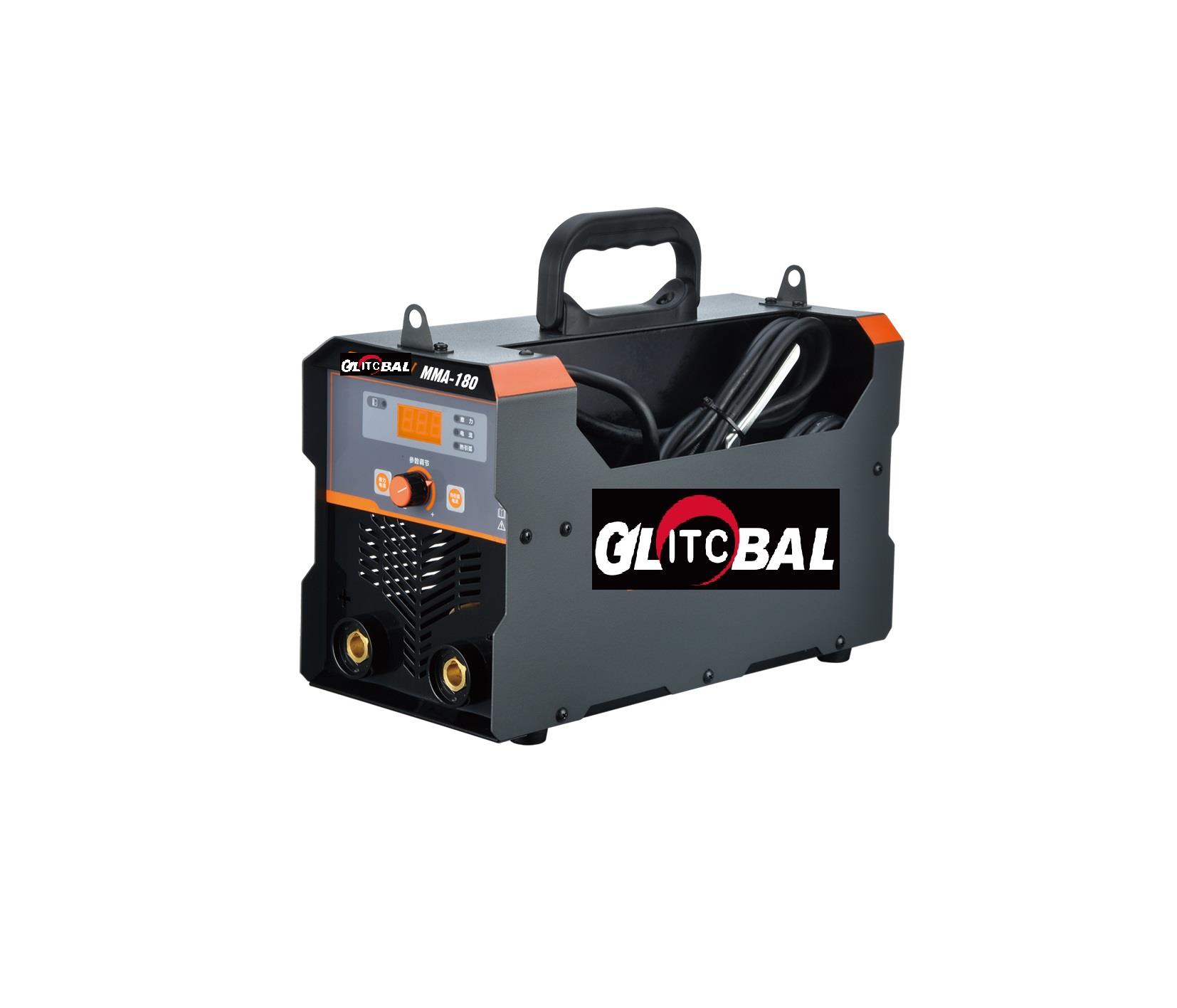

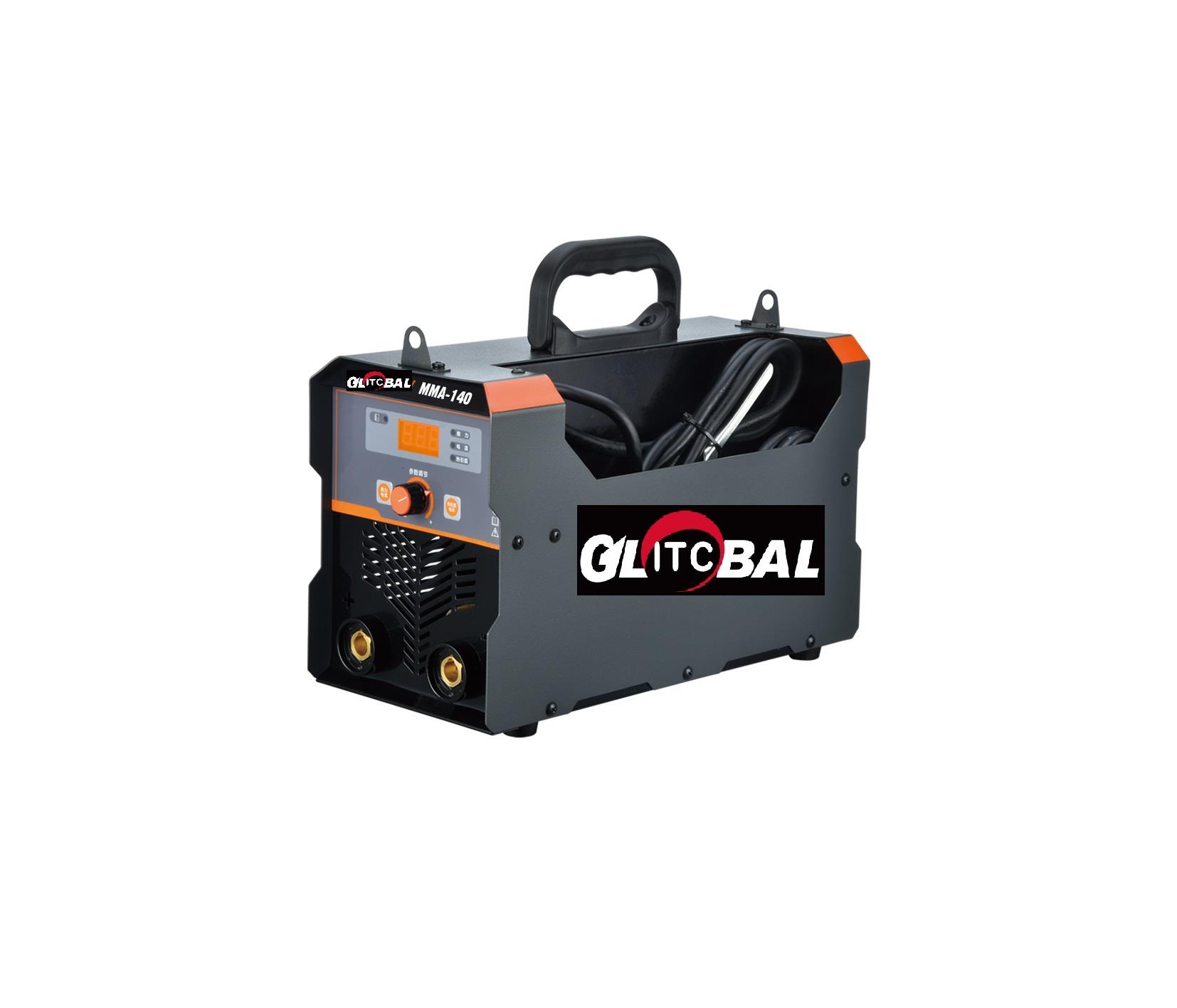

IGBT Digital Inverter Welding Machine
This IGBT welding machine features a digital inverter for stable and efficient power conversion. It is designed for MMA welding processes and offers digital control for precise adjustments.
Technical Specifications
Product Overview
Professional Inverter Welding Machine

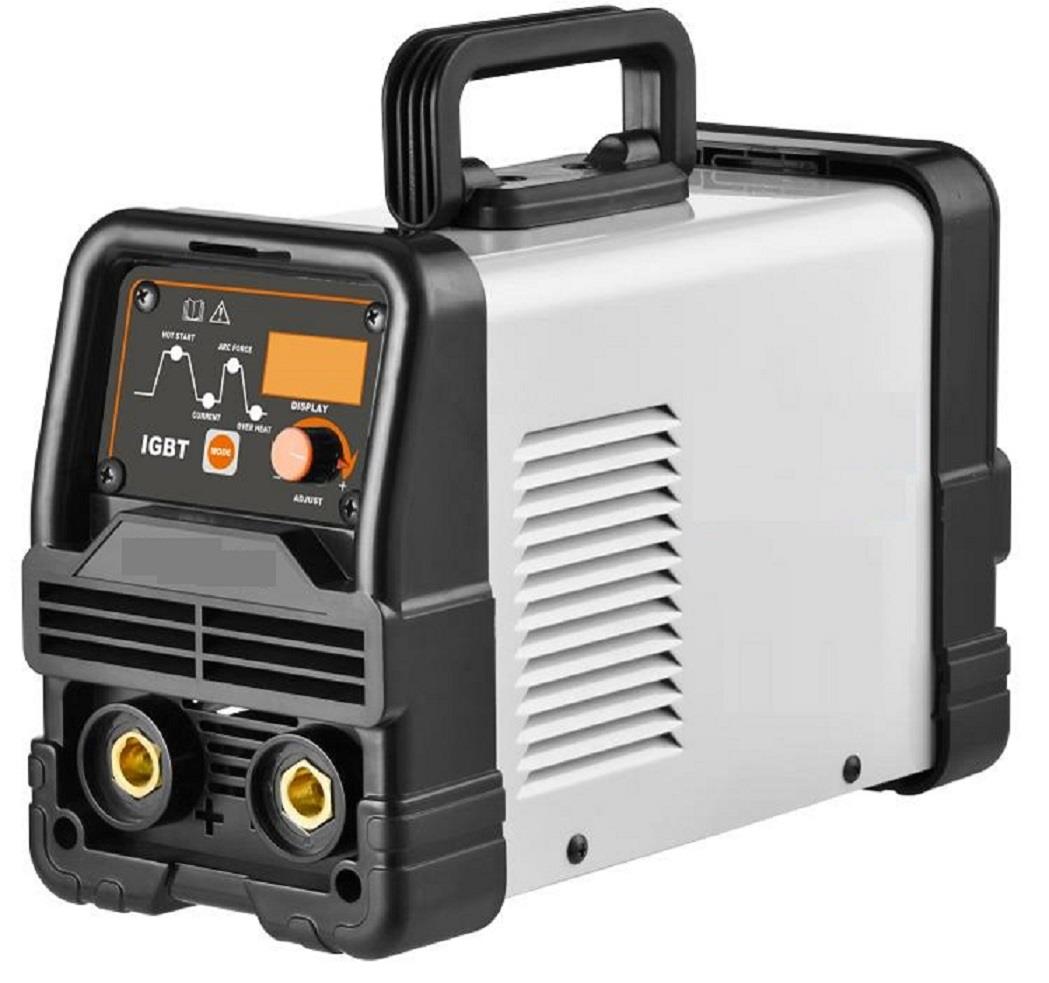

This professional-grade MMA welding machine utilizes advanced IGBT digital inverter technology to deliver stable, efficient, and reliable performance. Designed for versatility and ease of use, it features a multifunction control panel and integrated protections for safety and precision. Compact and lightweight, this welder is an ideal solution for both workshop assembly and on-site maintenance tasks.
Performance Metrics
Performance Highlights
180 A
Max Output Current
60 %
Rated Duty Cycle
5.7 KW
Rated Input Capacity
Technical Specifications
Technical Data
| Feature | Value |
|---|---|
| Input Voltage | 1PH 220V-230V / 110V-120V |
| Frequency | 50-60Hz |
| Current Range | 20-180A |
| Power Factor | cosφ0.8 |
| No-load Voltage | 65+/-5V |
| Electrode Size | 1.6-5.0mm |
| Protection Class | F |
| Insulation Degree | IP21S |
Advanced Features
- Key Features
- IGBT Inverter TechnologyHot StartAnti-stickArc ForceThermal Overload ProtectionAir Cooling Fan
Certifications
Standards Compliance
CEEMCROHSUL
In the Box
Included Components
- Welding holder (300A) with 1.8m cable
- Earth clamp (300A) with 1.2m cable
- Protective Mask
- Steel Brush
