IEC61032 IEC60529 Figure 11 Test Probe Pin
This test probe pin is designed for testing the accessibility of hazardous parts in electrical equipment. It verifies protection against access by a tool or wire, simulating conditions specified in the standards.
Technical Specifications
Overview
Precision Safety Testing Instrument

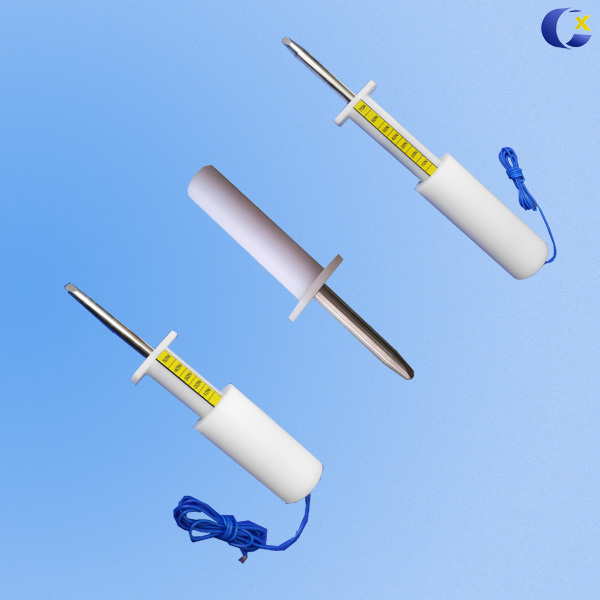

The Figure 11 Test Probe is a precision instrument engineered for testing the accessibility of hazardous parts in electrical equipment. Conforming to international standards including IEC61032 and IEC60529, this probe ensures compliance with rigorous safety regulations. It is designed to verify the protection of persons against access to hazardous parts and to assess the mechanical strength of openings in enclosures or internal barriers.
Standards & Compliance
- Compliance Standards
- IEC61032IEC60529IEC60065GB/T4208-2008UL
Technical Specifications

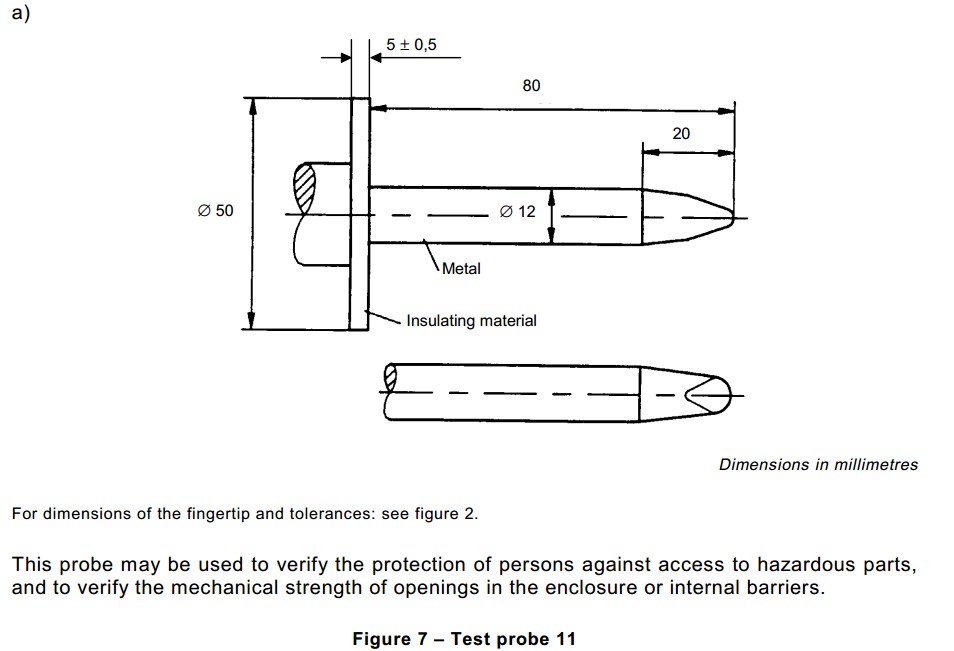

Dimensions
| Component | Value |
|---|---|
| Total Length | 80 mm |
| Tip Length | 20 mm |
| Cylindrical Body Diameter | Ø12 mm |
| Insulating Material Diameter | Ø50 mm |
| Insulating Material Thickness | 5 mm (±0.5 mm) |
Applied Force
50 N
Test Force
60 N
Test Force
70 N
Test Force
Construction Materials
- Stainless steel pin
- Insulated handle
