Hydraulic Rotary Actuator
This hydraulic rotary actuator is designed for supply pressures up to 200 bar. The actuator delivers thrust output up to 25000 N and is suitable for standard operating temperatures from -20°C to +80°C.
Technical Specifications
Overview

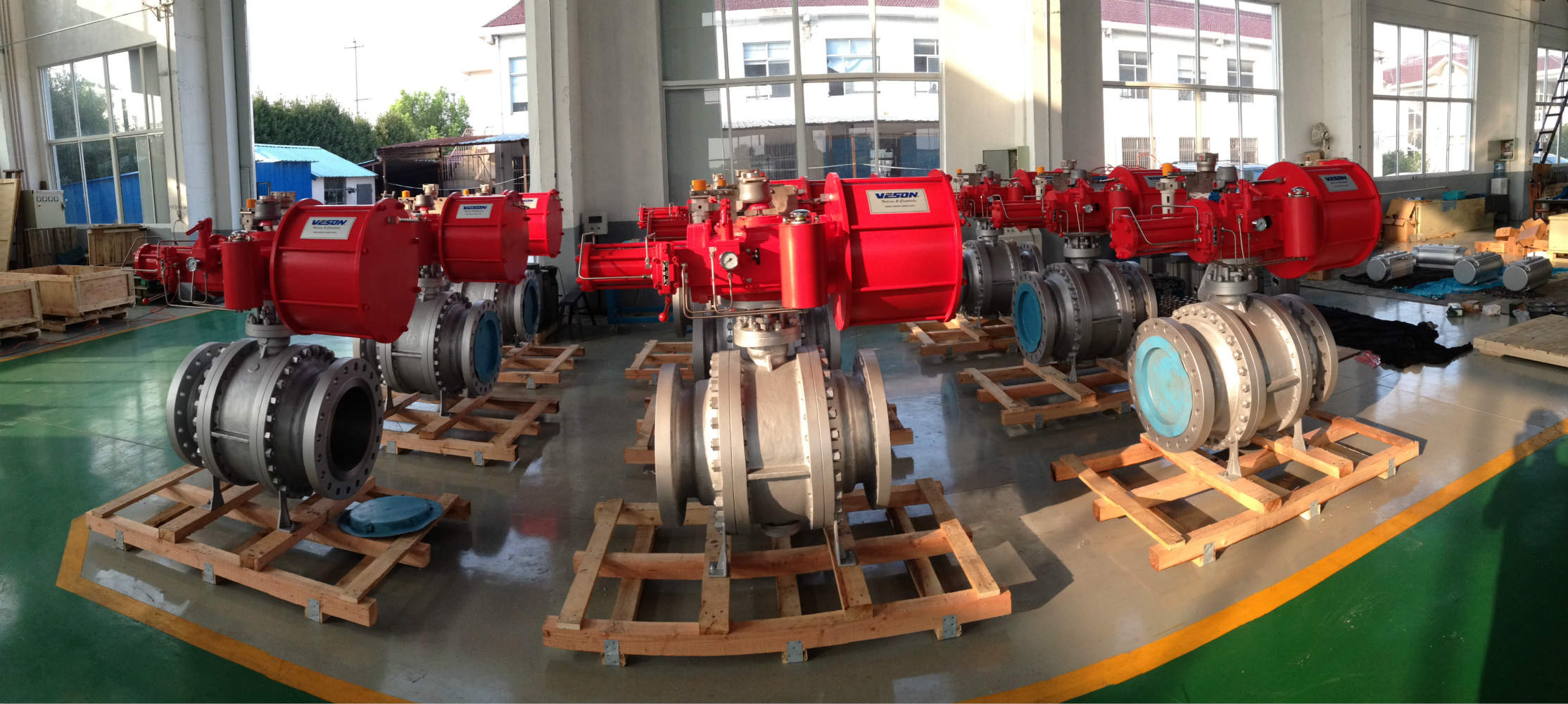

Industrial Hydraulic Rotary Actuator
The VSF series hydraulic rotary actuator is a robust, carbon steel-fabricated solution designed for high-performance industrial valve operation. Available in single and double-acting configurations, it offers exceptional reliability with a design pressure capacity of up to 200 bar. With integrated safety features, high-grade stainless steel components for corrosion resistance, and manual override facilities, it is engineered for demanding automated flow control applications.
Performance Metrics
Key Performance Metrics
200 bar
Max Design Supply Pressure
25,000 N
Max Thrust Output
71,753 N
Max Spring Thrust
Operational Conditions
- Operating Temperature Range
- -20°C to +80°C (Special low temp variant to -40°C available)
Technical Standards
- Regulatory & Design Standards
- ASME VIII div.1EN 13445ASTM A 320 L7ASTM B633 FeZn 12
Construction & Materials
Materials of Construction
| Component | Material |
|---|---|
| Main Structure | Carbon Steel |
| Piston Rod | 17.4 PH Stainless Steel |
| Tie Rods | ASTM A 320 L7 Alloy Steel |
| Seals | Dynamic floating O-ring |
