Horizontal Machining Center
This horizontal machining center is designed for demanding metal cutting applications requiring precision. Its robust structure ensures stability and accuracy during machining operations, while an advanced CNC control system allows for efficient programming.
Technical Specifications
Overview
High-Performance Horizontal Machining Center
This horizontal machining center is engineered for high-speed, high-rigidity, and high-precision metal cutting applications. Featuring a robust bed-type moving column structure with a T-shaped layout, it offers excellent thermal stability and accuracy. With advanced features like two-stage gear reduction for constant power and a high-precision rotary worktable, this machine is ideal for demanding manufacturing tasks in automotive and aerospace industries.
Performance Metrics
Key Performance Specs
Technical Specifications
Machining Capacity

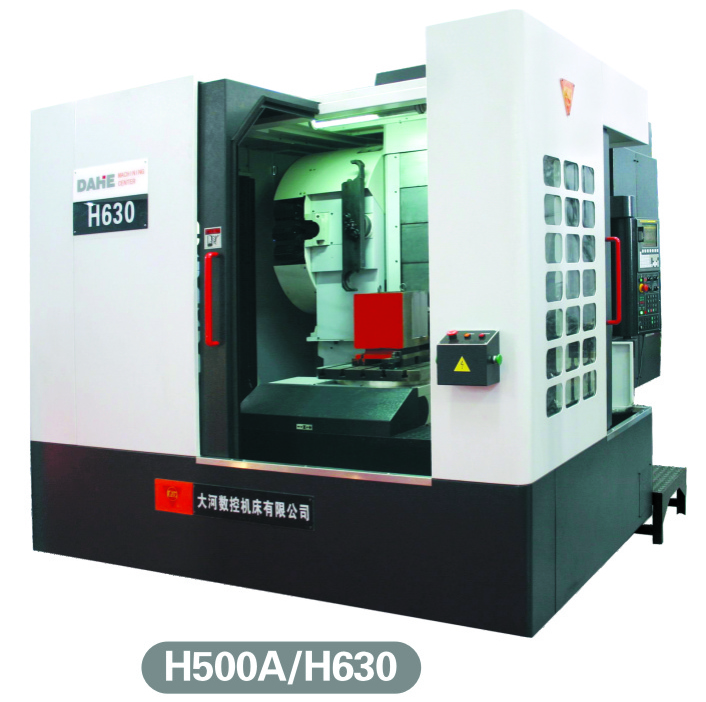

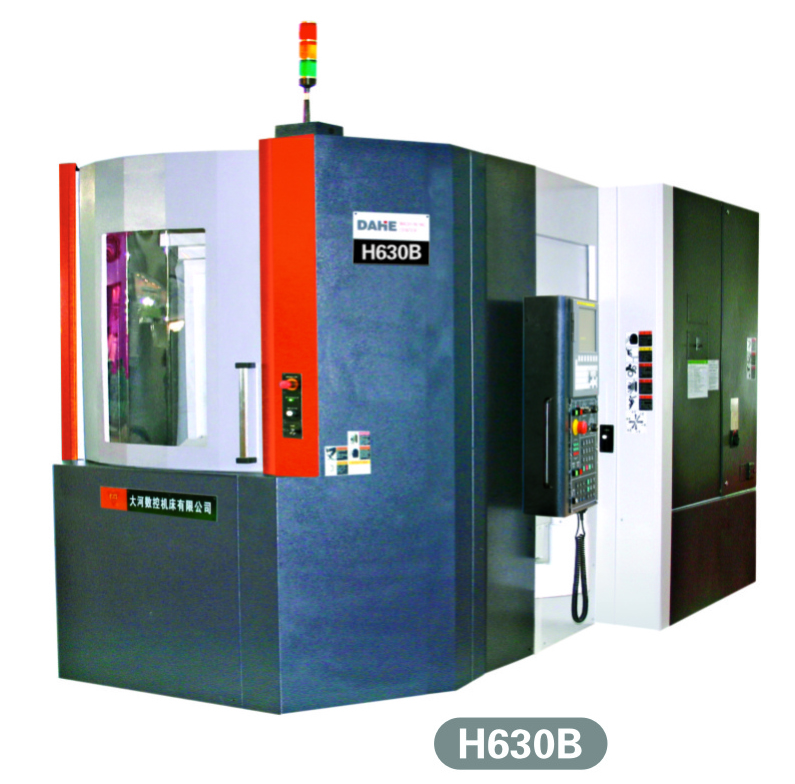

| Feature | H500A | H630B | H1100 |
|---|---|---|---|
| X-Axis Travel (mm) | 800 | 1050 | 2500 |
| Y-Axis Travel (mm) | 500 | 1000 | 1200 |
| Z-Axis Travel (mm) | 500 | 1000 | 1300 |
| Max Table Load (kg) | 500 | 1200 | 2500 |
Spindle Configuration
- Standard rotation speed: 6000 rpm
- Temperature-controlled spindle and spindle box
- Two-stage gear reduction system for constant power
- Available in direct drive, belt, and gear configurations
Features
- Key Machine Features
- High-rigidity structureThermal compensation designLinear rolling guidesHirth coupling indexingAutomated tool change
Automation
Flexible Manufacturing Integration
The system supports integration into flexible manufacturing systems (FMS). This allows for automated workpiece loading, transportation, and storage using material handling systems. This configuration enables unmanned operation and highly efficient production process management.
