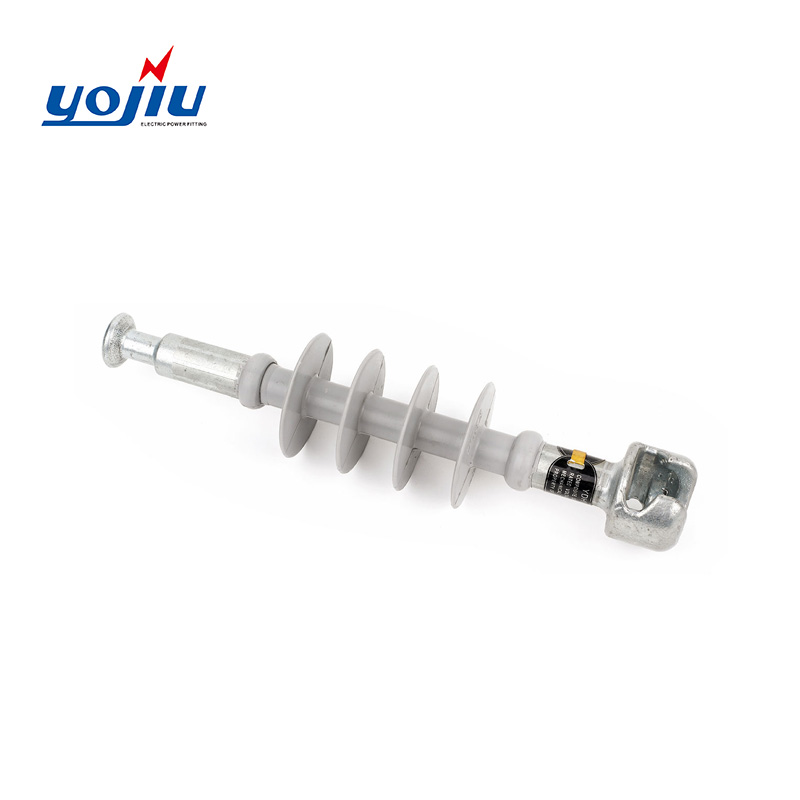

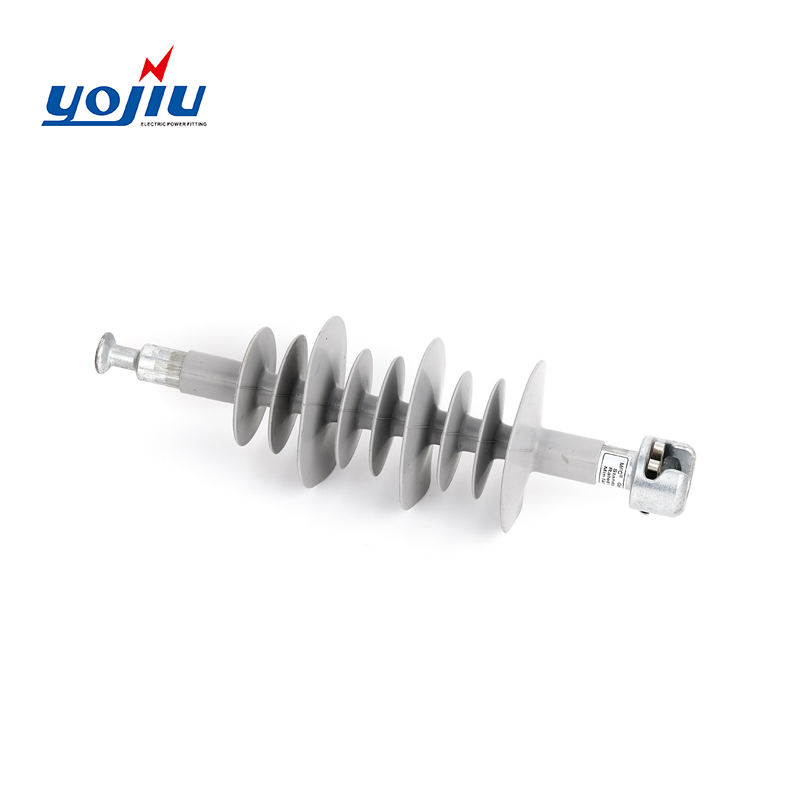

High Voltage Polymer Insulator
This high-voltage polymer insulator is designed for electrical power transmission and distribution systems. It provides electrical insulation and mechanical support for conductors, ensuring reliable operation in overhead lines.
Technical Specifications
Product Overview
High-Performance Polymer Insulation
This composite tension and suspension insulator is engineered for reliable electrical power transmission and distribution. It features a robust core rod chemically bonded to a high-temperature vulcanized (HTV) silicone rubber housing, ensuring superior interface strength. Designed for durability, the unit offers excellent resistance to weathering, UV radiation, and pollution, making it suitable for demanding overhead line environments.
Construction Materials
- Core Material
- Epoxy & glass fiber (ECR or FRP type)
- Weather Sheds Material
- HTV Silicone
- End Fitting Material
- #45 Forged Steel
- Galvanization Thickness
- 86 μm
Technical Standards
- Compliance
- IEC61109
Design Features
Key Features
- Ribbed design for increased creepage distance
- High interface strength between housing and core
- Hot dip galvanized end fittings
- Excellent UV and pollution resistance
- Sealing Technique
- Embedded in HTV silicone rubber
- Bonding Method
- Chemical bonding
