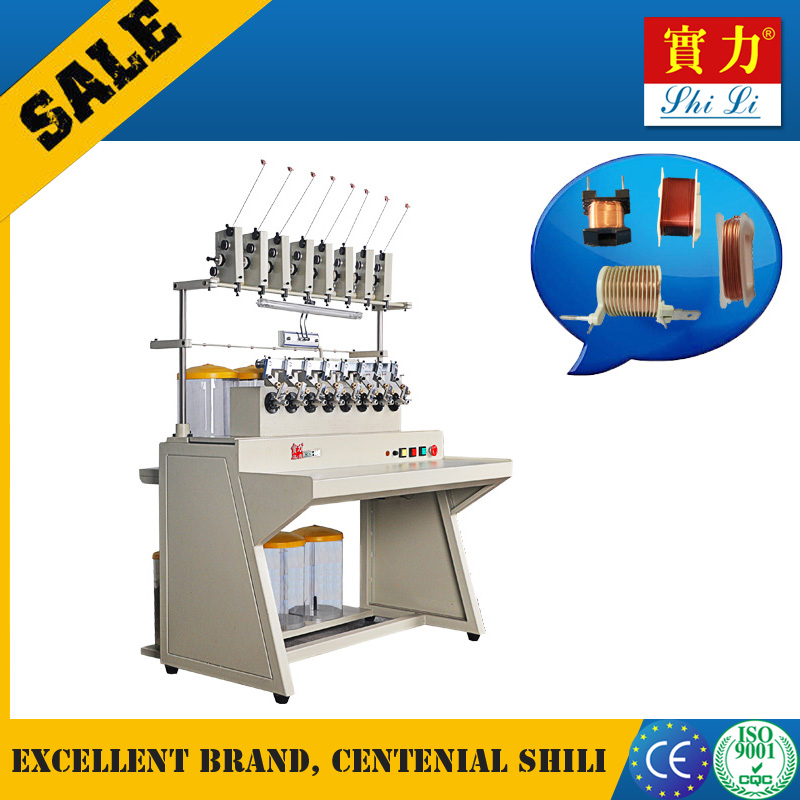

High Speed Multi-Head Coil Winding Machine
This high-speed winding machine is designed for efficient and precise coil production. It winds multiple products simultaneously, enhancing time efficiency and productivity.
Technical Specifications
Overview
High-Efficiency Multi-Head Winding
This high-speed winding machine is engineered for the small coil and transformer industry, prioritizing high production throughput without sacrificing precision. Equipped with a 32-bit controller chip and high-quality imported components, it offers superior reliability, low noise operation, and stable winding performance. The system supports simultaneous winding of 8 groups, ensuring significant time efficiency and consistent product quality.
Performance Metrics
Maximum Winding Speed
10,000 turn/min
Max Speed
- Spindle Count
- 8
Technical Specifications
- Wire Size Range
- 0.03 - 0.2 mm
- Loop Diameter
- 56 mm
- Spindle Pitch
- 70 mm
- Winder Width
- 60 mm
- Max Wire Distance
- 9.99 mm
Hardware & Components
Motor Configuration
- Spindle Motor: Phase Motor + AC Drive
- Winder Motor: Stepping Motor
- Premium Components
- Japan NSK BearingsJapan NTN BearingsJapan BANDO BeltsJapan GATES BeltsTaiwan TBI Ball Screws
Physical Dimensions
Machine Dimensions
| Metric | Value |
|---|---|
| Machine Size | 1080 x 800 x 1100 mm |
| Package Size | 1160 x 890 x 1030 mm |
| Net Weight | 167 kg |
| Gross Weight | 227 kg |
Applications
Suitable Applications
EE TransformerEI TransformerStepping MotorRelaySwitch Power TransformerAuto ABS
Certifications
- Certifications
- CEISO 9001CQC
