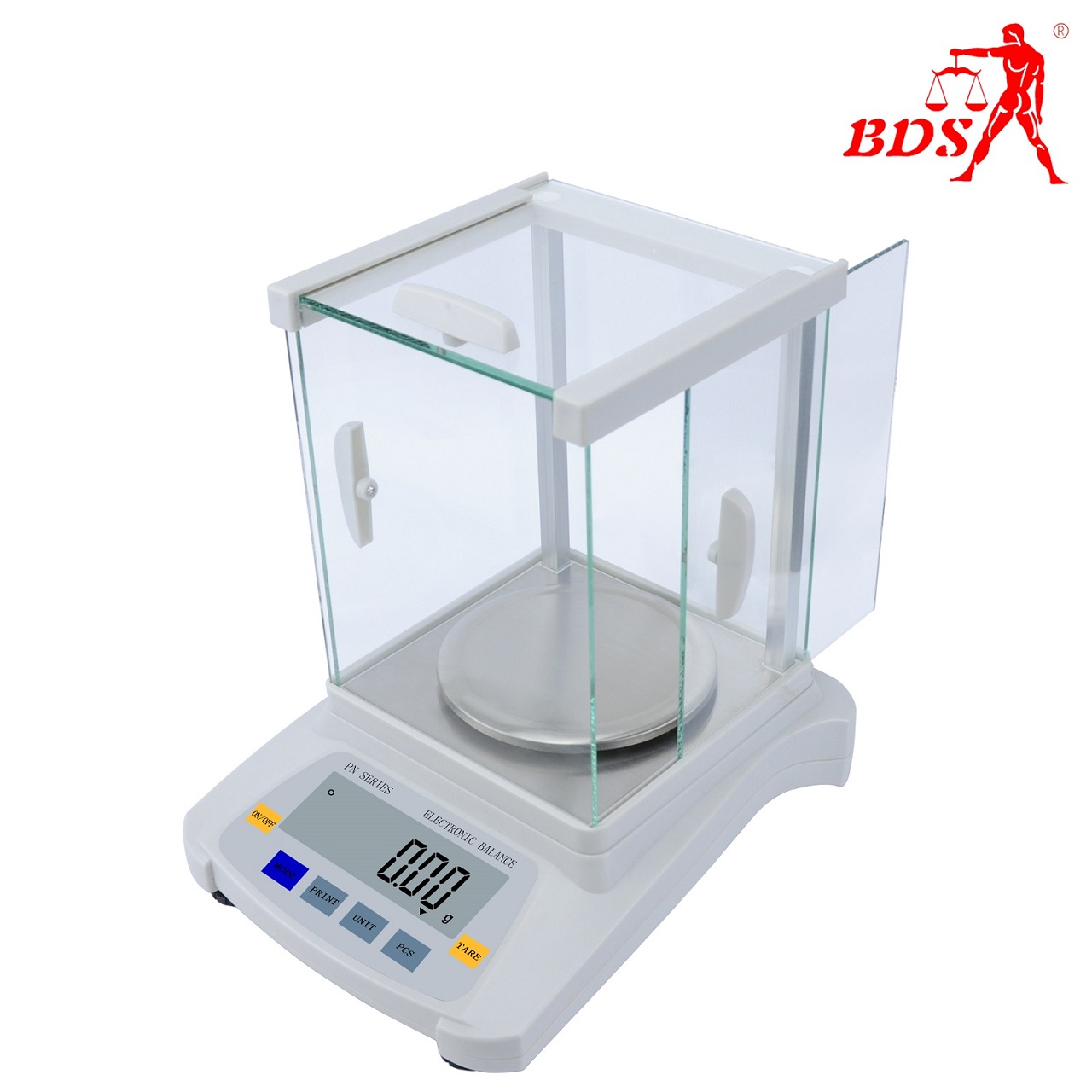

High-Precision Electronic Analytical Balance
This high-precision electronic analytical balance is designed for accurate and precise weighing in laboratory environments. It features a draft shield enclosure to minimize environmental disturbances, ensuring stable and reliable measurements.
Technical Specifications
Overview
High-Precision Laboratory Weighing Solution
The BDS-PN series is a high-precision electronic analytical balance designed for professional laboratory, research, and quality control environments. Featuring an advanced high-precision sensor and robust anti-overload protection, it ensures stable and reliable measurements even in demanding settings. The balance includes a transparent draft shield to minimize environmental interference and offers versatile functionality including piece counting and multiple unit conversions.
Performance Metrics
Key Performance Metrics
0.01 g
Precision
600 g
Max Capacity
1.4 kg
Net Weight
Technical Specifications
Available Capacity Options
- 100g / 0.01g
- 200g / 0.01g
- 300g / 0.01g
- 500g / 0.01g
- 600g / 0.01g
- Supported Units
- gctozoztdwttolalbtmr
- Operating Temperature
- 10-60°C
Physical Characteristics
Physical Dimensions
| Component | Measurement |
|---|---|
| Product Size | 270 x 170 x 80 mm |
| Pan Diameter | 130 mm |
| Base Width | 198 mm |
| Shield Height | 185 mm |
Features & Power
Power Supply
- Rechargeable Battery
- Power Adapter
Core Functions
Anti-OverloadPower Saving ModePiece Counting (PCS)Tare FunctionUnit Conversion
- Display
- LCD with optional blue backlight
Logistics
- Packaging
- 6 units per carton
