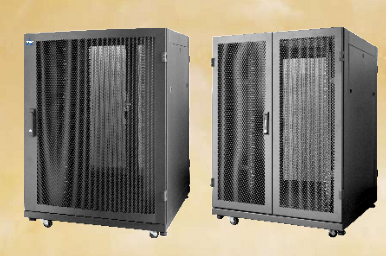

High-Density Network Cabinet
This high-density network cabinet is designed for housing servers and networking equipment. It features ventilated doors, adjustable mounting rails, and cable management options.
Technical Specifications
Product Overview
High-Density Network Cabinet
This high-density network cabinet is engineered for the secure housing of servers, networking equipment, and other rack-mountable devices. Designed for data centers and IT environments, it features a sturdy frame, advanced thermal management through ventilated doors, and adjustable mounting rails for flexible equipment configuration. The unit also includes mobility features like wheels and adjustable feet, ensuring stability and ease of installation in demanding infrastructure applications.
Physical Specifications
Available Depths
- 600
- 800
- 1,000
Height Reference
1,158 mm
22U Height
1,383 mm
27U Height
1,605 mm
32U Height
1,828 mm
37U Height
2,005 mm
42U Height
2,272 mm
47U Height
- Available Rack Units (U)
- 22U27U32U37U42U47U
Model Matrix
Model Number Reference
| Capacity | Width 600mm | Width 800mm | Width 1000mm |
|---|---|---|---|
| 47U | FCC-B6647 | FCC-B8647 | FCC-B8047 |
| 42U | FCC-B6642 | FCC-B8642 | FCC-B8042 |
| 37U | FCC-B6637 | FCC-B8637 | FCC-B8037 |
| 32U | FCC-B6632 | FCC-B8632 | FCC-B8032 |
| 27U | FCC-B6627 | FCC-B8627 | FCC-B8027 |
| 22U | FCC-B6622 | FCC-B8622 | FCC-B8022 |
Features
Key Features
- Lockable security doors
- Ventilated design for thermal management
- Adjustable mounting rails
- Integrated cable management
- Mobility wheels included
- Adjustable leveling feet
