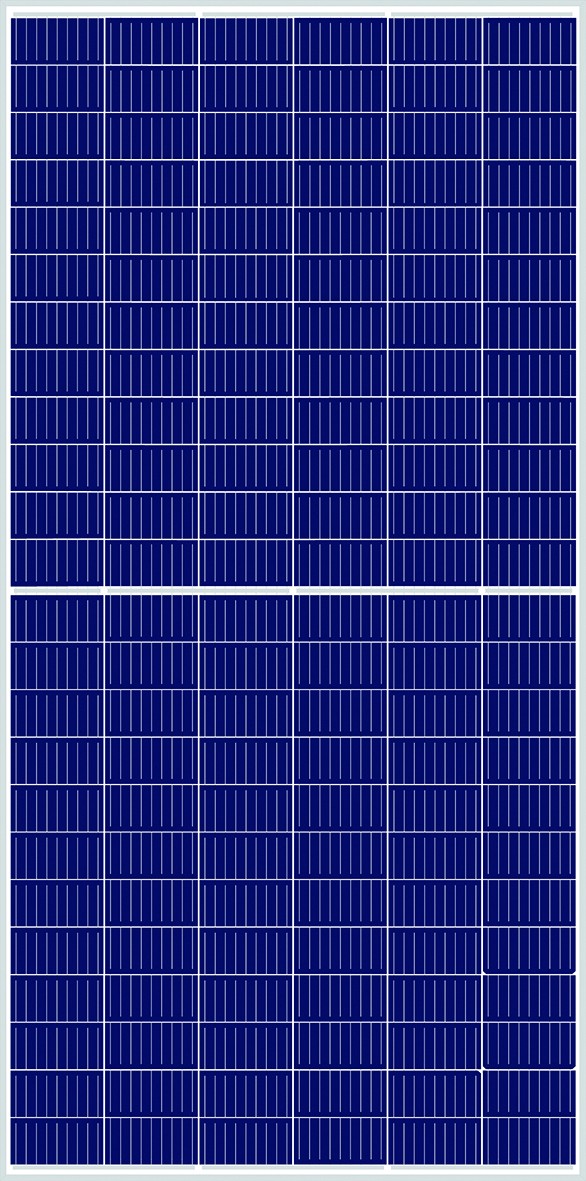

Half-Cell Polycrystalline Solar Panel
This half-cell polycrystalline solar panel provides reliable and stable performance through optimized BOM management. The half-cell design reduces shadow effects and energy loss, making it suitable for diverse environments.
Technical Specifications
Product Overview
High-Efficiency Half-Cell Module
This high-efficiency polycrystalline solar module features an advanced half-cell design that effectively reduces shadow effects and energy loss, ensuring reliable performance in diverse environmental conditions. Engineered for durability, it has passed rigorous third-party testing for salt spray, ammonia, and dust resistance, making it suitable for a wide range of installation scenarios. The module demonstrates extremely low degradation rates, providing long-term power generation benefits for residential, commercial, and utility-scale solar projects.
- Certifications
- TUVIEC/EN 61215IEC/EN 61730ISO 9001ISO 14001OHSAS 18001
Mechanical Parameters
Mechanical Specifications
| Parameter | Value |
|---|---|
| Cell Type | 158.75*79.375 Poly |
| Max Wind Load | 2400 Pa |
| Max Snow Load | 5400 Pa |
| Junction Box Rating | IP68 |
| Fire Rating | Class C |
| Max Series Fuse | 20 A |
Physical Characteristics
Electrical Parameters
Temperature Coefficients
- NMOT: 44±2°C
- Voc Coefficient: -0.31%/°C
- Isc Coefficient: 0.05%/°C
- Pm Coefficient: -0.38%/°C
