Galvanized Steel Guy End Grip for Stay Wire
This galvanized steel guy end grip is designed for securing stay wires in electrical transmission and distribution applications. It provides a strong and secure connection, enhancing the stability and safety of electrical infrastructure.
Technical Specifications
Product Overview

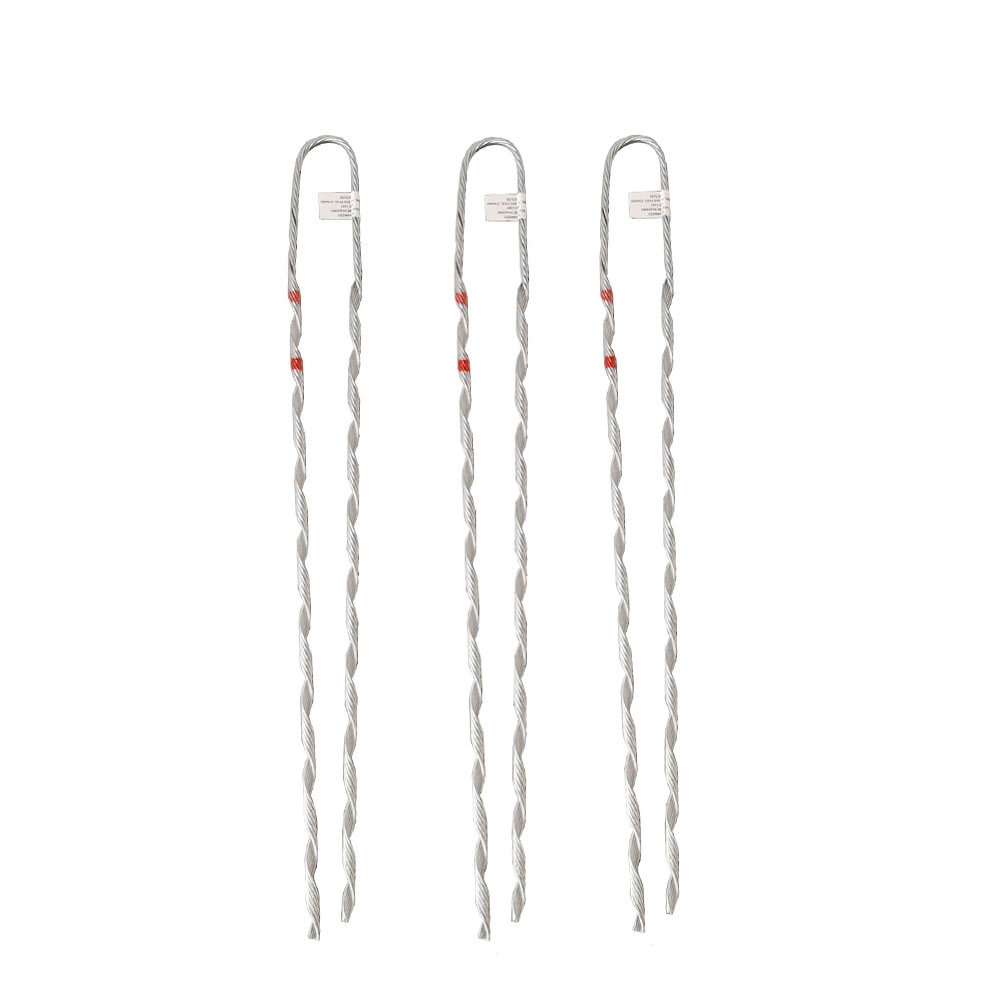

Galvanized Steel Guy End Grip

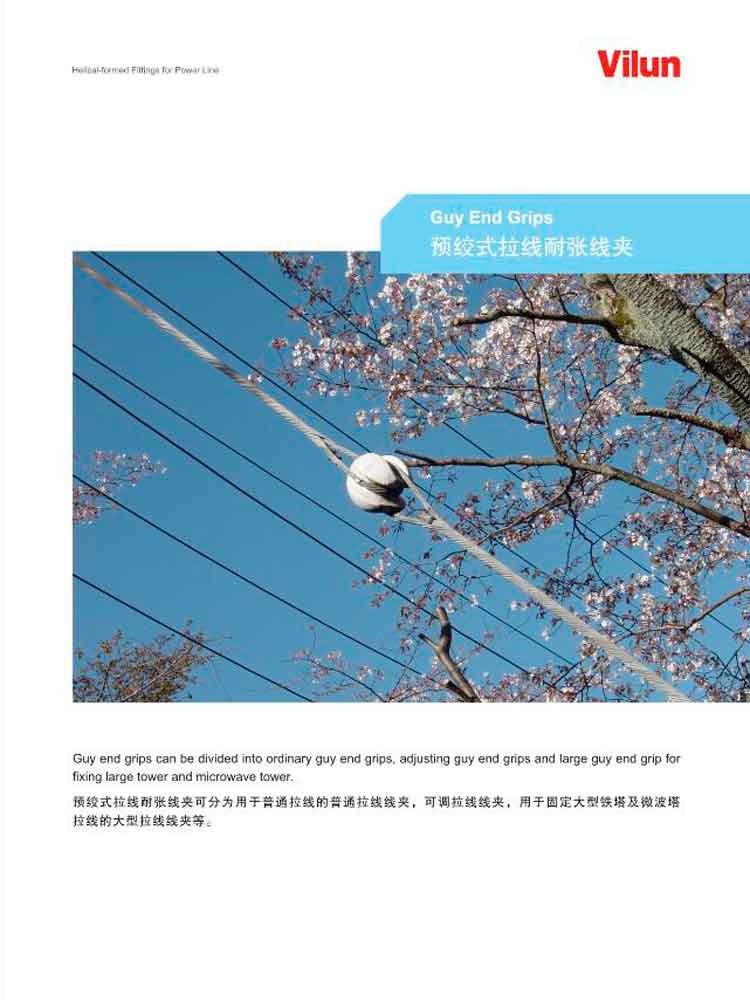

These guy end grips are designed for secure and reliable termination of stay wires in electrical transmission and distribution systems. They are intended for use on single wood poles and are constructed from materials matching the fixed strand wires to ensure longevity and compatibility. Available in various types including ordinary, adjusting, and large formats for microwave towers, these grips provide excellent holding strength and corrosion resistance for demanding infrastructure environments.
Technical Specifications

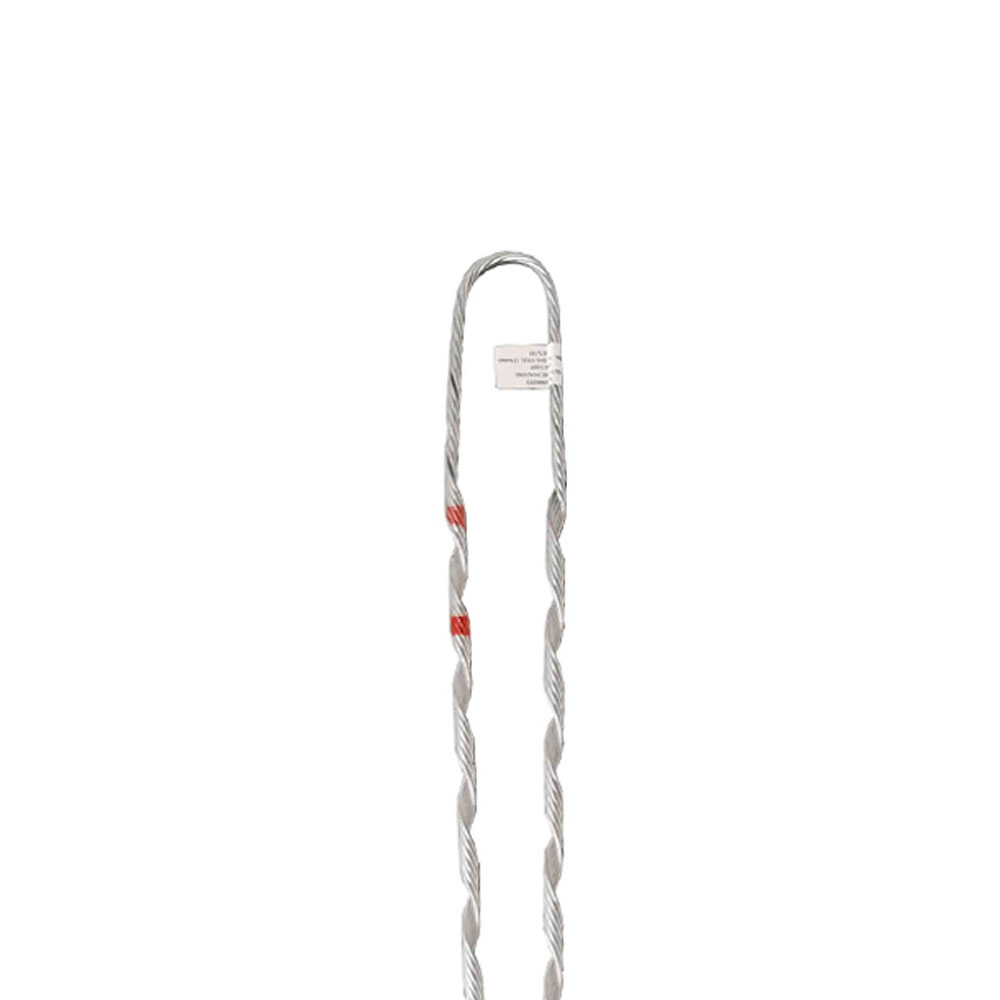

GGD-1107 Model Details
9.04 mm
Min Strand Diameter
9.14 mm
Max Strand Diameter
889 mm
Length
50 pcs
Units per Carton
23.2 kg
Carton Weight
Standard Guy End Grip Specifications
| Model | Strand (Inches) | Diameter (mm) | Length (mm) | Color Code |
|---|---|---|---|---|
| GGD-1102 | 3/16 | 4.72 | 508 | Red |
| GGD-1103 | 7/32 | 4.95 | 610 | Green |
| GGD-1104 | 1/4 | 6.58 | 635 | Yellow |
| GGD-1105 | 9/32 | 7.09 | 711 | Blue |
| GGD-1106 | 5/16 | 7.92 | 787 | Black |
| GGD-1107 | 3/8 | 9.14 | 889 | Orange |
| GGD-1108 | 7/16 | 11.05 | 965 | Green |
- Compatible Applications
- Ordinary Guy EndAdjusting Guy EndMicrowave Tower FixationDistribution ConstructionSingle Wood Poles
