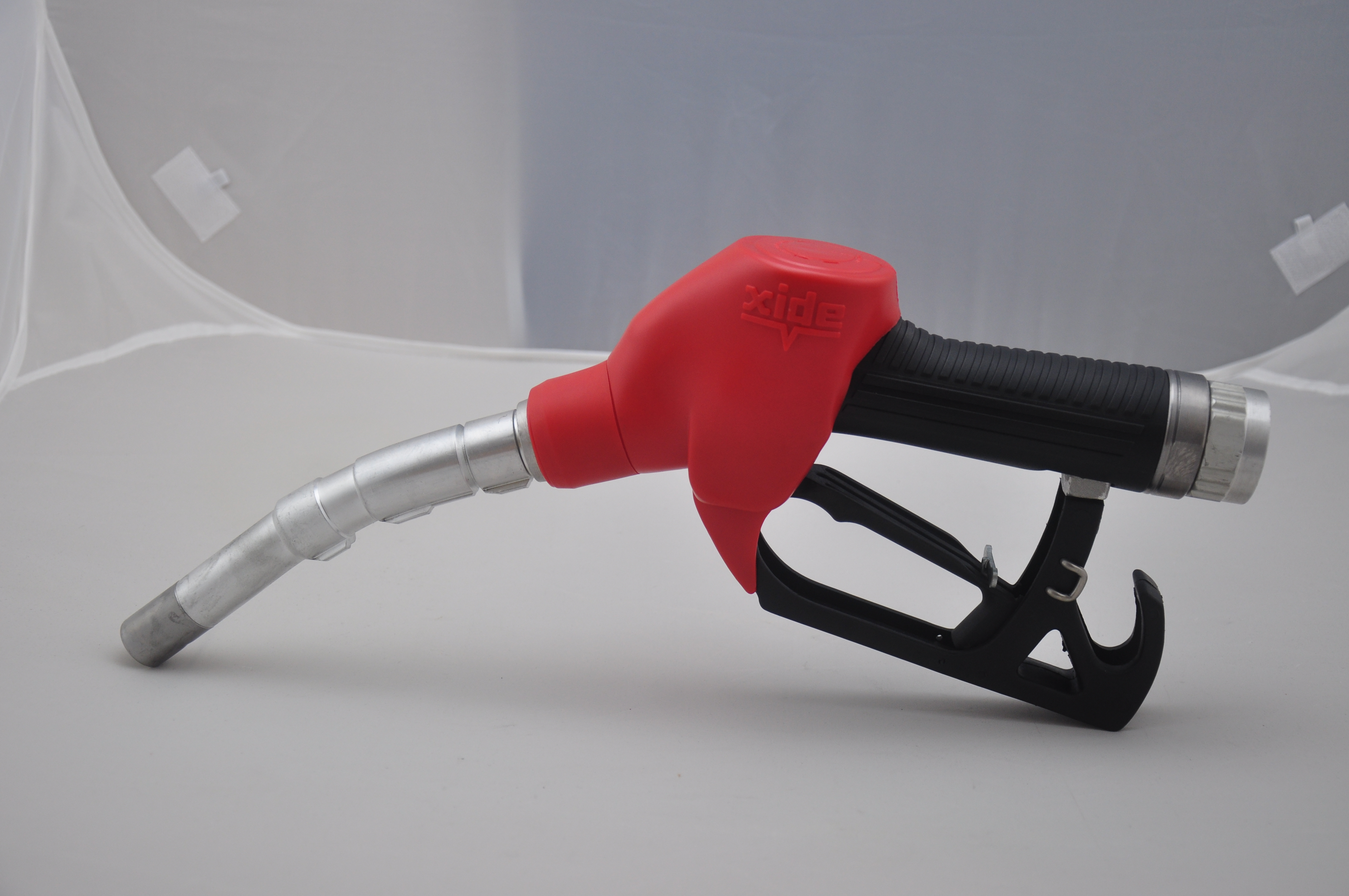

Fuel Dispensing Nozzle with Automatic Shut-Off
This fuel dispensing nozzle features an automatic shut-off mechanism to prevent overfilling and spillage. It is constructed from durable materials with an ergonomic handle and integrated splash guard.
Technical Specifications
Product Overview
Automatic Fuel Dispensing Nozzle
This automatic fuel dispensing nozzle is designed for efficient and clean refueling, featuring an automatic shut-off mechanism that triggers when the spout touches the liquid surface. This prevents overflow, keeping the fueling area clean and safe. The nozzle is built for durability and ease of use, with multi-position flow rate settings to accommodate different fueling requirements.
Technical Specifications
Flow Rate Performance
| Model | Spout O.D. (mm) | Max Flow (L/min) | Min Shut-off (L/min) |
|---|---|---|---|
| XIDE-80 | 24 | 65 | 5 |
| XIDE-120 | 31 | 120 | 10 |
Inlet Sizes
- BSPF 3/4"
- BSPT 3/4"
- BSPF 1"
- BSPT 1"
- Compatible Fuels
- DieselGasoline
Operation & Maintenance
Maintenance Guidelines
- Keep the hole on the bottom of the spout unblocked for proper function
- Return the nozzle to the boot after service to prevent damage
- No lubrication required
Installation Instructions
Install and operate directly; lubrication is not necessary. When connecting the nozzle to the hose, use a wrench to tighten the coupling, but do not use shaft tools to lock the level. If using NPT threads, apply a small amount of sealant; do not use Teflon tape to avoid damaging the swivel.
