Fuel Dispenser with High Security
This fuel dispenser provides high security and a clear white backlight display. It includes an intelligent voice broadcast system and is waterproof and dustproof.
Technical Specifications
Product Overview
High-Security Fuel Dispensing Solution
The X MAN series fuel dispenser is a robust and reliable system engineered for commercial and industrial fueling environments. It features an intelligent voice broadcast system, a high-visibility white backlight display, and a design that is both waterproof and dustproof for long-term durability. With integrated security features and high-precision metering, it offers an efficient and secure solution for gas stations and fleet management applications.
Key Features & Options
Available Upgrades
- International Solenoid Valve
- International Brand Nozzle Breakaway and Swivel
- English Receipt Printer
- Integrated Payment Terminal
- Stainless Steel Arm Side and Canopy
- Built-in Features
- High SecurityWhite BacklightVoice Broadcast SystemWaterproofDustproof

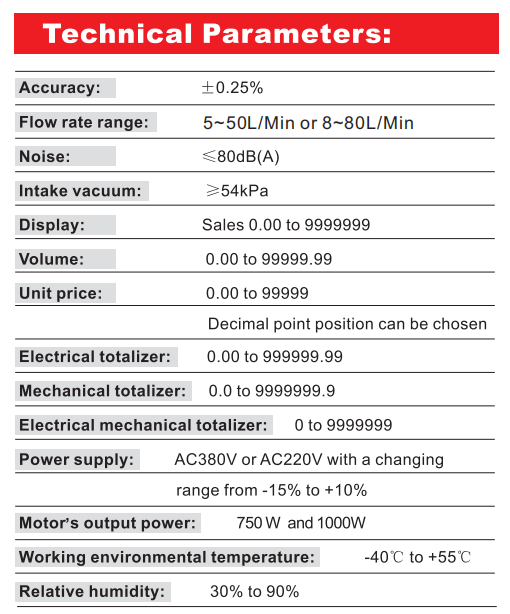

Technical Performance
Featured Metrics
0.25 %
Accuracy
80 dB(A)
Maximum Noise Level
54 kPa
Min Intake Vacuum
1,000 W
Max Motor Power
- Environmental Ratings
- -40°C to +55°C30% to 90% Humidity

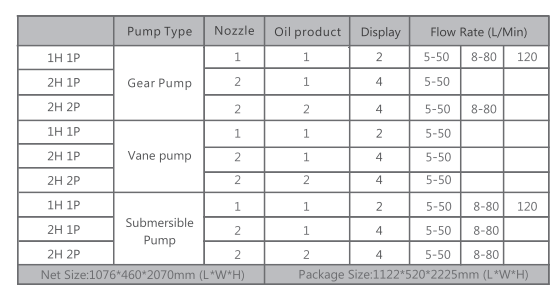

Configuration Table
Pump and Nozzle Configurations
| Pump Type | Configuration | Nozzles | Displays |
|---|---|---|---|
| Gear/Vane/Submersible | 1H 1P | 1 | 2 |
| Gear/Vane/Submersible | 2H 1P | 2 | 4 |
| Gear/Vane/Submersible | 2H 2P | 2 | 4 |
Physical Dimensions
- Net Size: 1076 x 460 x 2070mm
- Package Size: 1122 x 520 x 2225mm
