Fuel Dispenser with Electronic Technology
This fuel dispenser uses advanced electronic technology for increased safety and stability. Its high-precision flow meter is designed for outstanding performance and a long lifecycle.
Technical Specifications
Overview
Advanced Fuel Dispensing Technology
This fuel dispenser incorporates the latest electronic technology, featuring a high-stability 6200 main board and an intelligent voice broadcast system. Designed for durability and precision, it offers moisture-proof and rust-proof protection, ensuring reliable performance in harsh environments ranging from -40°C to 55°C. With adjustable display brightness and easy POS integration, this unit is engineered to meet the demanding requirements of modern gas stations and commercial fueling facilities.
Performance Metrics
Measurement Accuracy
0.25 %
Accuracy
54 KPA
Intake Vacuum
- Flow Rate Range
- 5-50 or 8-80 L/Min
- Noise Level
- 80 dB(A)
Technical Specifications
Motor Output Power
- 750
- 1,000
- Power Supply
- AC380V or AC220V (-15% to +10%)
- Operating Temperature
- -40°C to +55°C
Display & Interface
Display Ranges
| Metric | Range |
|---|---|
| Sales | 0.00 to 9999999 |
| Volume | 0.00 to 99999.99 |
| Unit Price | 0.00 to 9999 |
| Electrical Totalizer | 0.00 to 99999999.99 |
| Mechanical Totalizer | 0.00 to 999999 |
Configuration Options

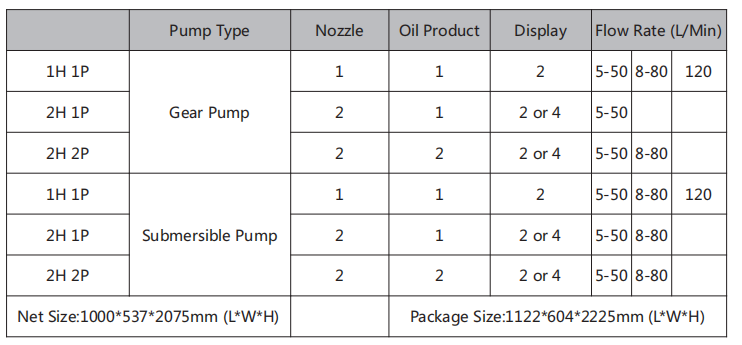

N MAN Series Configuration Table
| Pump Type | Nozzle Qty | Oil Products | Display Options |
|---|---|---|---|
| Gear Pump | 1 | 1 | 2 |
| Gear Pump | 2 | 1 | 2 or 4 |
| Gear Pump | 2 | 2 | 2 or 4 |
| Submersible Pump | 1 | 1 | 2 |
| Submersible Pump | 2 | 1 | 2 or 4 |
| Submersible Pump | 2 | 2 | 2 or 4 |
Physical Dimensions
Physical Dimensions
| Type | Dimensions (L*W*H) |
|---|---|
| Net Size | 1000*537*2075mm |
| Package Size | 1122*604*2225mm |
Key Features
- Product Features
- WaterproofDustproofIntelligent Voice BroadcastPrinter Bill SystemAdjustable Display BrightnessPOS Smart Upgrade
